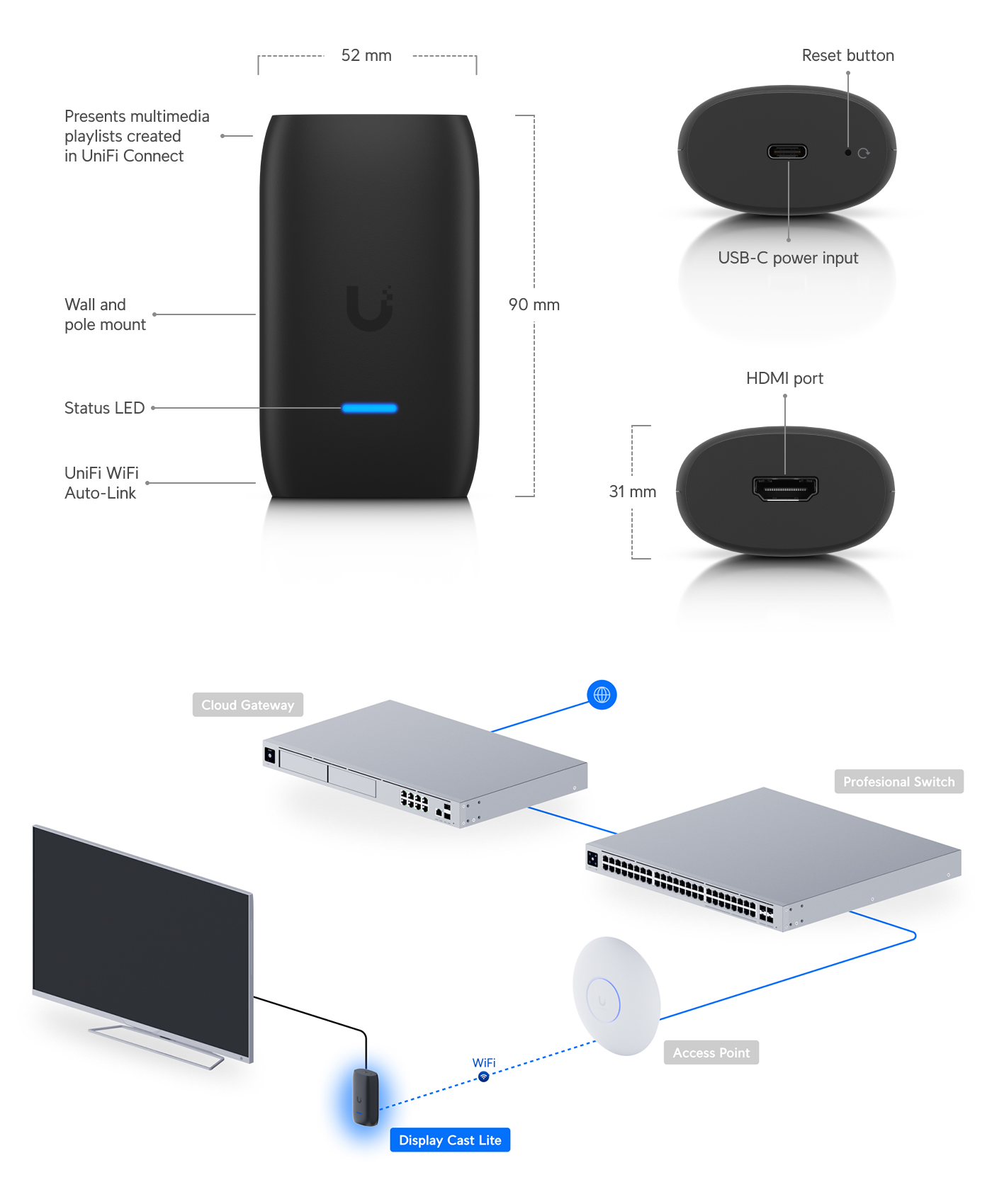

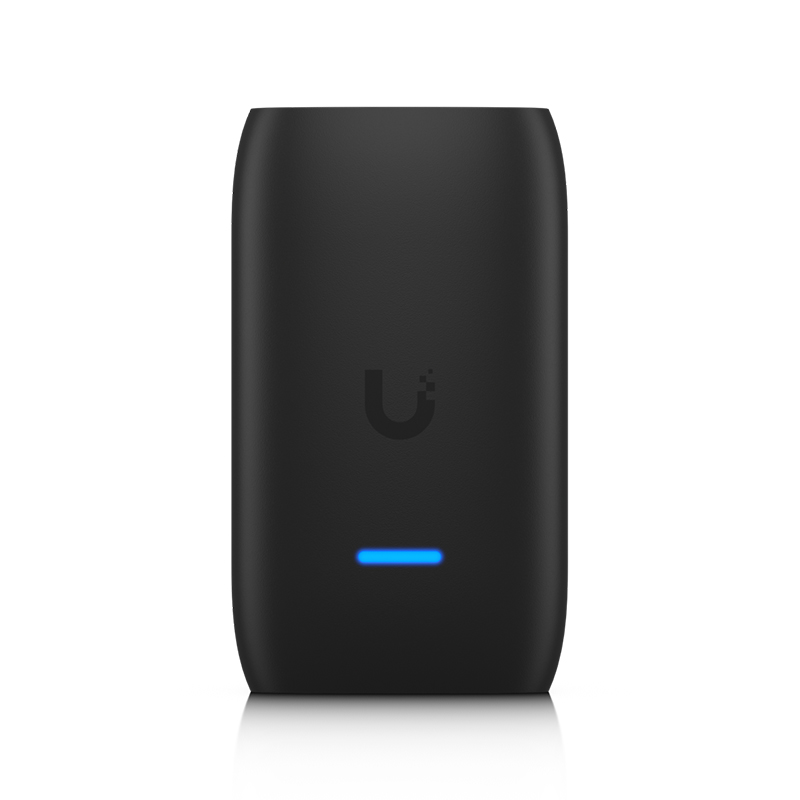

Ubiquiti UniFi Display Cast Lite (UC-Cast-Lite)

Dimensions

Without mount: 90 x 52 x 31 mm

(3.5 x 2.1 x 1.2")

With mount: 92.1 x 56.3 x 40.8 mm

(3.6 x 2.2 x 1.6")

Display Output

(1) HDMI port

Video Content Support

480p / 720p / 1080p

UniFi Application Suite

Connect: ✓

MECHANICAL

Weight

Without mount: 160 g (5.6 oz)

With mount: 180 g (6.3 oz)

Pole Mount Diameter

1~2" (25–50 mm)

HARDWARE

Processor

Quad-Core Arm® Cortex®-A55, 1.9 GHz

Memory

Storage: 16 GB

RAM: 2 GB

Power Method

(1) USB Type-C 5V DC, 1A

Max. Power Consumption

5W

Connectivity

WiFi 2.4G, BW 20/40 MHz

WiFi 5G, BW 20/40/80 MHz

WiFi Standards

802.11 a/b/g/n/ac/ax

LEDs

System: White/blue

Buttons

(1) Factory reset

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

20 to 90% noncondensing

Certifications

CE, FCC, IC, Wi-Fi CERTIFIED

UL 62368-1, CSA C22.2 No. 62368-1

NDAA Compliant

✓

SOFTWARE

Management Application

UniFi Connect Web: Version 3.17.0 and later

UniFi Connect iOS™ and Android™: Version 2.26.0 and later
