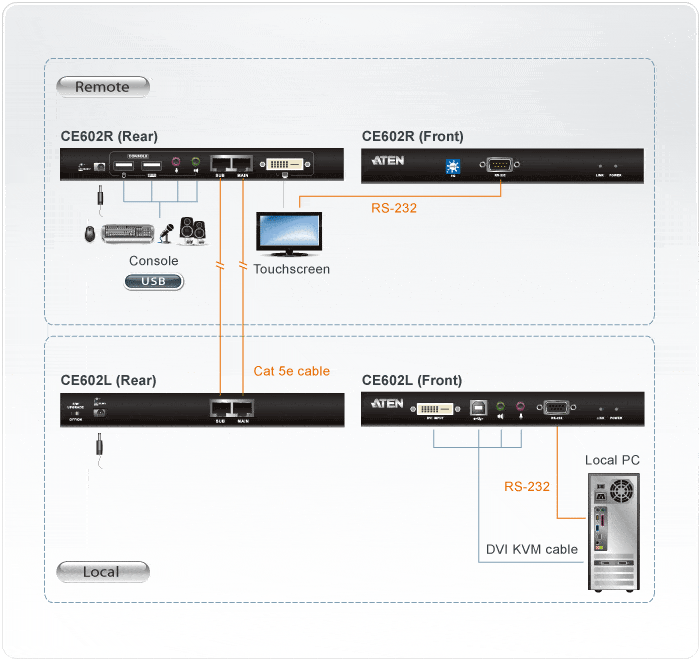

The CE602 is a DVI Dual Link and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer system from a remote console, the CE602 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example. This allows users to deploy system equipment over large distances.
     The CE602 can support up to 2560 x 1600 (DVI Dual Link) resolution. It uses two Cat 5e cables for HDCP, RS-232, microphone and dual link signals. You can also use just one Cat 5e cable if using single link connections.



  • Local and Remote Units connect at distances up to 60 m using Cat 5e cable

  • Allows access to a computer or KVM installation from a remote console (up to 60 m)

  • Supports DVI-D interface and allows transmission of DVI duallink signals

  • Features ATEN technology that allows A/V transmission over one cat 5e cable

  • The 2nd Cat 5e cable is used for HDCP, RS-232, microphone and dual link signals

  • Manual compensation control to adjust signal strength in order to compensate for distance

  • RS-232 serial ports connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate 115200 bps)

  • Audio Enabled supports stereo speakers and microphone

  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)

  • Supports Wide Screen formats

  • Superior video quality of up to 2560 x 1600 @ 60 Hz (DVI Dual Link) at 40 m; 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m get an excellent, crisp image on your screen over long distance transmissions

  • Hot pluggable

  • Rack mountable

  • Easy to install no software required connecting cables to the devices is all it takes

  • Firmware upgrade



Package Contents

  • 1x CE602L DVI KVM Extender (Local Unit)

  • 1x CE602R DVI KVM Extender (Remote Unit)

  • 1x 1.8 m USB DVI-D Dual Link KVM Cable Set

  • 2x Power Adapters

  • 1x Mounting Kit

  • 1x User Instructions

KVM PortsVideo1 x DVI-D Female (White)Speakers1 x Mini Stereo Jack          Female (Green)Mic.1 x Mini Stereo Jack          Female (Pink)USB1 x USB Type B Female          (White)
RS-2321 x DB-9 Female (Black)
Power1 x DC Jack
Sub/Main2 x RJ-45 Female (Black)
LEDsLink 1 (Green)
   Power 1 (Green)
SwitchEQ Switch N/A
   Firmware Upgrade 1 x Slide Switch
EmulationKeyboard/Mouse USB
Video2560 x 1600 @ 60Hz (40 m)
   1920 x 1200 @ 60Hz (30 m);
   1024 x 768 @ 60Hz (60 m);
Power ConsumptionDC 5.3V/3.18 W
EnvironmentOperating Temp. 050°C
   Storage Temp. -2060°C
   Humidity 080% RH, Non-condensing
Physical PropertiesHousing Metal
   Weight 0.48 kg
   Dimensions
   (L x W x H)20.20x8.68x2.50cm
Note* The specification and pictures are subject to change without notice.
   * All trademarks and logos are the properties of their respective holders.


* Specifications are subject to change without notice.
* Specifications may vary.
* The product picture(s) is only for your reference, it may differ from the actual product.
