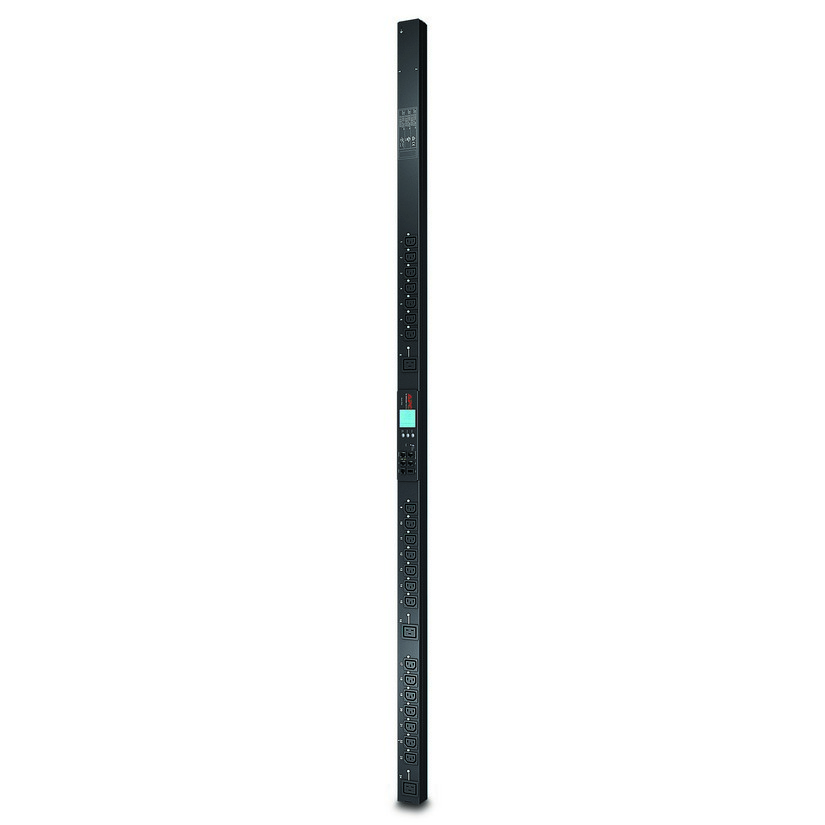

Rack PDU 2G, Switched, ZeroU, 20A/208V, 16A/230V, (21) C13 & (3) C19
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
Includes: Installation guide , Rack Mounting brackets , Safety guide , Serial configuration cable
|
|
Official Product Link |
Open Link |
| Output |
Nominal Output Voltage
100V , 200V , 208V , 230V
Overload Protection
No
Maximum Total Current Draw
16
Output Connections
(3) IEC 320 C19 (Battery Backup)
(21) IEC 320 C13 (Battery Backup)
|
| Input |
Nominal Input Voltage
200V , 208V , 230V
Input frequency
50/60 Hz
Input Connections
IEC-320 C20
Acceptable Input Voltage
100-240VAC
Maximum Input Current
20A
Regulatory Derated Input Current (North America)
16A
|
| Physical |
Maximum Height
1791mm , 179.1cm
Maximum Width
56mm , 5.6cm
Maximum Depth
46mm , 4.6cm
Net Weight
5.73kg
Shipping weight
7.86kg
|
| Environmental |
Operating Environment
-5 - 45 °C
Operating Relative Humidity
5 - 95 %
Operating Elevation
0-3000meters
Storage Temperature
-25 - 65 °C
Storage Relative Humidity
5 - 95 %
Storage Elevation
0-15000meters
|
| Conformance |
Approvals
cUL Listed, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, PSE, UL Listed, VDE
Standard warranty
2 years repair or replace
|
| Sustainable Offer Status |
RoHS
Compliant
REACH
REACH: Contains No SVHCs
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
Battery Directive
Compliant
Battery Notes
ts_Battery_Notes
|
* Specifications are subject to change without notice.
* Specifications may vary.
* The product picture(s) is only for your reference, it may differ from the actual product.
 |
