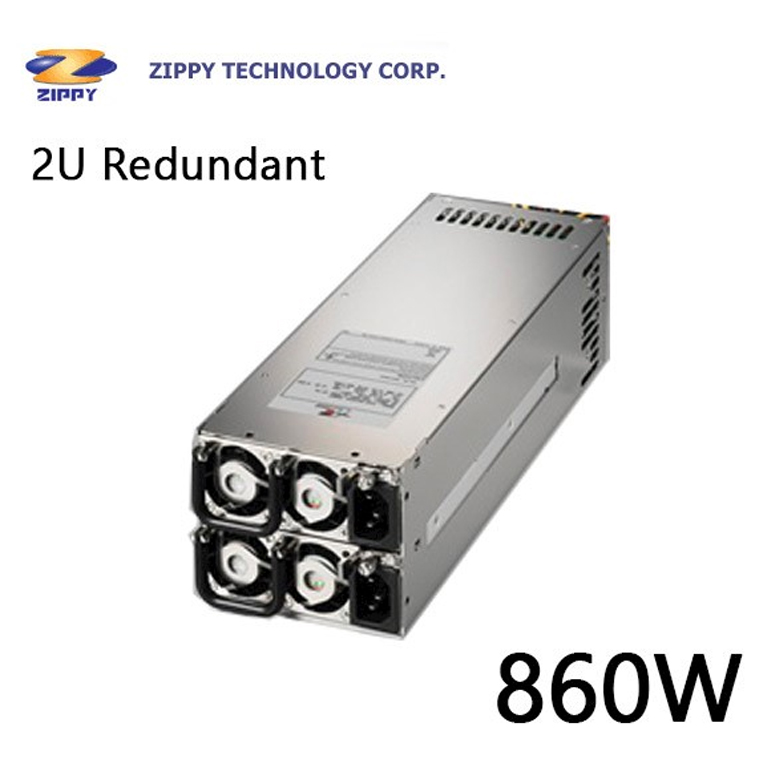

Zippy 860W 2U Redundant Power Supply (G1W2-5860V3V) FEATURES: * TEMPERATURE RANGE: OPERATING: 0℃ ~ 40℃, STORAGE: -20℃ ~ 80℃ * HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE * EFFICIENCY: >80% TYPICAL AT 115 VAC FULL LOAD * POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms * REMOTE ON/OFF CONTROL * OVER POWER PROTECTION:110%~150% * OVER VOLTAGE PROTECTION: +5V→5.7~6.2V, +3.3V→3.7~4.1V, +12V→13.3~14.3V; * SHORT CIRCUIT: +5V, +3.3V, +12V, -12V, +5VSB * OVER CURRENT PROTECTION: +5V→35~48A, +12V→77~105A, +3.3V→35~48A * SAFETY: TO MEET UL, CUL, TUV, CB * LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 250VAC * EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A * WARMING METHOD: BUZZER SOUND, TTL, FAULT LED *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
OUTPUT WATTAGE: 860W BEST SOLUTION FOR: Server ,Workstation ,Storage System ,IPC DIMENSION: 300x101.2x84(mm) 11.81x3.98x3.31(inch) INPUT SPEC: VOLTAGE: 90V ~ 264VAC (WITH ± 10% TOLERANCE) FREQUENCY: 47Hz ~ 63Hz INPUT CURRENT: 13/6.5A MAX AT ANY LOW/HIGH INPUT VOLTAGE INRUSH CURRENT: 60/80A @ 115/230VAC (25℃) POWER FACTOR CORRECTION: 95% @ 110V, FULL LOAD DC OUTPUT SPEC:
+5V AND +3.3V TOTAL OUTPUT MAX: 190W TOTAL OUTPUT MAX: 860W |
