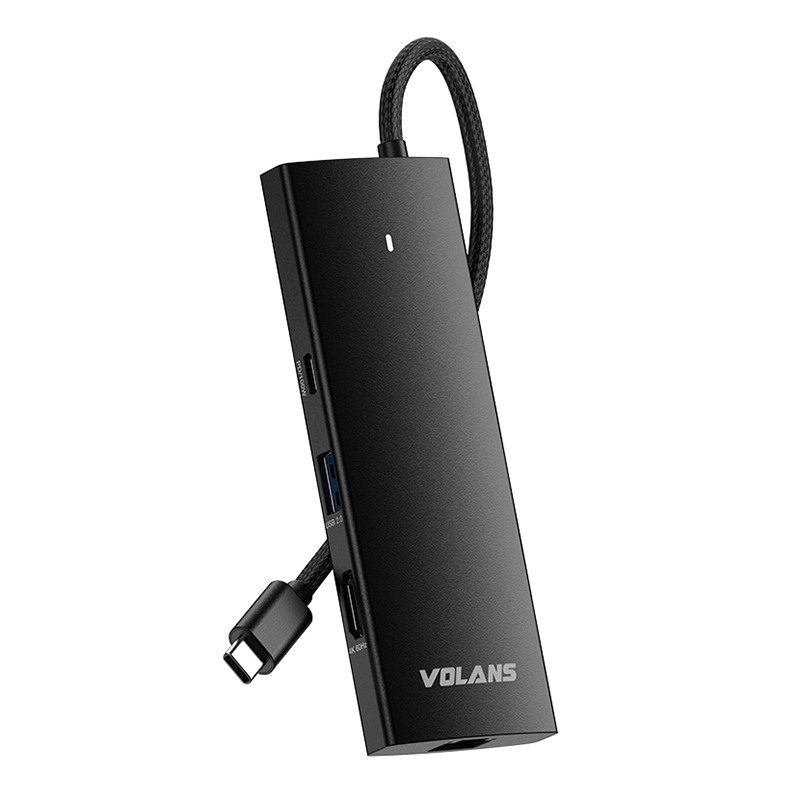

Volans 9 in 1 Aluminium USB-C Hub with 100W PD - Black (VL-UCH3CLR-S)

4K Support

Yes

Bus Type

USB-C

Chipset ID

VL102+PS186+RTS8411+RTL8153+FE8.1+GL823K*2

Displays Supported

1

Fast-Charge Port(s)

Yes

Industry Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

USB 3.0 – Backward compatible with USB 2.0 and 1.1

PERFORMANCE

Auto MDIX

Yes

Compatible Networks

10/100/1000 Mbps

Full Duplex Support

Yes

Maximum Data Transfer Rate

5 Gbps (USB 3.0)

2 Gbps (Ethernet; Full-Duplex)

Maximum Digital Resolutions

4K@60Hz (only DP1.4 can support 4K@60Hz, 4K@30Hz for DP1.2)

Type and Rate

USB 3.0 – 5 Gbit/s

UASP Support

Yes

CONNECTOR(S)

Connector Type(s)

1 – USB Type-C (24 pin) USB 3.1 Male

1 – HDMI2.0 (19 pin) Female

1 – RJ-45 Female

1 – SD Card Slot (USB2.0)

1 – Micro SD Card Slot (USB2.0)

3 – USB-A Female

2 – USB-C Female

SOFTWARE

OS Compatibility

Windows® 7, 8, 8.1, 10

Mac OS® 10.9 to 10.13

Chrome OS™

SPECIAL NOTES / REQUIREMENTS

Note

Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 3.0 and DP alt mode.

The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 3.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to   your host laptop.

A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K)

USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.

System and Cable Requirements

A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 3.0 and DP alt mode)

Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter)

POWER

Power Delivery

100W

Power Source

USB-Powered

ENVIRONMENTAL

Humidity

0~85% RH (Non-condensing)

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-10°C to 65°C (14°F to 149°F)

PHYSICAL CHARACTERISTICS

Color

Black

Enclosure Type

Aluminium

WHAT’S IN THE BOX

Included in Package

1 – VL-UCH3CLR-S

1 – Quick-start guide
