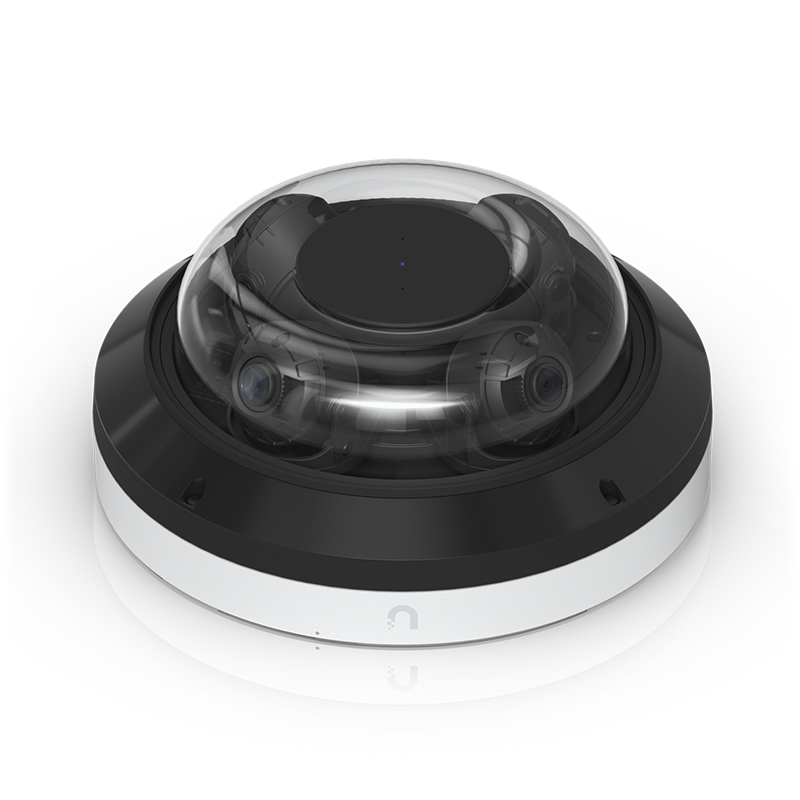

Ubiquiti Networks AI 32MP Multi Sensor 4 All-Weather Security Camera - White (UVC-AI-MS-4-W)
Dome camera with 2.33× optical zoom, 20 m IR night vision, 108.8° wide FOV, face & license‑plate recognition, smart people/vehicle/animal detection, IP66, IK10, PoE++ power, dual‑core Cortex‑A76, NDAA compliant.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
OVERVIEW

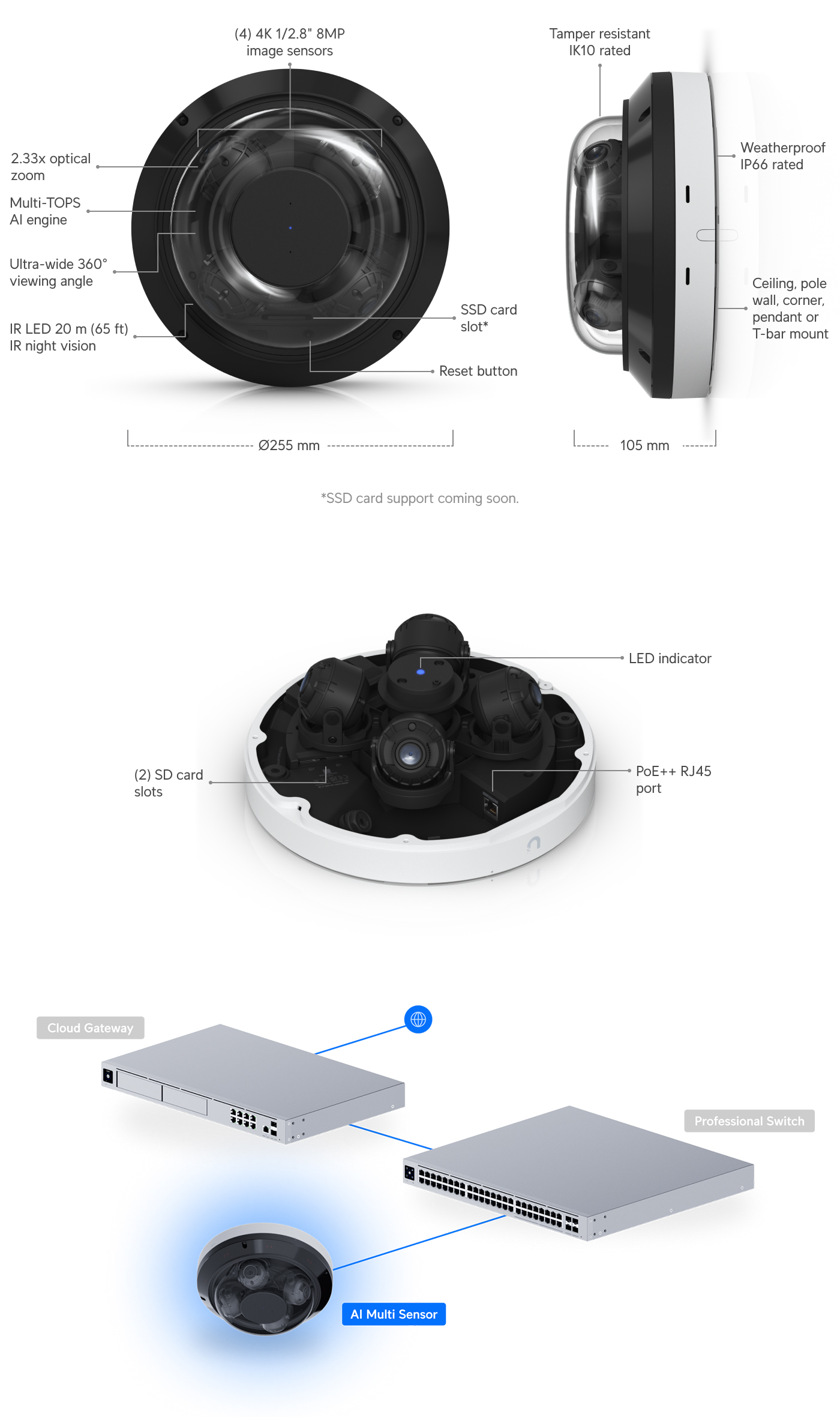

Dimensions
⌀255 x 105 mm
(⌀10.04 x 4.13")
IR Night Vision
20 m (65 ft)
Zoom Mode
2.33x Optical
Face Recognition
✓
License Plate Recognition
✓
Smart Detections (People, Vehicles, Animals)
✓
Resolution
32MP
Field of View
Wide:H: 108.8°, V: 57.6° , D: 130.8°
Tele: H: 42.8°, V: 24.1° , D: 49.1°
Weatherproofing
IP66
Tamper Resistance
IK10
Mounting
Ceiling mount (Included)
Pole, Corner, Arm, Pendant mount (Optional)
PERFORMANCE
Networking Interface
GbE RJ45 port
Video
Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
Max. Frame Rate: 24 FPS
Resolution: (4) 8MP 3840 x 2160 (16:9)
Optics
Sensor: 1/2.8" 8MP
Lens: (4) F 3.18-7.42 mm; ƒ/1.8-ƒ/2.8
Night Mode: Built-in (16) IR LEDs with adaptive control
HARDWARE
Max. Power Consumption
34.6W
Supported Voltage Range
42.5–57V DC
Power Method
PoE++
Processor
Dual core Arm® Cortex®-A76 based chip
Weight
2.4 kg (5.3 lb)
Enclosure Material
Aluminum alloy, polycarbonate
Mount Material
Powder-coated aluminum alloy
Expansion Slot
(2) MicroSD card
(1) M.2. 2280 SATA SSD
Button
(1) Factory reset
Ambient Operating Temperature
-20 to 50º C (-4 to 122º F)
Ambient Operating Humidity
0 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC
Product Name:
Ubiquiti Networks AI 32MP Multi Sensor 4 All-Weather Security Camera - White (UVC-AI-MS-4-W)
