SPECIFICATIONS:
OVERVIEW

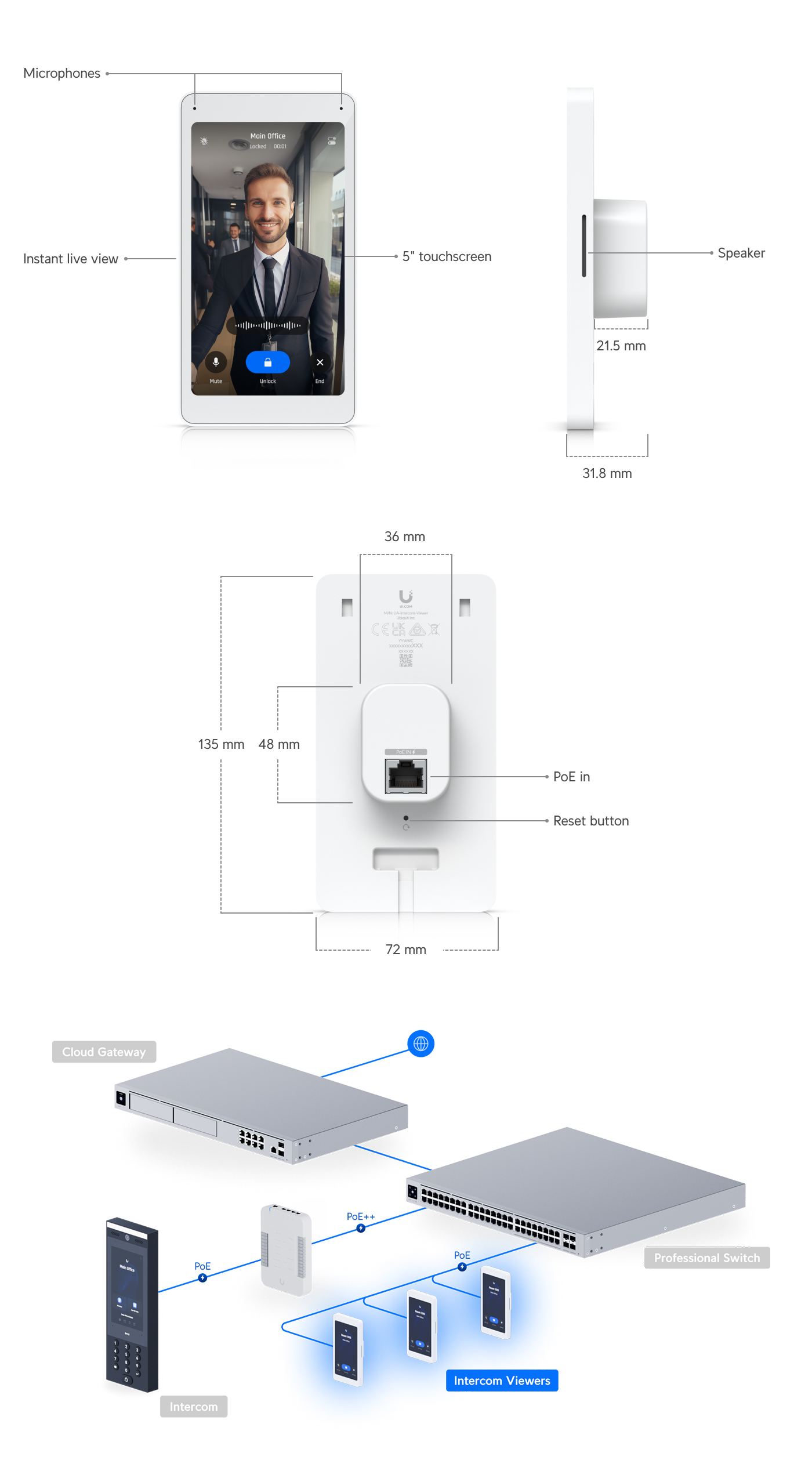

Dimensions
135 x 185 x 32 mm
(5.3 x 7.3 x 1.3")
Mobile Unlock
✓
NDAA Compliant
✓
UL 294 Level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
MECHANICAL
Weight
168 g (5.9 oz)
Enclosure Material
Glass, polycarbonate
Mount Material
Aluminum alloy
Mounting
Wall (Included)
Gang box mount (Optional)
HARDWARE
Indoor and Outdoor Use
Indoor only
Networking Interface
(1) 10/100 Mbps RJ45 port
Connectivity
Ethernet
Power Method
PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption
5W
Supported Voltage Range
44–57V DC
Display
Size
127 mm (5") diagonal
Luminance
300 nits (Typical)
Screen Orientation
Portrait
Resolution
1280 x 720 px
Microphone
✓
Speaker
✓
Buttons
(1) Factory reset
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-Intercom-Viewer, V01
Ambient Operating Temperature
0 to 40° C
(32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
SOFTWARE
Management Application
Access
Software Information
The software version can be checked at https://unifi.ui.com
