Ubiquiti Flex 2.5G 8-port 2.5 GbE Switch (USW-Flex-2.5G-8)

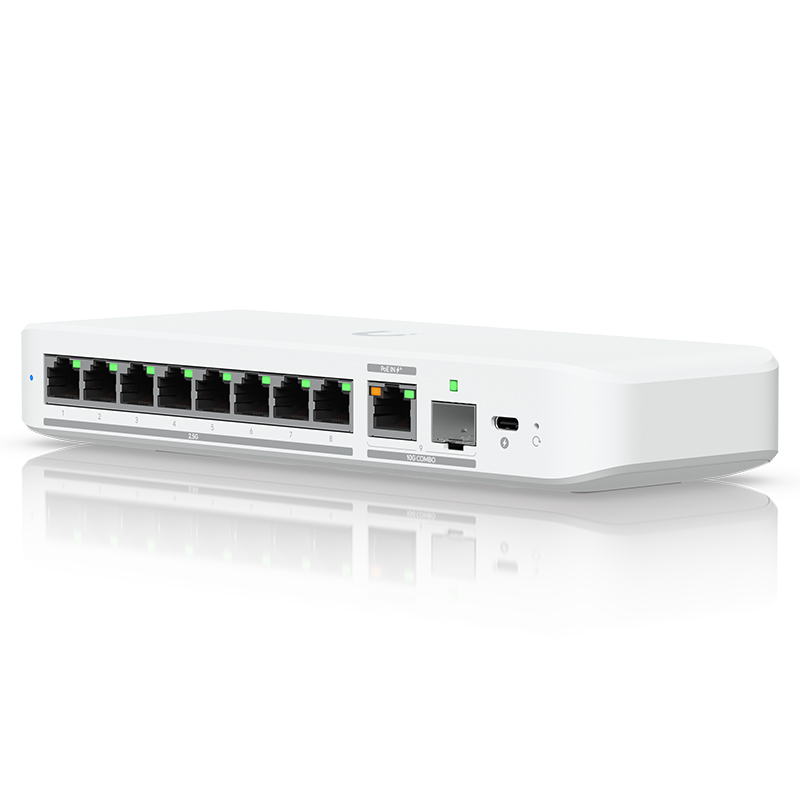

Compact 8‑port 2.5 GbE + 1 × 10 GbE RJ45 + 1 × 10G SFP+ switch, 60 Gbps capacity, 45 Mpps, 256 VLANs, 4k MAC, STP/RSTP, egress rate limit, storm control, jumbo frames, PoE+/USB‑C power, UniFi managed.

Ubiquiti Flex 2.5G 8-port 2.5 GbE Switch (USW-Flex-2.5G-8)
  • Switches-Ubiquiti-Flex-2-5G-8-port-2-5-GbE-Switch-USW-Flex-2-5G-8-6
  • Switches-Ubiquiti-Flex-2-5G-8-port-2-5-GbE-Switch-USW-Flex-2-5G-8-2
  • Switches-Ubiquiti-Flex-2-5G-8-port-2-5-GbE-Switch-USW-Flex-2-5G-8-3
  • Switches-Ubiquiti-Flex-2-5G-8-port-2-5-GbE-Switch-USW-Flex-2-5G-8-4
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

- +
Want a stock alert?

Please enter a valid email address

   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post In Stock
    NSW Pickup & Post
    • Post In Stock
    • Villawood Robot Super StoreIcon 3 In Stock
    SA Pickup & Post
    • Post In Stock
    • Croydon Robot Super StoreIcon 3 In Stock

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Switches-Ubiquiti-Flex-2-5G-8-port-2-5-GbE-Switch-USW-Flex-2-5G-8-1



SPECIFICATIONS:

OVERVIEW


Dimensions

212.9 x 76 x 33.5 mm (8.4 x 3 x 1.3")

Port Layout

2.5 GbE RJ45: 8 (2.5G/1G/100M/10M)

10 GbE RJ45: 1 (10G/5G/2.5G/1G/100M)

10G SFP+: 1 (10G/1G)

Form Factor

Compact Desktop, wall, DIN, magnetic

PERFORMANCE


Switching Capacity

60 Gbps

Total Non-Blocking Throughput

30 Gbps

Forwarding Rate

45 Mpps

Supported VLANs

256

MAC Address Table Size

4,000

LAYER 2 FEATURES


STP & RSTP

✓

Egress Rate Limit

✓

Flow Control

✓

Storm Control

✓

Multicast & Broadcast Rate Limiting

✓

Port Isolation

✓

Port Mirroring

✓

Jumbo Frames

✓

Loop Protection

✓

HARDWARE


Max. Power consumption

14W with PoE input 14W with AC adapter input

Power Method

(1) USB Type-C, 5V DC, 3A (1) PoE+

Power Input Method

USB Input PoE

Power Supply

AC/DC, external, 15W

Supported Voltage Range

4.8—5.2V DC/USB 44V—57V PoE

Management

Ethernet

Weight

395 g (0.87 lb)

Enclosure Material

Polycarbonate

Mount Material

Polycarbonate

Ambient Operating Temperature

-20 to 45° C (-4 to 113° F)

Ambient Operating Humidity

10 to 90% noncondensing

NDAA Compliant

✓

Certifications

CE, FCC, IC, Anatel

SOFTWARE


Application Requirements

UniFi Network

Version 9.0.114 and later




  • Product Name:
    Ubiquiti Flex 2.5G 8-port 2.5 GbE Switch (USW-Flex-2.5G-8)
  • Model Number:
    USW-Flex-2.5G-8
  • Brand:
    Ubiquiti Ubiquiti
  • Warranty Period:
    1 Year
