SECURITY |
|
Access Control | Source/Destination IP Based Access Control |
Filtering | • Web Group Filtering** • URL Filtering • Web Security** **Supported only in Standalone Mode. |
ARP Inspection | • Sending GARP Packets • ARP Scanning** • IP-MAC Binding **Supported only in Standalone Mode. |
Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
HARDWARE FEATURES |
|
Interface | • 1 Combo Gigabit SFP/RJ45 Port (1 SFP WAN/LAN Port + 1 WAN/LAN Port) • 4 × RJ45 Gigabit LAN Ports • 1 DSL Port • 2 FXS Ports |
Button | Reset Button |
Power Supply | 100-240V/50-60Hz 0.6A |
Slot | 1*USB 3.0 (supports USB LTE dongle and USB Storage) |
Flash | 256MB NAND |
DRAM | 512MB DDR4 |
Dimensions ( W x D x H ) | 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) (Antenna dimensions not included) |
Antenna | LTE: Two 3dBi omnidirectional detachable antennas |
SIM Slot | 1 Dual-SIM Nano SIM slot (4G+ Cat6) |
Mounting | Desktop/ Rack-mounting |
Max. Power Consumption | • 8.55 W (No Link) • 24.4 W (Full load + USB ) |
PERFORMANCE |
|
GRE | • Unencrypted: 491.9Mbps • Encrypted: 244.3Mbps |
WireGuard VPN | 290Mbps |
Concurrent Session | 150,000 |
New Sessions /Second | 4,050 |
NAT (Static IP) | 937.2 Mbps/936.1Mbps |
NAT(DHCP) | 945.8 Mbps /940.6Mbps |
NAT(PPPoE) | 942.9 Mbps/942.9Mbps |
NAT (L2TP) | 837.4 Mbps / 881.5Mbps |
NAT (PPTP) | 803.0 Mbps / 910.5 Mbps |
IPsec VPN Throughput | • ESP-SHA1-AES256: 526.6Mbps • ESP-SHA256-AES256: 543.3Mbps • ESP-SHA384-AES256: 549.0Mbps • ESP-SHA512-AES256: 561.7Mbps |
OpenVPN | 129.3Mbps |
L2TP VPN Throughput | 837.4 Mbps /881.5Mbps |
PPTP VPN Throughput | 803.0 Mbps/910.5 Mbps |
66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,488 pps |
1,518 Byte Packet Forwarding Rate | 81274 pps/ 91275 pps |
BASIC FUNCTIONS |
|
WAN Connection Type | • Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP |
MAC Clone | Modify WAN Address |
DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough |
VLAN | 802.1Q VLAN |
IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
ADVANCED FEATURES |
|
Bandwidth Control | IP-based Bandwidth Control |
Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection |
NAT | • One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering** • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP **Supported only in Standalone Mode. |
Session Limit | IP-based Session Limit |
VPN |
|
GRE | Only in Standalone Mode |
SSL VPN | 50 Tunnels |
IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10)*** • 50 Tunnels • PPTP with MPPE Encryption ***Supported only in Controller Mode. |
L2TP VPN | • L2TP VPN Server • L2TP VPN Client (10)*** • 50 Tunnels • L2TP over IPSec ***Supported only in Controller Mode. |
OpenVPN | • OpenVPN Server • OpenVPN Client (5)*** • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode ***Supported only in Controller Mode. |
WireGuard VPN | ✔ |
MANAGEMENT FEATURES |
|
Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
Cloud Access | Yes. Require the use of Omada Controller. |
Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize1 • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support • TR-069 (data models of TR-098 and TR-181 are supported) |
Zero-Touch Provisioning | Yes. Require the use of Omada Controller. |
OTHERS |
|
Certification | CE, RoHS |

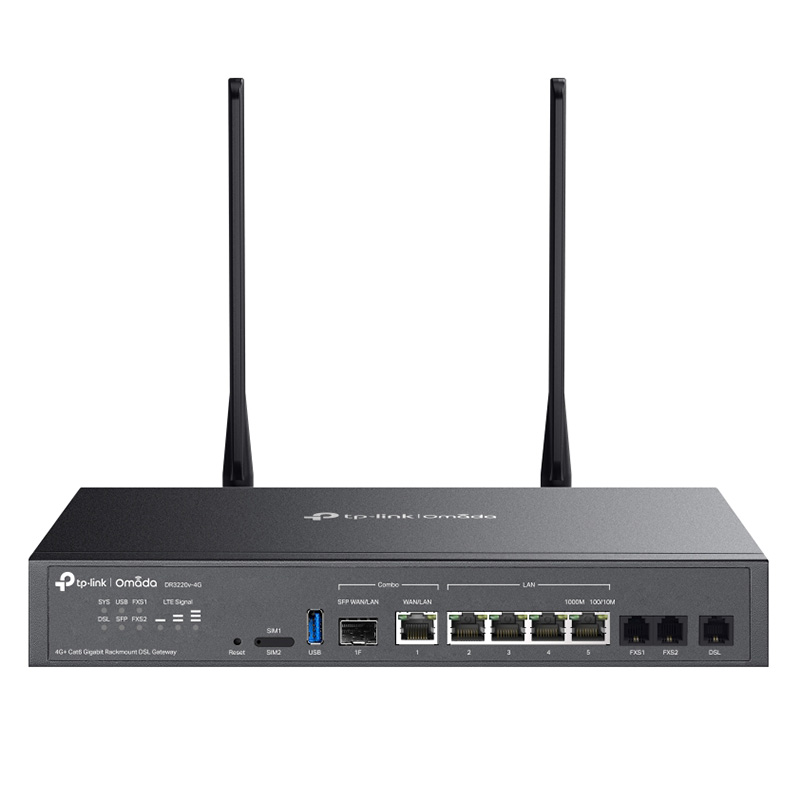

Package Content | • DR3220v-4G • Power Cord • Ethernet Cable • Phone Cable • Rubber Feet • SIM Card Eject Pin • Rackmount Kit • Antenna Extension Base • Quick Installation Guide |
System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux |
Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |
Notes | • Maximum wired signal rates are the physical rates. Actual data throughput is not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors. • Actual 4G downlink speeds vary between buildings. Factors affecting 4G speeds include the internet service plan, real-time network capacity, equipment and client limitations, and environmental factors. |
