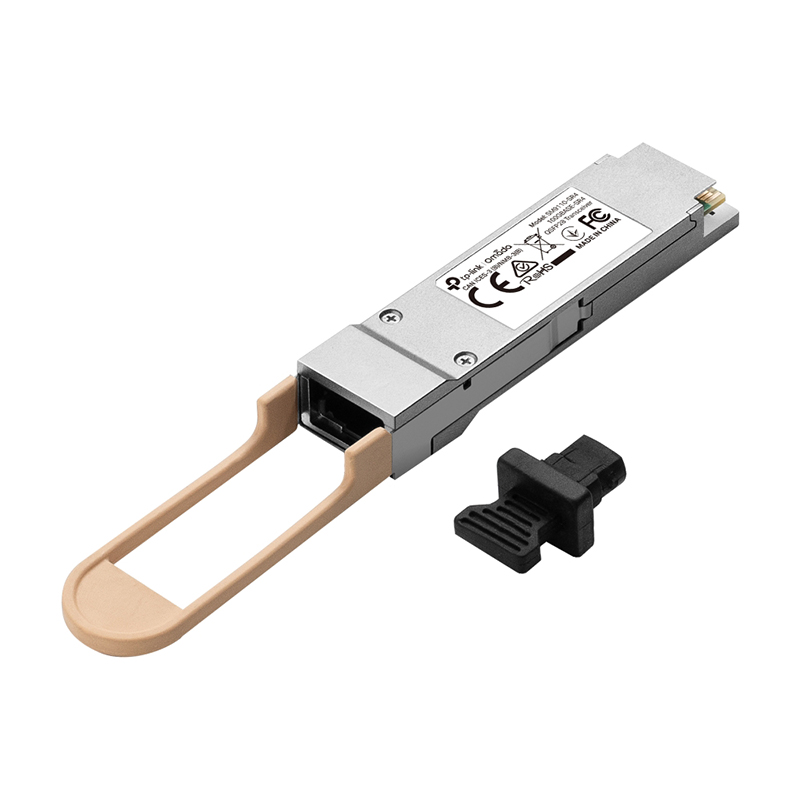

Name: TP-Link Omada 100GBASE-SR4 QSFP28 Transceiver (SM9110-SR4)
Brand: TP-Link
SKU: 89527
Price: 109.0000 AUD
Availability: InStock

TP-Link Omada 100GBASE-SR4 QSFP28 Transceiver
The SM9110-SR4 is designed to extend transmission distance based on ultra-fast Ethernet connectivity. It is a 100G/40GBASE-SR4 high performance 850nm multi-mode QSFP28 transceiver. It supports 100G Ethernet connection up to 100 m (OM4) and 40G Ethernet connection up to 150 m (OM4).

100GBASE-SR4 multi-mode QSFP28 Transceiver
Supports Digital Diagnostic Monitoring (DDM)
Up to 100 m transmission distance
Hot-Pluggable with maximum flexibility
Wide operating temperature
Compatible with 100G/40G Quad Small Form-Factor Pluggable 28 (QSFP28)

SPECIFICATIONS:

TRANSCEIVER
Form Factor	QSFP28
Standards and Protocols	• IEEE 802.3bm, IEEE 802.3ba, QSFP28 MSA, • SFF-8665, SFF-8636, SFF-8436, • CPRI, eCPRI • TCP/IP
Wave Length	850 nm
Power Supply	3.3 V
Max. Power Consumption	Max 1.8 W at 100 Gbps Max 1.54 W at 40 Gbps
Fiber Type	50/125um MMF (Multimode)
Max. Cable Length	70 m (OM3), 100 m (OM4) @103.125 Gbps (4x 25.78Gbps) 100 m (OM3), 150 m (OM4) @41.2 Gbps (4x 10.3 Gbps)
Data Rate	Dual Rate 103.125 Gbps and 41.2 Gbps
Connector	MTP/MPO-12
Transmission power	-8.4 dBm to 2.4 dBm @103.125 Gbps -7.6 dBm to 2.4 dBm @41.2 Gbps
Transmitter Type	VCSEL 850 nm
Receiver Type	PIN
Receiver Sensitivity	<-10.3 dBm @103.125 Gbps <-9.5 dBm @41.2 Gbps
Receiver Overload	>2.4 dBm @103.125 Gbps >2.4 dBm @41.2 Gbps
Extinction Ratio	>2 dB @103.125 Gbps >3 dB @41.2 Gbps
Regulatory Compliance	CE, FCC, RoHS
HARDWARE FEATURES
DDM	Yes
QSFP28 MSA	Yes
Hot Swappable	Yes
Dimensions ( W x D x H )	4.880.720.46 in (12418.3511.7 mm)
PACKAGE CONTENT
Package Content	• SM9110-SR4 • Installation Guide
ENVIRONMENT
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	0 to 85% RH Non-condensing
Storage Humidity	0 to 85% RH Non-condensing
