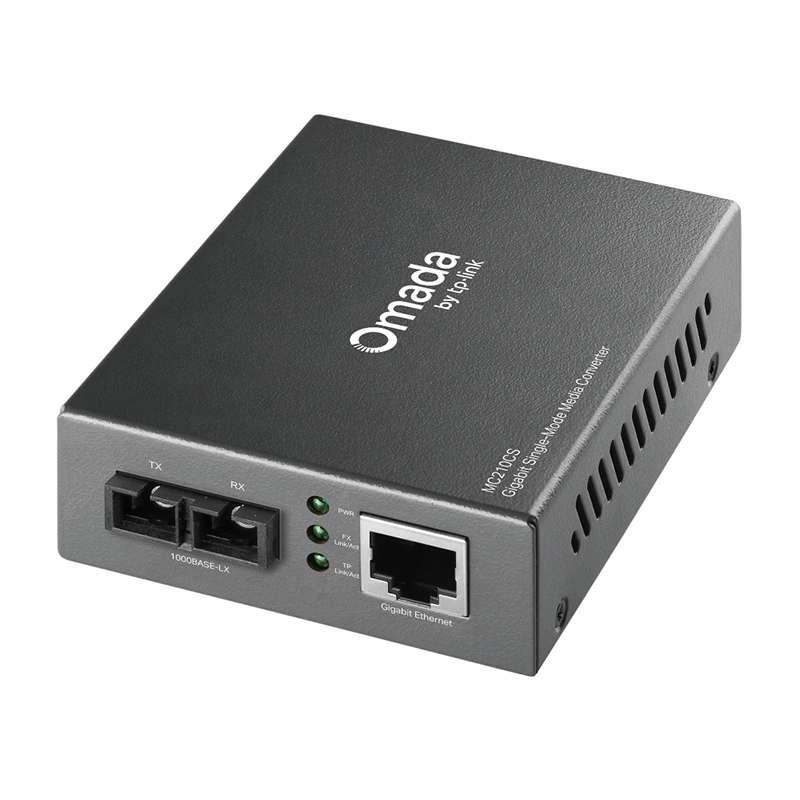

TP-Link Gigabit Single-Mode UN/7.20 Media Converter (MC210CS-AU)

TP-Link MC210CS media converter: 1000BASE‑LX single‑mode fiber (1310 nm) to 1000BASE‑T copper, up to 20 km reach, auto‑MDI/MDIX RJ45, 2 SC/UPC ports, LED indicators, external 1.8 W power.

TP-Link Gigabit Single-Mode UN/7.20 Media Converter (MC210CS-AU)
  • Fiber-Convertor-TP-Link-Gigabit-Single-Mode-UN-7-20-Media-Converter-MC210CS-AU-3
  • Fiber-Convertor-TP-Lin-Gigabit-Single-Mode-UN-7-20-Media-Converter-MC210CS-AU-1
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

- +
Want to be notified when this item is back in stock?

Please enter a valid email address

   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post In Stock
    NSW Pickup & Post
    • Post In Stock
    • Villawood Robot Super StoreIcon 3 Instant Pickup
    SA Pickup & Post
    • Post In Stock
    • Croydon Robot Super StoreIcon 3 At Other Store

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

  • Product Name:
    TP-Link Gigabit Single-Mode UN/7.20 Media Converter (MC210CS-AU)
  • Model Number:
    MC210CS-AU
  • Brand:
    TP-Link TP-Link
  • Warranty Period:
    3 Year

Description

TP-Link Gigabit Single-Mode UN/7.20 Media Converter
The MC210CS is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards, the MC210CS is designed for use with single-mode fiber cable utilising the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with MC1400 chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilising single-mode fiber up to 20 kilometers.





SPECIFICATIONS:

MEDIA CONVERTER & MODULE


Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z

Basic Function

Auto-negotiation of Half-Duplex / Full-Duplex transfer mode

Extends fiber distance up to 20km

Interface

• 2× 1000M SC/UPC ports

• 1× 10/100/1000M RJ45 port (Auto MDI/MDIX)

Wave Length

1310nm

Network Media 1000BASE-LX

Single-mode Fiber

Network Media 1000BASE-T

UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Dimensions ( W x D x H )

3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

Power Supply

External Power Adapter

Max. Power Consumption

1.8W

LED

PWR, Link/Act

Safety & Emission

FCC, CE, RoHS

Package Content

• MC210CS

• Power Adapter

• Installation Guide

Environment

• Operating Temperature: 0℃~50℃ (32℉~122℉)

• Storage Temperature: -40℃~70℃ (-40℉~158℉)

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing
