SPECIFICATIONS:
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz
Interface
5× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 12 VDC / 2.0 A)
LED
• System Power: 1
• Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port
Dimensions ( W x D x H )
8.9×5.2×1.4 in (226×131×35 mm)
Max. Power Consumption
21.4 W
PERFORMANCE
Packet Buffer Memory
2 Mb
Jumbo Frame
10 KB
Switching Capacity
100 Gbps
Packet Forwarding Rate
74.4 Mpps
MAC Address Table
32 K
SOFTWARE FEATURES
Advanced Features
• 802.3X Flow Control
• 802.1p/DSCP QoS
Transmission Method
Store and Forward
OTHERS
Certification
CE, FCC ,RoHS
Package Content

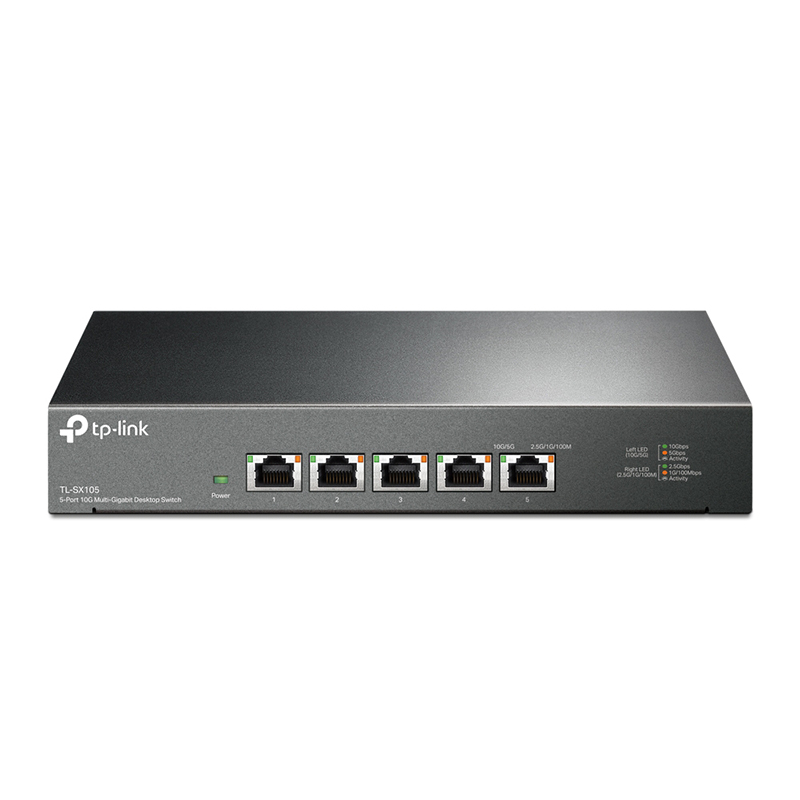

• 5-Port 10G Multi-Gigabit Desktop/Rackmount Switch TL-SX105
• Power Cord
• Installation Guide
• Rubber Feet
Environment
• Operating Temperature: 0–40 °C (32–104 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
