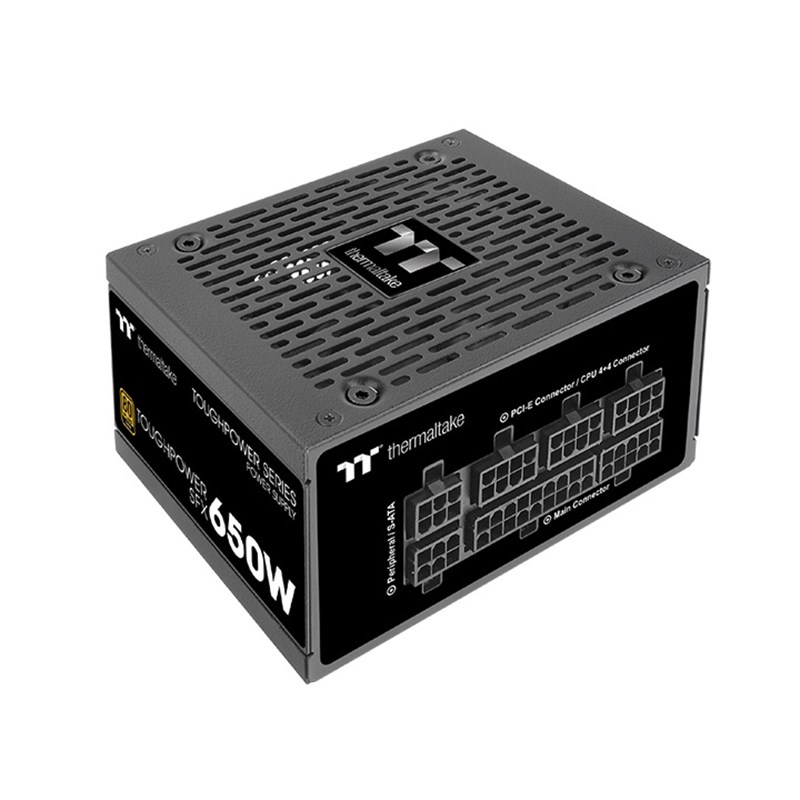

SPECIFICATIONS:
P/N
PS-STP-0650FNFAGA-1
WATTS
650W
RGB FAN
No
FORM FACTOR
SFX
MODEL
SFX-650AH8FKG
MAX. OUTPUT CAPACITY
PEAK OUTPUT CAPACITY
780W
COLOR
Black
DIMENSION ( W / H / D )
125mm(W) x 63.5mm(H) x 100mm(D)
WEIGHT
0.855KG
PFC (POWER FACTOR CORRECTION)
Active PFC
POWER GOOD SIGNAL
100-500 msec
HOLD UP TIME
> 16msec at 80% of full load
INPUT CURRENT
10A max.
INPUT FREQUENCY RANGE
50Hz - 60Hz
INPUT VOLTAGE
100V – 240V~
OPERATING TEMPERATURE
5°C to + 40°C
OPERATING HUMIDITY
20% to 85%,non-condensing
STORAGE TEMPERATURE
-40°C to + 55°C
STORAGE HUMIDITY
10% to 95%, non-condensing
COOLING SYSTEM
9cm hydraulic bearing fan
EFFICIENCY
Meet 80 PLUS®Gold at 115Vac input.
MTBF
100,000 hrs minimum
SAFETY APPROVAL
CE/cTUVus/TÜV/FCC/BSMI/EAC/CCC/S-Mark/C-TICK
PCI-E 6+2PIN
2
PROTECTION
OCP, OVP, OPP, SCP
