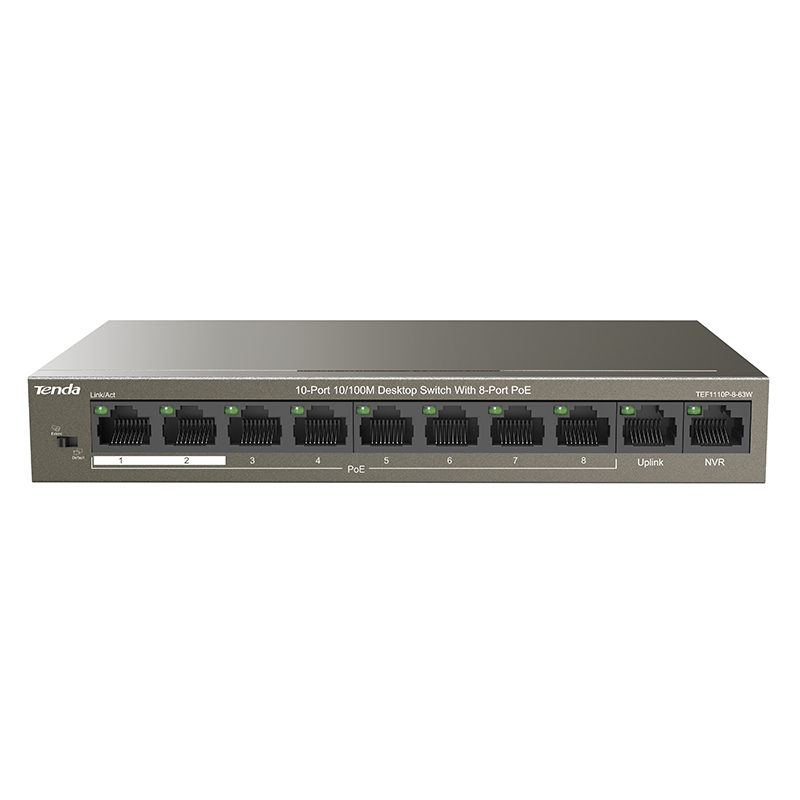

Tenda 10-Port 10/100M Desktop Switch with 8-Port PoE (TEF1110P-8-63W)

Description

SPECIFICATIONS:

HARDWARE
Network standards	IEEE 802.3/3u/3x, IEEE 802.3af/at
LED Indicator	10* Link/Ack LED indicators 1 * Power LED indicator
Interfaces	8 * 10/100 Base-TX Ethernet ports (Data/Power) 2 * 10/100 Base-TX Ethernet ports (Data)
Transmission media	Recommended: CAT5/5e UTP or better
Dimension	177.5mmx104.0mmx26.0mm
Level of protection	Lightning protection for ports: 6KV Lightning protection for power: 4KV ESD: Air discharge: ±10kV Contact discharge: ±8kV
Forwarding mode	Store-and-forward
Switch capacity	1.6 Gbps
Packet forwarding rate	1.48Mpps
Buffer	448K
MAC address table	1K
PoE budget	Single port: AF: 15.4W, AT: 30W Whole device: 58W
Input voltage	100－240V AC 50/60Hz 51V /1.25A DC（Power Adapter ）
Mounting	Desktop mounting: support Wall mounting: support Rack mounting: non-support
Environment	Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certification	FCC、CE、RoHS
SOFTWARE
Functions	Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation. Extend Mode: VLAN isolation is enabled. Port 1-8 will be isolated respectively (10/100Mbps auto-negotiation), but can communicate with the Uplink port. And the delivery distance of powering and network data is up to 250m (10Mbps)
