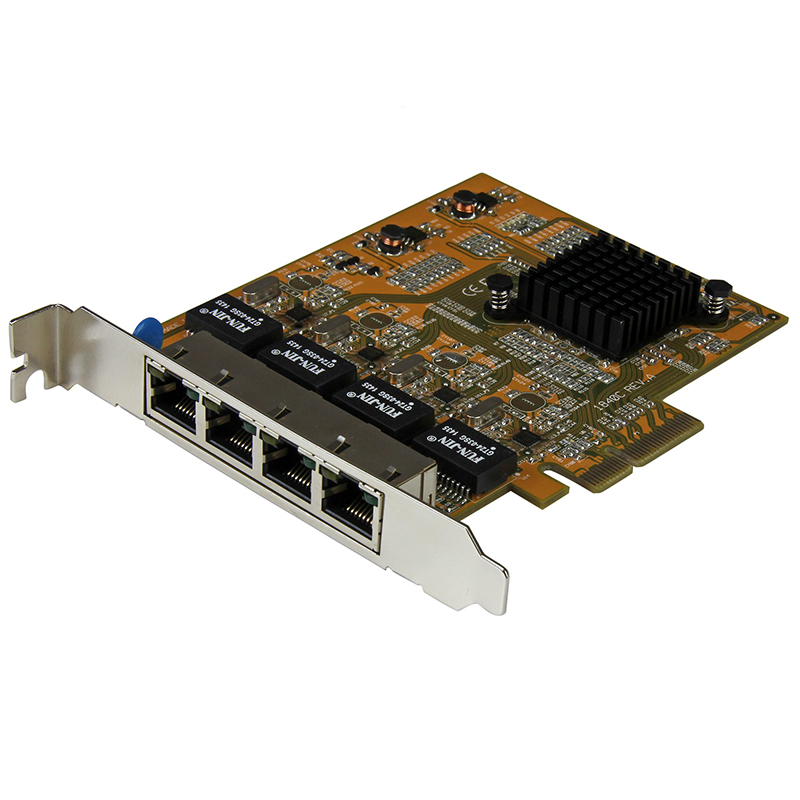

Startech 4-Port PCIe Gigabit Network Adapter
Now you can add four separate Gigabit network ports to your client, server or workstation through just one PCI Express slot, to provide connectivity to multiple networks without draining your budget.
Reliable connectivity to multiple networks This 4-port network card delivers powerful connectivity for your business, corporate or government office environment, with support for high-performance, 4-channel networking and a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total). The network adapter card features the Realtek RTL8111H chipset, which is designed to deliver the performance and enhanced capabilities you need for reliable network connections to your server or computer.
A versatile and cost-effective solution This versatile quad-port network card is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking with four independent ports. Compatible with a broad range of operating systems, this cost-effective PCIe Gigabit NIC is suitable for many SMB and Enterprise applications such as virtualized environments that require multiple NICs (check your VM software for chipset compatibility).
SPECIFICATIONS:
CONNECTOR(S) |
| Connector Type(s) | 1 - PCI Express x4 | External Ports | 4 - RJ-45 | ENVIRONMENTAL |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) | Storage Temperature | -40°C to 75°C (-40°F to 167°F) | Humidity | 5% ~ 95% RH | HARDWARE |
| Ports | 4 | Interface | RJ45 (Gigabit Ethernet) | Bus Type | PCI Express | Card Type | Standard Profile | Industry Standards | Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab | Chipset ID | Realtek - RTL8111H | INDICATORS |
| LED Indicators | 4 - Link 4 - Activity | PACKAGING INFORMATION |
| Package Height | 1.6 in [4.1 cm] | Package Length | 8.3 in [21.0 cm] | Shipping (Package) Weight | 6.6 oz [188.0 g] | Package Width | 5.7 in [14.5 cm] | Package Quantity | 1 | PERFORMANCE |
| Maximum Data Transfer Rate | 2000Mbps (Full Duplex) | Compatible Networks | 10/100/1000 Mbps | Auto MDIX | Yes | Full Duplex Support | Yes | Jumbo Frame Support | 9K max. | Promiscuous Mode | Yes | PHYSICAL CHARACTERISTICS |
| Weight of Product | 3.2 oz [92 g] | Color | Yellow | Material | Steel | Product Length | 5.4 in [13.8 cm] | Product Width | 4.7 in [12.0 cm] | Product Height | 0.7 in [1.8 cm] | SOFTWARE |
| OS Compatibility | Windows® XP, 7, 8, 8.1, 10, 11 Windows Server® 2003, 2012, 2016, 2019 Linux Kernel 2.4.x and up - LTS Versions only | SPECIAL NOTES / REQUIREMENTS |
| System and Cable Requirements | Available PCI Express x4 or higher (x8, x16) slot | WHAT'S IN THE BOX |
| Included in Package | 1 - PCIe Gigabit network card - 4 port |
|
