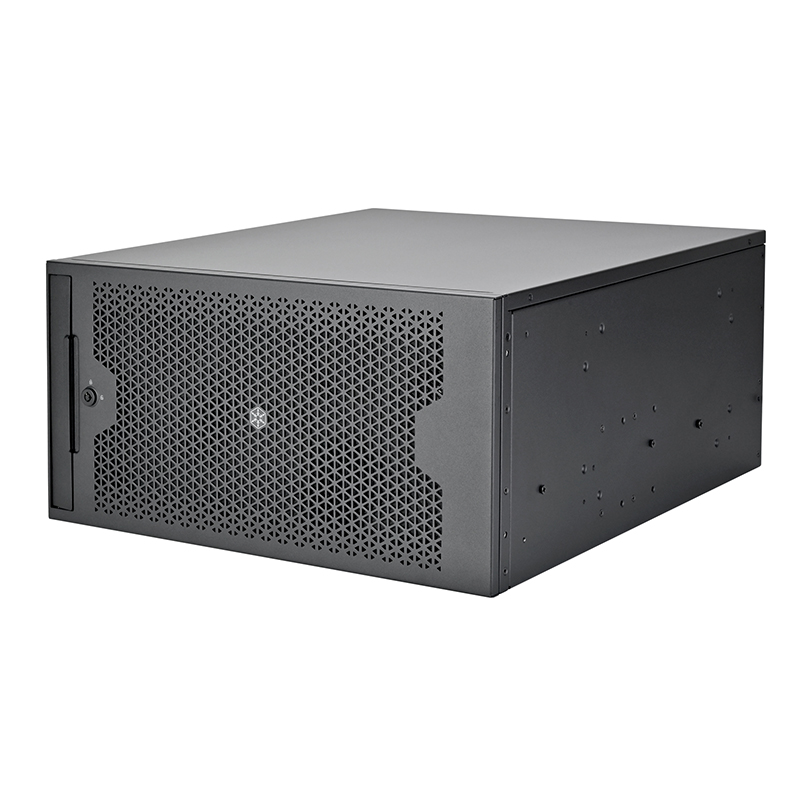

SilverStone 5U Rackmount Server Chassis (SST-RM53-502)

Motherboard

SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

Material

Steel

Drive Support

External

5.25" x 2 (compatible with 2.5" x 4 or 3.5" x 2)

Internal

3.5” x 1 (compatible with 2.5” x 2)

3.5” x 2 (compatible with SFX PSU x 1)

2.5” x 5 (two expansion cards occupy the 8th slot position)

Cooling system

Front

120mm x 3, 80mm x 3 (2 x 80mm fans included)

Rear

Rear I/O:

120mm x 1 / 140mm x 1 (1 x 140mm fans included)

Rear fan cage:

80mm x 2

Radiator support

Front

120mm / 240mm / 360mm

Rear

120mm

Limitation of CPU cooler

Single CPU: 178mm

Dual CPU: 101–178mm *

Expansion Slot

8

Limitation of expansion card

Length: 454mm (without installing front fans, radiators)

Width: w/ GPU holder: 160mm ; w/o GPU holder: 185mm

Power Supply

Primary PSU slot:

PS2 (ATX) / Mini Redundant / 2U CRPS Redundant

Secondary PSU slot:

SFX (occupies 3.5" bracket)

Limitation of PSU

Primary PSU slot: 190mm (Removal of 3.5" drive cage eliminates PSU depth limitation)

Secondary PSU slot: 130mm

Front I/O Port

USB Type-C x 1

USB 3.0 x 2

LED Indicators

Power status x 1

HDD activity x 1

LAN activity x 2

Dimension

Incl. rear fan cage:

440mm (W) x 220mm (H) x 530mm (D), 51.3 liters

Excl. rear fan cage:

440mm (W) x 220mm (H) x 485mm (D), 46.95 liters

Net Weight

11.47 kg

Extra

Side switch for chassis intrusion security

Notes

* For dual CPU cooler installation, please refer to the manual for detailed limitations.

* See RMS series rail slide compatibility
