SPECIFICATIONS:
HARDWARE
Management Type
Web Managed
Number of Ports
20
10GbE SFP+
2
10GbE BASE-T (RJ45)
2.5GbE (RJ45)
16
Total PoE Ports
18
PoE PSE (802.3af, 15.4W)
Port 1-16
PoE+ PSE (802.3at, 30W)
PoE++ PSE (802.3bt, 90W)
Port 19-20
PoE Power Output
Port 1-16 (30W), Port 19-20 (90W)
Total PoE Power Budget
280W
Power Supply Description
Internal Power Supply Unit
Max. Power Consumption
350W
Input Power Type
AC
Input Voltage Range
100-240VAC, 50/60 Hz
MAC Address Table
32K
Total Non-Blocking Throughput
80Gbps
Switching Capacity
160Gbps
Management Interface
Web
Console
RJ45
Fan
PWM double ball bearing fan x 2
Supported Standards
IEEE 802.3 EthernetIEEE 802.3u 100BASE-TIEEE 802.3ab 1000BASE-TIEEE 802.3z 1000BASE-SX/LXIEEE 802.3an 10G BASE-TIEEE 802.3ae 10G FiberIEEE 802.3x Full-Duplex Flow ControlIEEE 802.1Q VLAN TaggingIEEE 802.3ad LACPIEEE 802.1AB LLDPIEEE 802.3af/at/bt Power-over-Ethernet (PoE)
Form Factor
Rackmount
LED Indicators
Per Port: Speed/Link/ActivityPer System: Status/PoE/Fan
Buttons
Reset button
Dimensions (HxWxD)
43.5 x 285 x 234.8 mm
Weight (Net)
2.08 kg
Weight (Gross)
2.13 kg
Operating Temperature
0˚C to 40°C (32°F to 104°F)
Relative Humidity
5~95% Non-condensing
Certifications
CE, FCC, VCCI, BSMI
Electromagnetic Compliance
CLASS A
Jumbo Frames
9K
SOFTWARE
Standards Compliance
IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5GBase-T
IEEE 802.3an 10G BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.3af/at/bt Power over Ethernet(PoE)
Port Management
Port status
Port statistics
Port configuration
Jumbo frame support
IEEE 802.3x flow control
Auto-negotiation of speed and duplex modes
PoE
Power consumption monitor
PoE scheduling
VLAN
VLAN configuration
IEEE 802.1Q-based VLAN
Layer 2 Features
LACP
IGMP snooping v2
QoS
Port-based QoS
VLAN-based QoS
Traffic
MAC address table
Rate limit
Security
Access Control Lists (ACL): ACL by IP address
Firmware management
Firmware Live Update
Firmware Manual Update
Other Features
Link Layer Discovery Protocol (LLDP): LLDP remote device
Interface: Web UI
SNTP, DNS, DHCP client entry
Loop protection
Port mirror
OTHERS
Package Content

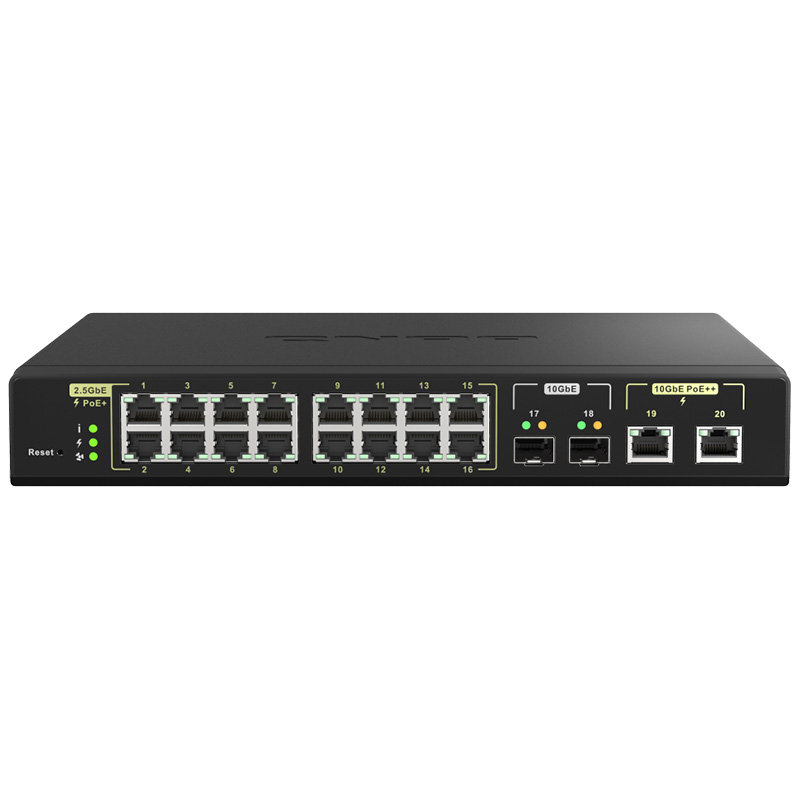

QSW-M2116P-2T2S
Power Cord
Rackmount kit
Rubber feet
Quick Installation Guide
