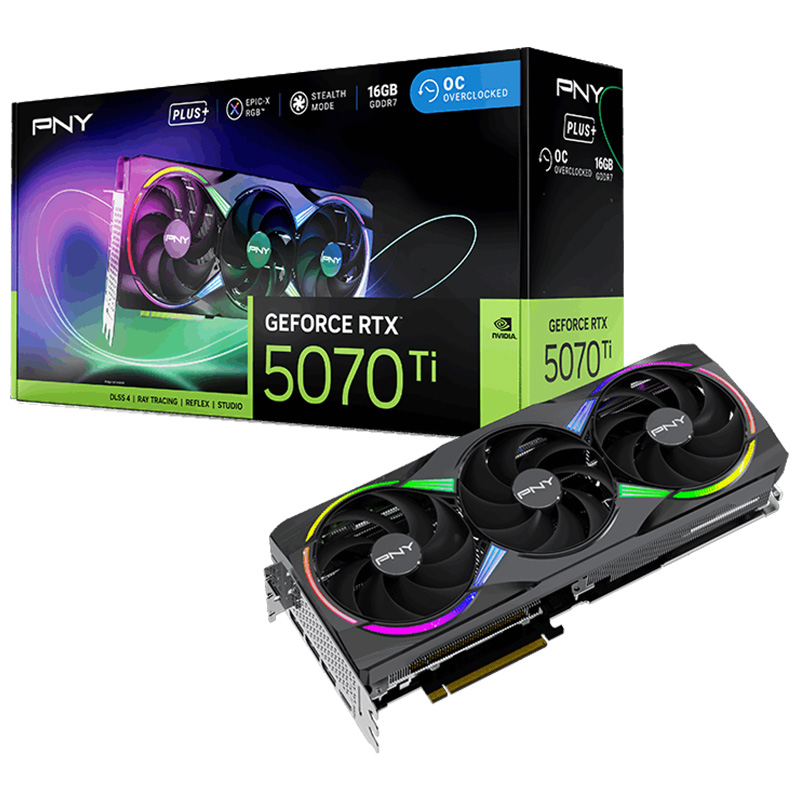

PNY GeForce RTX 5070 Ti ARGB Triple Fan Plus OC 16G Graphics Card (VCG5071T16TFXXPB1-O)
PNY GeForce RTX 5070 Ti ARGB OC Triple Fan Plus – Blackwell architecture with 8,960 CUDA cores, 2.295 GHz base, 2.640 GHz boost, 16 GB GDDR7 on a 256‑bit bus, 28 Gbps memory, 300 W TDP, PCIe 5.0 x16, 4‑display DP 2.1b/HDMI 2.1b support.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Architecture
Blackwell
CUDA® Cores
8,960
Clock Speed
2295 GHz
Boost Speed
2640 GHz
Memory Speed (Gbps)
28
Memory Size
16GB GDDR7
Memory Interface
256-bit
Memory Bandwidth (GB/sec)
Up to 896
TDP
300 W
NVLink
Not Supported
Outputs
DisplayPort 2.1b (x3), HDMI® 2.1b
Multi-Screen
4
Resolution
4K at 480Hz or 8K at 165Hz with DSC*
* Up to 4K 12-bit HDR at 480Hz with DP 2.1b + DSC or HDMI® 2.1b +DSC. Up to 8K 12-bit HDR at 165Hz with DP 2.1b + DSC. Up to 8K 12-bit HDR at 120Hz With HDMI® 2.1b + DSC. With dual DP 2.1b + DSC, up to 8K HDR at 100Hz
Power Input
16-pin (One 16-pin to Three 8-pin)
Bus Type
PCI-Express 5.0 x16
Card Dimensions
12.93" x 5.42" x 2.35"; 3 Slot
Box Dimensions
15.94" x 7.83" x 4.06"
System Requirements
PCI Express-compliant motherboard with one 3-width x16 graphics slot
Three 8-pin supplementary power connectors
750 W or greater system power supply*
Microsoft Windows® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit
Internet connection*
*Minimum is based on a PC configured with a Ryzen 9 5900X processor. Power requirements can be different depending on system configuration.
*Graphics Card driver is not included in the box; GeForce Experience will download the latest GeForce driver from the Internet after install.
Package Contents
PNY GeForce RTX™ 5070 Ti ARGB OC Triple Fan Plus
1 x Auxiliary Power Cable
1x GPU Support Kit
Product Name:
PNY GeForce RTX 5070 Ti ARGB Triple Fan Plus OC 16G Graphics Card (VCG5071T16TFXXPB1-O)
