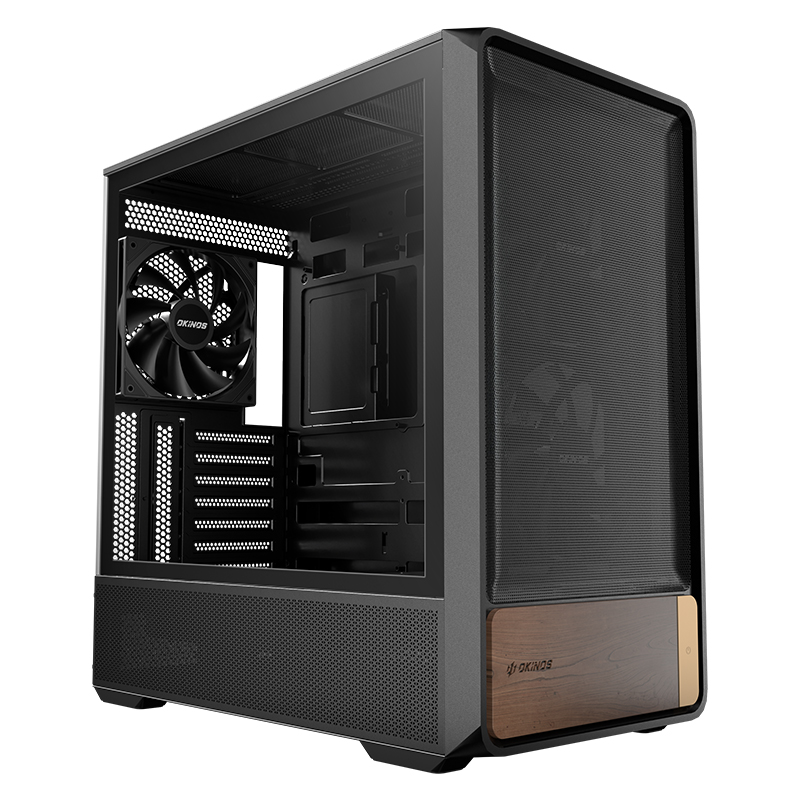

Okinos Air Cross TG Mid Tower ATX Case (CAO-AIRCROSS)

Dimensions

468 x 238 x 462mm (DWH)

Form Factor

Mid Tower

Materials

Steel + Plastic + Wood

Mainboard Support

ATX, Micro-ATX , ITX

Front Access & Controls

Power, Reset ,USB3.0 x 2, Type-C 3.2 Gen 2 (10Gbps) x 1, Headphone/Mic Combo Jack

Side Panel

4mm Tempered Glass

DRIVE BAYS

Expansion Slots

7

3.5″

1

2.5″

2

FAN

Front

2x140mm

Top

3×120/2x140mm

Power Supply Shroud

2x120mm

Rear

1×120/1x140mm

Included Fan(s)

2 x 140mm H14C PWM Fans at the front + 2 x 120mm H12CR PWM Reverse Fans on the power supply shroud + 1 x 140mm H14 PWM Fan at the rear + 1-to-3 PWM splitter cable

RADIATOR SUPPORT

Top

360/280/240/140/120mm

Rear

120mm

CLEARANCE

Max GPU Length

≤400mm

Max CPU Cooler Height

≤180mm

Max PSU Length

(Without   cable)≤ 170mm

MISCELLANEOUS

Dust Filter

Bottom

Net Weight

8.17 Kg

Gross Weight

9.74   Kg
