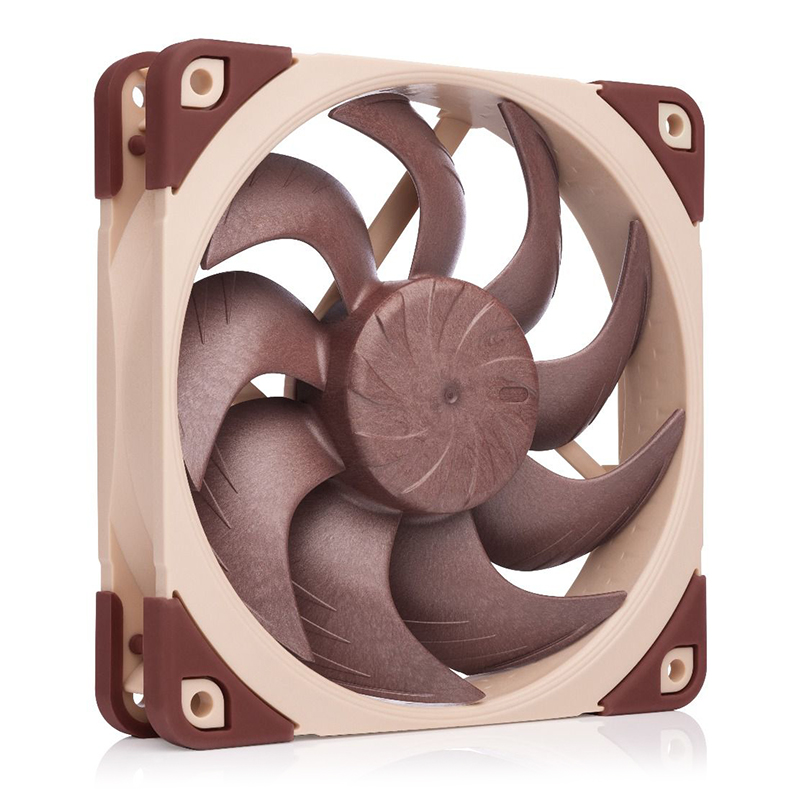

Noctua 120mm NF-A12x25 G2 LS-PWM Fan (NF-A12x25 G2 LS-PWM)

120×120×25 mm fan with 4‑pin PWM, SSO2 bearing and progressive‑bend impeller in Sterrox® LCP. 1100 RPM (850 RPM with L.N.A.), 66.3 m³/h airflow, 11.8 dB(A) noise, 1.08 mm H₂O pressure, 12 V, 1.8 W, >150k h MTTF. Includes L.N.A., cables, mounts.

or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time : Question Mark

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery: Question Mark

- +

Want to be notified when this item is back in stock?

Please enter a valid email address

Your Store

Your store is set to:

Check live stock level

Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

Product Name:

Noctua 120mm NF-A12x25 G2 LS-PWM Fan (NF-A12x25 G2 LS-PWM)
Model Number:

NF-A12x25 G2 LS-PWM
Brand:

Noctua
Warranty Period:

6 Year

Description

SPECIFICATIONS:

Size	120x120x25 mm
Mounting hole spacing	105x105 mm
Connector & pin-configuration	4-pin PWM
Cable length	20cm + 30cm NA-EC1 extension cable
Bearing	SSO2
Blade geometry	Progressive-Bend impeller
Frame technology	AAO (Advanced Acoustic Optimisation)
Material	Sterrox® LCP
Rotational speed (+/- 10%)	1100 RPM
Rotational speed with L.N.A. (+/- 10%)	850 RPM
Airflow	66.3 m/h
Airflow with L.N.A.	45.2 m/h
Acoustical noise	11.8 dB(A)
Acoustical noise with L.N.A.	7.8 dB(A)
Static pressure	1.08 mm H₂O
Static pressure with L.N.A.	0.56 mm H₂O
Input power (max.)	1.8 W
Max. input current	0.15 A
Operating voltage	12 V
MTTF	> 150,000 h
Scope of delivery	NA-RC8 Low-Noise Adaptor (L.N.A.) NA-YC1 4-pin PWM splitter cable NA-EC1 30cm extension cable 4x NA-AV2 anti-vibration mounts NA-AVG1 anti-vibration gasket for water cooling radiators Fan screws
