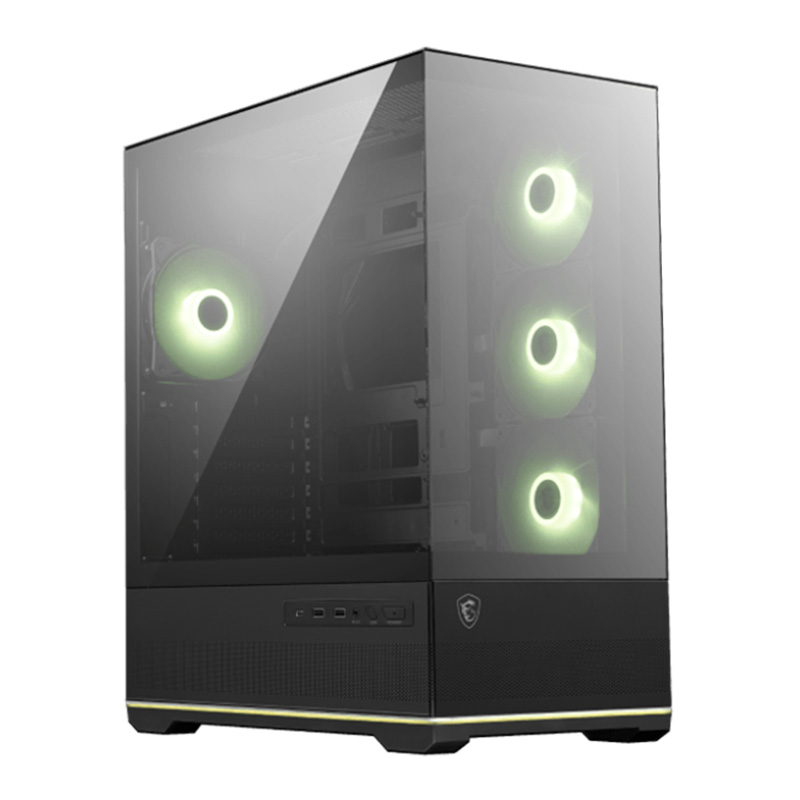

MSI MAG PANO 110R PZ Mid-Tower ATX Case - Black (MAG PANO 110R PZ)
Mid‑tower case supporting ATX, Micro‑ATX & Mini‑ITX, with 7 expansion slots. Offers 2×2.5", 2×3.5" & 2×2.5"/3.5" combo bays, 200 mm PSU, 400 mm GPU & 160 mm CPU cooler clearance. Pre‑installed ARGB: 3 × 120 mm side, 1 × 120 mm rear. Additional fan support: top 3×120 mm/2×140 mm, bottom 3×120 mm. Top radiator up to 360 mm. Front I/O: 1 × USB‑C 20 Gbps, 2 × USB‑A 5 Gbps, audio‑out/mic‑in, LED & power buttons.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Form Factor
Mid-Tower
I/O Ports
1 x USB 20Gbs (Type-C)
2 x USB 5Gbs (Type-A)
1 x Audio-Out / Mic-in
1 x LED Button
1 x Power Button
Drive Mount Support
2 x 2.5“
2 x 3.5“
2 x 2.5"/3.5" combo
Case Expansion Slots
7
Maximum PSU Length
200 mm / 7.87 inches
Maximum GPU Length
400 mm / 15.75 inches
Maximum CPU Cooler Length
160 mm / 6.30 inches
Lighting
Side: 3 x ARGB Fan (Reverse Blades Fan)
Rear: 1 x ARGB Fan
Power Supply (not included)
ATX
Fan Size Support
Top: 3 x 120 mm / 2 x 140 mm
Front: NA
Rear: 1 x 120 mm
Side: 3 x 120 mm / 2 x 140 mm
Bottom: 3 x 120 mm (Above the power shroud)
Pre-installed Fan
Side: 3 x 120 mm
Rear: 1 x 120 mm
Radiator Layout
Top: 120 / 140 / 240 / 280 / 360 mm
Front: NA
Rear: 120 mm
Side: NA
Bottom: NA
Support MB Form Factor
Regular:
ATX / Micro-ATX / Mini-ITX
Back-connect:
ATX / Micro-ATX
Dimension
420 x 225 x 485 mm / 16.54 x 8.86 x 19.09 inches
Product Name:
MSI MAG PANO 110R PZ Mid-Tower ATX Case - Black (MAG PANO 110R PZ)
