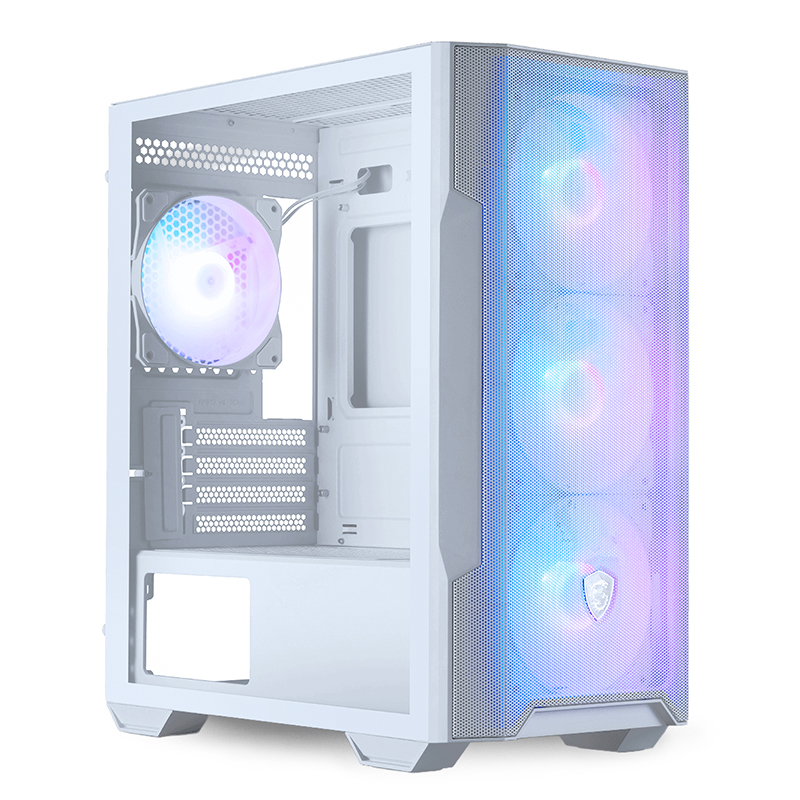

MSI MAG Forge M100R mATX Case - White (MAG FORGE M100R WHITE)
Micro ATX tower case with 4 expansion slots, supports up to 300 mm GPU and 160 mm CPU cooler. Includes 4 ARGB 120 mm fans (3 front, 1 rear), front/top radiator up to 240 mm, 2×2.5″ + 1×2.5″/3.5″ + 1×3.5″ drive bays, USB 2.0/3.2 front I/O.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Case Form Factor
Micro ATX Tower
Motherboard Form Factor Support
Micro-ATX / Mini-ITX
I/O Ports
2x USB 2.0 Type-A
1x USB 3.2 Gen 1 Type-A
1x Audio
1x Mic
Drive Mount Support
2x 2.5"
1x 2.5" / 3.5"
1x 3.5"
Expansion Slots
4
Maximum GPU Length
300 mm / 11.81 inches
Maximum CPU Cooler Height
160 mm / 6.3 inches
Power Supply Support
ATX
Maximum PSU Length
300 mm / 11.81 inches (without 3.5" HDD tray installed)
Fan Size Support
Front: 3 x 120 mm
Top: 2 x 120 mm
Rear:1 x 120 mm
Pre-installed Fan Size
Front: 3 x 120mm
Rear: 1 x 120mm
Pre-installed Fan Type
Front: 3 x ARGB Fan
Rear: 1 x ARGB Fan
Radiator Size Support
Front: 120 / 240 mm
Top: 120 / 240 mm
Rear: 120 mm
Dimensions (DxWxH)
388 x 200 x 423mm / 15.28 x 7.87 x 16.65 inches
Net Weight
4.14 kg / 9.13 lbs
Gross Weight
5.03 kg / 11.09 lbs
Connection
Power Button
Reset Button
Mic in / Audio out
2x USB 2.0 Type-A
1x USB 3.2 Gen 1 Type-A
LED Switch Button
Product Name:
MSI MAG Forge M100R mATX Case - White (MAG FORGE M100R WHITE)
