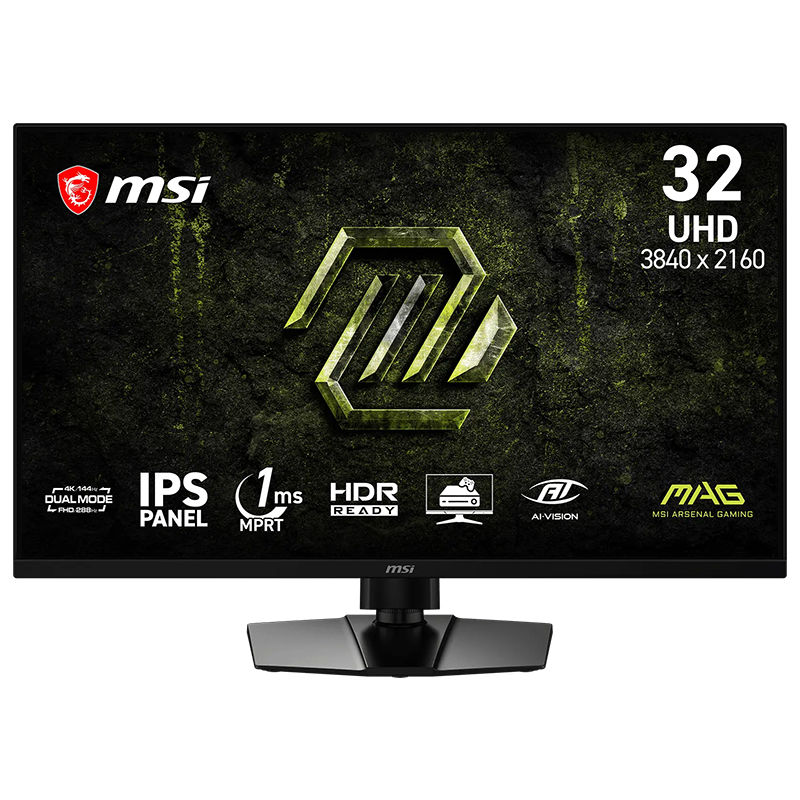

MSI MAG 321UPD E14 31.5in 4K UHD 144Hz / FHD 288Hz IPS Dual Mode Gaming Monitor (MAG 321UPD E14)

Active Display Area (mm)

697.3056 (H) × 392.2344 (V)

Curvature

Flat

Panel Type

IPS

Panel Resolution

Normal: 3840 × 2160 (UHD)

Dual Mode: 1920 × 1080 (FHD)

Pixel Pitch (H x V)

0.18159 (H) × 0.18159 (V)

Aspect Ratio

16:9

Brightness (nits)

SDR: 300 cd/m²

Contrast Ratio

1500:1 (Typ.)

DCR

100000000:1

Signal Frequency

Normal: 108~324 KHz(H) / 48~144 Hz(V)

Dual Mode: 54~324 KHz(H) / 48~288 Hz(V)

Activated Range

Normal: 48~144Hz

Dual Mode: 48~288Hz

Refresh Rate

Normal: 144Hz

Dual Mode: 288Hz

Response time

1ms MPRT

Dynamic Refresh Rate Technology

AMD FreeSync™ Premium

HDR Support

HDR Ready

Video ports

1 × DisplayPort 1.4a (HBR3)

2 × HDMI™ 2.1 (FRL 12G) (4K@144Hz)

Audio ports

1x Headphone-out

Viewing Angle

178° (H) / 178° (V)

Adobe RGB / DCI-P3 / sRGB

91% / 94% / 132% (CIE1976 Standard)

Surface Treatment

Anti-glare

Display Colors

1.07B, 10 bits (8 bits + FRC)

Console Mode

Supported Resolution & Refresh Rate:

1080p: 60Hz and 120Hz

1440p: 60Hz and 120Hz

2160p: 60Hz and 120Hz

HDMI™ CEC: Supported

VRR: PS5 and Xbox Supported

Power Type

Internal Power Board

Power Input

100~240V, 50/60Hz

Adjustment (Tilt)

-5° ~ 15°

Adjustment (Swivel)

-30° ~ 30°

Adjustment (Pivot)

-12° ~ 12°

Adjustment (Height)

0 ~ 100 mm

Kensington Lock

Yes

VESA Mounting

100 x 100 mm

Dimension with Stand (W x D x H)

713.94 x 261.89 x 563.85 mm

(28.11 x 10.31 x 22.20 inch)

Dimension without Stand (W x D x H)

713.94 x 61.09 x 420.15 mm

(28.11 x 2.41 x 16.54 inch)

Weight Without Stand

5.5 kg (12.13 lbs)

Weight (NW / GW)

8.25 kg (18.19 lbs) / 11.9 kg (26.24 lbs)

Carton Dimension (W X D X H)

944 x 150 x 514 mm

(37.17 x 5.91 x 20.24 inch)

Accessories

1× DisplayPort Cable (1.4a), 1× Power Cord (C13), 1× Quick Guide

Note

HDMI™: Normal (UHD): 3840 × 2160 (Up to 144Hz)

Dual (FHD): 1920 × 1080 (Up to 288Hz)

DisplayPort: Normal (UHD): 3840 × 2160 (Up to 144Hz)

Dual (FHD): 1920 × 1080 (Up to 288Hz)

Support: HDMI™ CEC, PIP/PBP

Non Support: KVM
