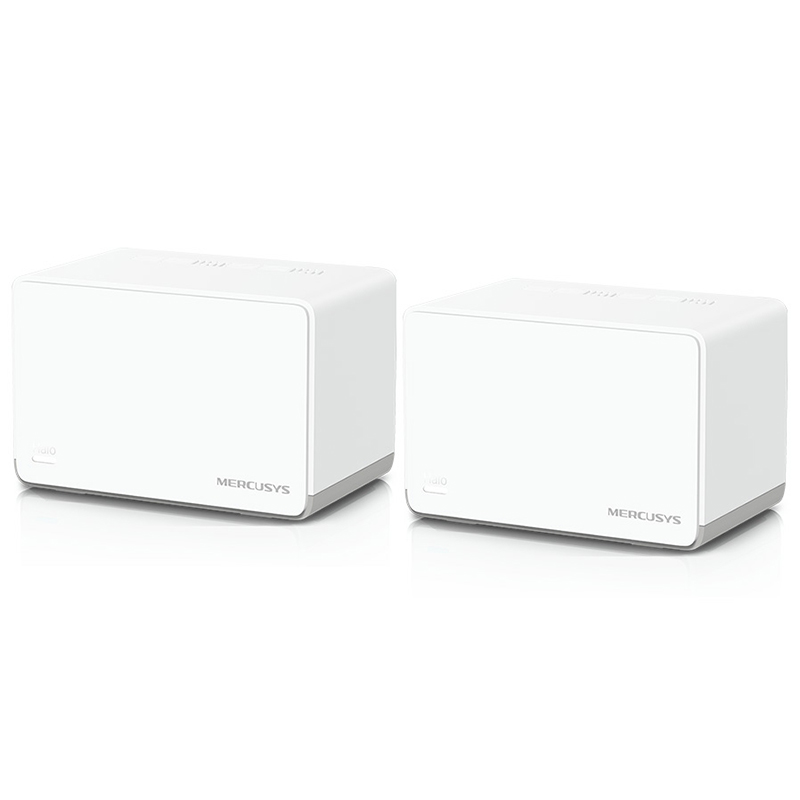

Mercusys AX1800 Whole Home Mesh WiFi 6 System (Halo H70X(2-pack))

Wireless Standards

Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

1201 Mbps on 5 GHz, 574 Mbps on 2.4 GHz

Reception Sensitivity

2.4GHz:

11g 6Mbps:-96.5dBm

11g 54Mbps:-78dBm

11AX HE20 MCS0:-96.5dBm

11AX HE20 MCS11:-65dBm

11AX HE40 MCS0:-93.5dBm

11AX HE40 MCS11:-63dBm

5GHz:

11a 6Mbps:-96dBm

11a 54Mbps:-78dBm

11ac VHT20 MCS8:-74.5dBm

11ac VHT40 MCS9:-70.5dBm

11ac VHT80 MCS9:-66.5dBm

11AX HE20 MCS11:-66dBm

11AX HE40 MCS11:-63dBm

11AX HE80 MCS11:-61dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)

5 GHz < 23dBm (EIRP)

Wireless Security

WPA-PSK/WPA2-PSK/WPA3

Mesh protocol

802.11k/v/r

HARDWARE

Dimensions

5 × 3.2 × 3.3 in (128 × 81 × 83.7 mm)

Interfaces

3× Gigabit Ports per Halo Unit

(WAN/LAN auto-sensing)

Button

Reset button

SOFTWARE

Operation Mode

Router, Access Point

Quality of Service

WMM

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Local Management, Remote Management, Multi-Managers

Firewall Security

SPI Firewall

Protocols

Supports IPv4 and IPv6

Guest Network

2.4 GHz Guest Network,

5 GHz Guest Network

DHCP

Server, Client

OTHERS

Network Services Enabled by Default

Web Server

Manage and configure device through web (HTTP/HTTPS)

• Port: 80/443; Protocol: TCP

DHCP Server

IP address assignment (DHCP)

• Port: 67; Protocol: UD

DNS

DNS

• Port: 53; Protocol: TCP & UDP

App management

Manage and configure device through app

• Port: 20001; Protocol: TCP

• Port: 20002; Protocol: UDP

Package Contents

2× Halo H70X Units

1× RJ45 Ethernet Cable

2× Power Adapters

Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing
