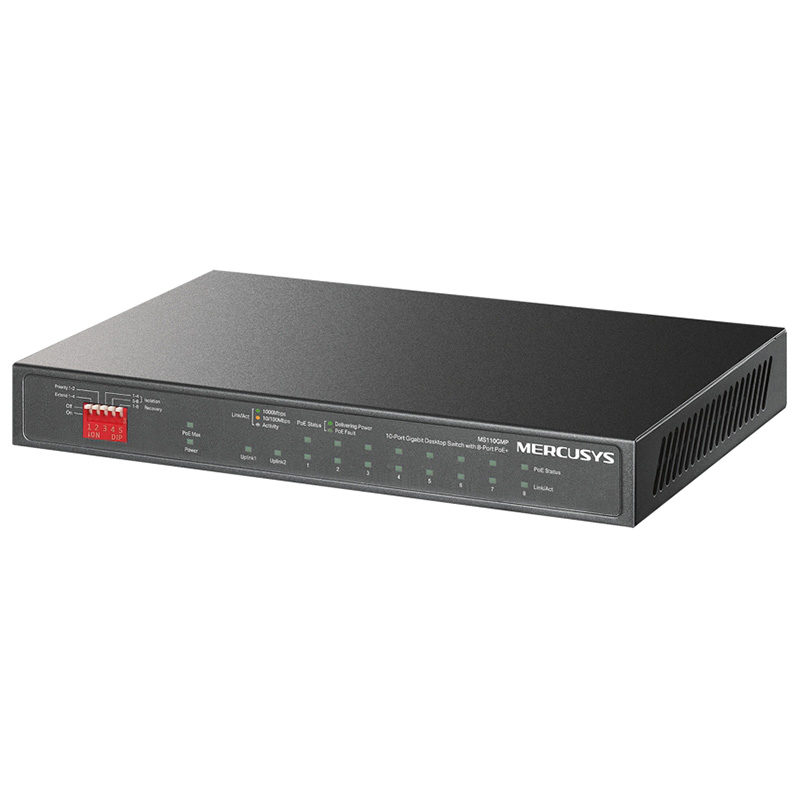

Mercusys 10-Port Gigabit Desktop Switch with 8-Port PoE+ As a 10-port gigabit desktop switch with 8 PoE+ ports, MS110GMP is ideal for a wide range of applications, such as surveillance for offices, dormitories, and small businesses.
8× gigabit PoE+ ports, and 2× Gigabit Uplink Ports
8× PoE+ ports transfer data and power via a single cable with a total power budget of 111 W*
Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
Up to 250 m data and power transmission range under Extend Mode**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
Isolation Mode allows one-click client traffic separation for higher security and performance
Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
Plug and play with no configuration required
Fanless design reduces power consumption and works silently in its location
SPECIFICATIONS:
SOFTWARE
Transfer Method
Store-And-Forward
Advanced Features
• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
• Priority Mode Button (Ports 1–2)
• Isolation Mode Button (Ports 1–4 / 5-8)
• PoE Auto Recovery (Ports 1-8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
• 482.17 BTU/h (220V / 50Hz with 123 W PD connected)
PERFORMANCE
Packet Forwarding Rate
14.88 Mpps
OTHERS
Certifications
FCC, CE, RoHS
Package Contents
• MS110GMP
• Power Adapter
• Installation Guide
Environment
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
Notes
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
