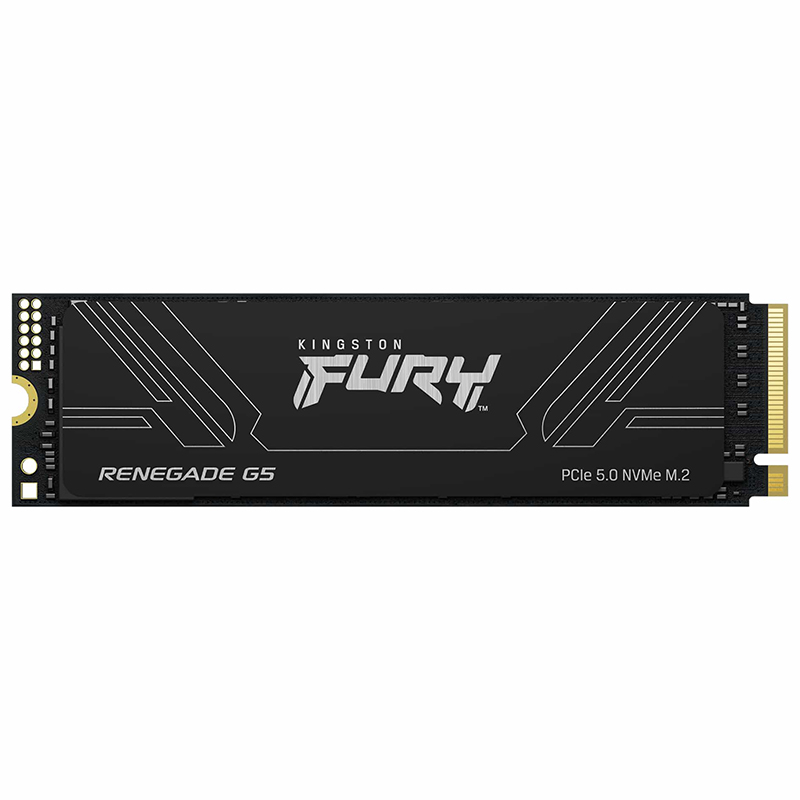

1TB M.2 2280 PCIe 5.0 x4 NVMe SSD with SM2508 controller, 3D TLC NAND, DRAM cache, DirectStorage support, up to 14,200 MB/s read, 11,000 MB/s write, 2.2M/2.15M IOPS, 1 PB TBW, 0.27W avg power.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Form Factor
M.2 2280
Interface
PCIe 5.0 x4 NVMe
Capacity
1TB
Controller
SM2508
NAND
3D TLC
DRAM Cache
Yes
DirectStorage Supported
Yes
Sequential Read/Write1
Up to 14,200/11,000MB/s
Random 4K Read/Write1
Up to 2,200,000/2,150,000 IOPS
Endurance (Total bytes written)3
1.0PB
Power Consumption4
0.27W Avg / 6.6W @ 14.2G / 6.6W (MAX)
Storage Temperature
-40°C~85°C
Operating Temperature
0°C~70°C
Dimensions
80mm x 22mm x 2.3mm
Weight
7.3g
Vibration Operating
2.17G Peak (7-800Hz)
Vibration Non-operating
20G Peak (20-1000Hz)
MTBF
2,000,000 hours
Notes
This SSD is designed for use in desktop and notebook computer workloads and is not intended for Server environments.
1. Based on “Fresh out-of-box performance”, Sequential R/W using PCIe 5.0 Ryzen5 7600X CPU and X670E Motherboard, Random R/W using Intel Ultra7 and Z890 Motherboard. Speed may vary due to host hardware, software, and usage.
2. Some of the listed capacity on a Flash storage device is used for formatting and other functions and thus is not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston's Flash Memory Guide.
3. Total Bytes Written (TBW) is derived from the JEDEC Client Workload (JESD219A).
4. Average power consumption is based on Mobilemark™ workload. Max power consumption is based on typical value.
