Home>PC Parts>Peripherals>Keyboards> Keychron Q3 HE QMK Wireless Magnetic Custom Keyboard Hall Effect Gateron Double-Rail Nebula Switch - Black (KBKCQ3HM1)

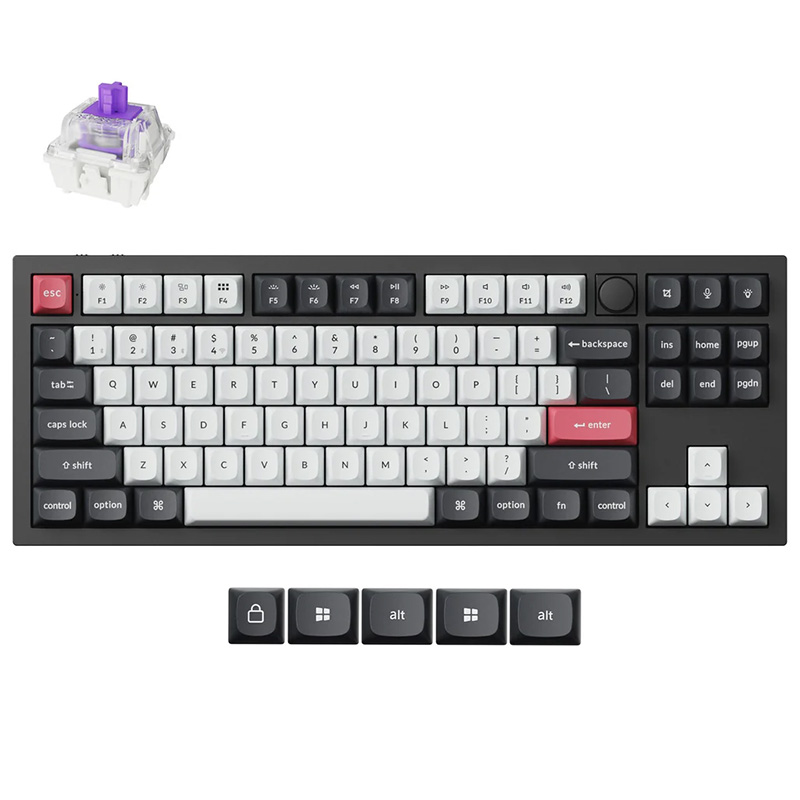

Keychron Q3 HE QMK Wireless Magnetic Custom Keyboard Hall Effect Gateron Double-Rail Nebula Switch - Black (KBKCQ3HM1)
Aluminum Q3 HE: 137×365mm, 5.2° tilt, Gateron double‑rail magnetic Nebula hot‑swappable switches (0.2‑3.8 mm actuation), 1000 Hz polling, NKRO, rapid trigger, 22 RGB modes + South LED, 4000 mAh battery, 100 h BT life.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Width
137 mm
Length
365 mm
Front Height
22.6 mm(without keycaps)
Back Height
35.8 mm (without keycaps)
Feet Height
2.4 mm
Angle
5.2°
Weight
1775 g ± 10 g (Fully Assembled version)
Body Material
Aluminum
Plate Material
Aluminum
Polling Rate
1000 Hz (Wired and 2.4 GHz) / 90Hz (Bluetooth)
N-Key Rollover (NKRO)
Yes for both wireless and wired modes
Rapid Trigger
Yes
Adjustable Actuation Points
0.2 - 3.8 mm
Dynamic Keystrokes
4-in-1 action keys
Sensitivity
0.1 mm
N-Key Rollover (NKRO)
Yes for both wireless and wired modes
Keycap
OSA Double-shot keycaps, not shine-through
MCU
ARM Cortex-M4 32-bit STM32F402RC (256KB Flash)
Backlight
22 types of RGB backlight options plus South-facing RGB LED
Switch
Gateron double-rail magnetic Nebula switch
Hot-swappable Support
Yes, compatible with Gateron double-rail magnetic switch only.
Stabilizer
Screw-in PCB stabilizer
Cable
Type-C cable (1.8 m) + Type-A to Type-C adapter
Connectivity
2.4 GHz / Bluetooth / Type-C wired
Bluetooth Version
5.2
Bluetooth Device Name
Keychron Q3 HE
Battery
4000 mAh Rechargeable li-polymer battery
Operating Environment
-10 to 50℃
Wireless Working Time (Backlit off)
Up to 100 hours
Product Name:
Keychron Q3 HE QMK Wireless Magnetic Custom Keyboard Hall Effect Gateron Double-Rail Nebula Switch - Black (KBKCQ3HM1)
