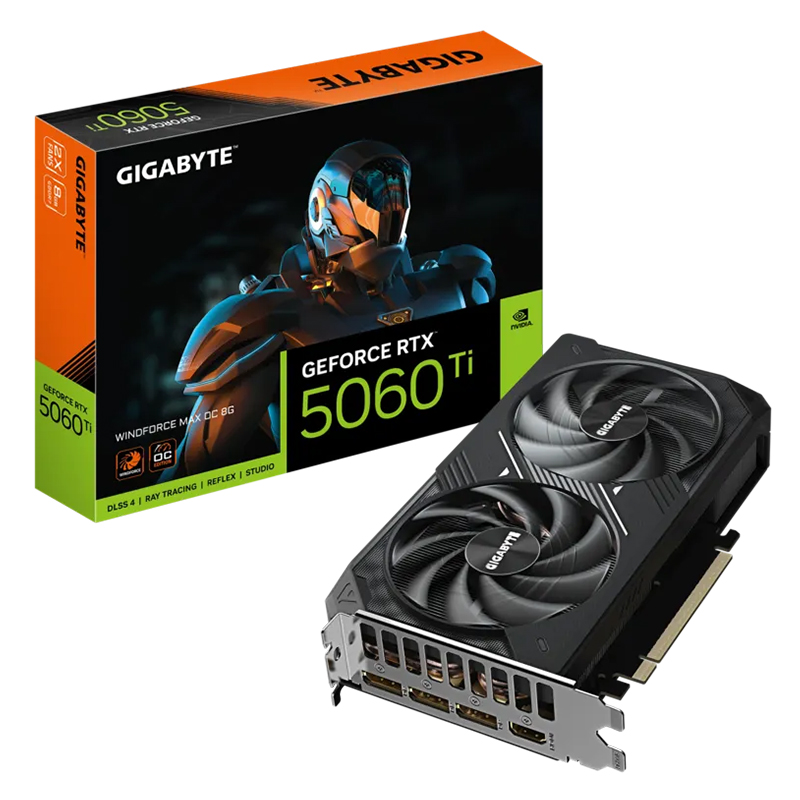

Gigabyte GeForce RTX 5060 Ti WindForce MAX OC 8G Graphics Card (GV-N506TWF2MAX OC-8GD)
GeForce RTX™ 5060 Ti graphics card delivers 2587 MHz boost, 4608 CUDA cores, 8 GB GDDR7 (28 Gbps) on a 128‑bit bus via PCI‑E 5.0. Features three DisplayPort 2.1b and one HDMI 2.1b outputs. Requires 650W PSU, 8‑pin connector.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Graphics Processing
GeForce RTX™ 5060 Ti
Core Clock
2587 MHz (Reference card :2572 MHz)
CUDA® Cores
4608
Memory Clock
28 Gbps
Memory Size
8 GB
Memory Type
GDDR7
Memory Bus
128 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=208 W=120 H=40 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
4.6
Recommended PSU
650W
Power Connectors
8 Pin*1
Output
DisplayPort 2.1b *3
HDMI 2.1b *1
Accessories
Quick guide
Product Name:
Gigabyte GeForce RTX 5060 Ti WindForce MAX OC 8G Graphics Card (GV-N506TWF2MAX OC-8GD)
