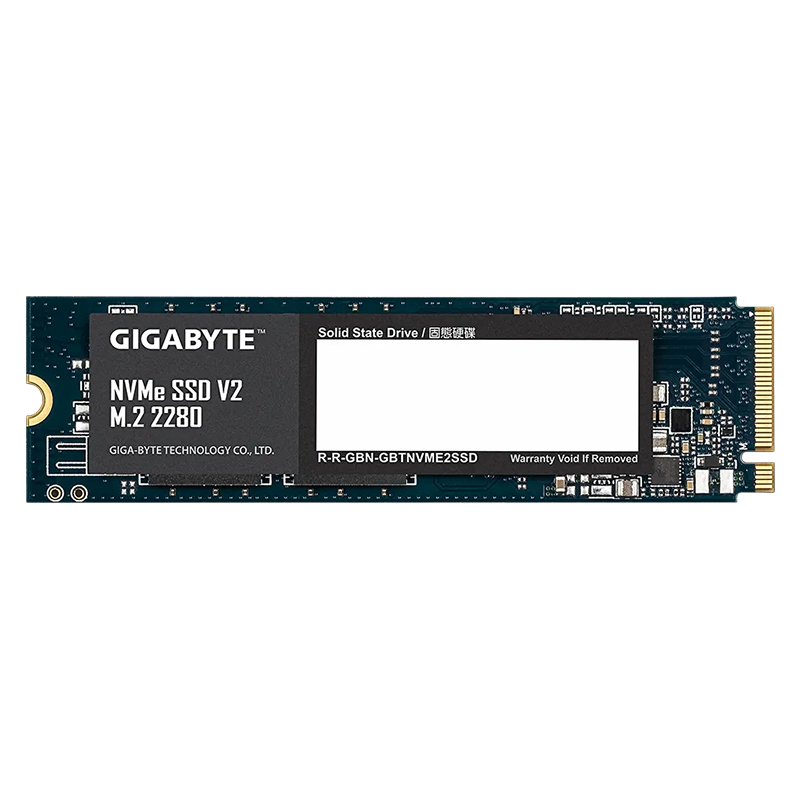

256 GB M.2 2280 NVMe SSD with PCIe 3.0 x4 interface, 3D TLC NAND, up to 3,200 MB/s sequential read and 1,200 MB/s write, 1.5 M‑hour MTBF, 35 mW idle power, dimensions 80×22×2.3 mm, operating 0‑70 °C.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Interface
PCI-Express 3.0 x4, NVMe 1.4
Form Factor
M.2 2280
Total Capacity
256GB
NAND
3D TLC NAND Flash
External DDR Cache
N/A
Sequential Read speed
Up to 3,200 MB/s
Sequential Write speed
Up to 1,200MB/s
Dimension
80 x 22 x 2.3 mm
Mean time between failure (MTBF)
1.5 million hours
Max. Operating Power
Read : 4.2W; Write : 3.0W
Power Consumption (Idle, PS3)
35mW
Power Consumption(PS4, L1.2)
5mW
Temperature (Operating)
0°C to 70°C
Temperature (Storage)
-40°C to 85°C
Note
• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
• Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
• Speeds based on internal testing. Actual performance may vary.
• 1GB = 1 billion bytes. Actual useable capacity may vary.
