SPECIFICATIONS:
GENERAL DATA
Model

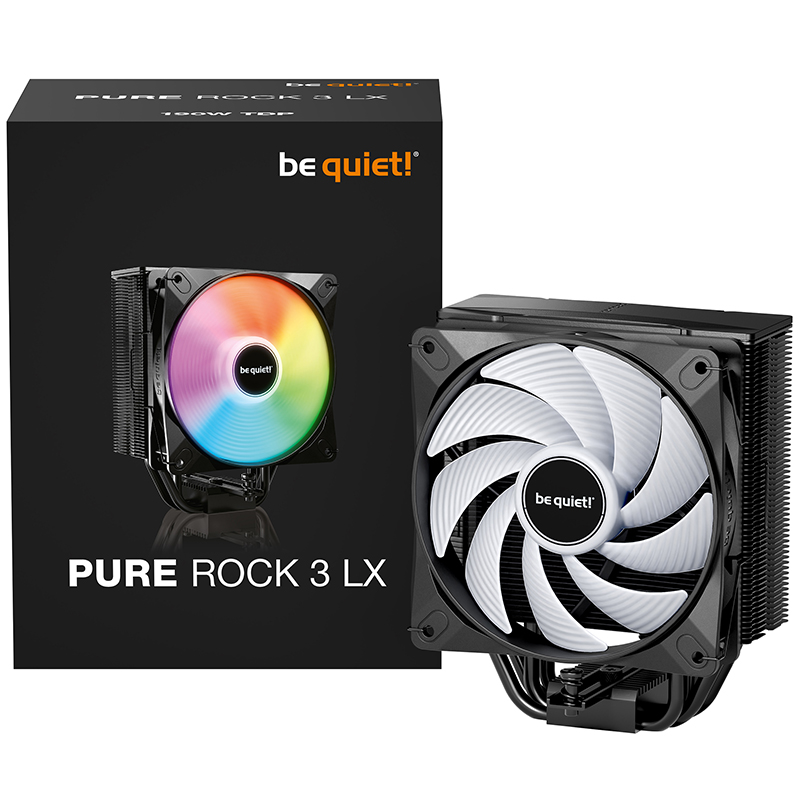

Pure Rock 3 LX
TDP (W)
190
Color option
Black
Overall dimensions without mounting material(L x W x H), (mm)
71 x 124 x 154
Total weight (kg)
0.57
Socket compatibility Intel
1851 / 1700 / 1200 / 1150 / 1151 / 1155
Socket compatibility AMD
AM5 / AM4
Overall noise level (dB(A)) @ 50/75/100% (rpm)
12.4 / 24.4 / 31.2
Number of fans
1
HEATSINK SPECIFICATIONS
Dimensions (L x W x H), (mm)
46 x 124 x 154
Fin material
Aluminum
Surface treatment
Electrophoresis
Base material
Aluminum / Copper
CPU contact surface
Heat pipe direct touch
Heatpipe number / Diameter (mm)
4 / 6
FAN SPECIFICATIONS
Fan model
Light Wings LX 120mm PWM
Fan dimensions (mm)
120 x 25 x 120
Speed @ 100% PWM (rpm)
2000
Airflow at 100% PWM / 12V (CFM / m3/h)
61.8 / 105.1
Air Pressure at 100% PWM / 12V (mm H2O)
2.51
Bearing technology
Rifle
Motor technology
4-pole fan motor
Rated Voltage (V)
12
Input current (A)
0.15
Safety current (A)
0.30
Input power (W)
5.4
Connector
4-pin PWM
Lighting connector
✓
Cable length (mm)
120
Lifespan (h / 25°C)
60,000
ACCESSORIES
Thermal grease (Type)
Applied
Mounting set
Intel & AMD
User manual languages
CN, DE, EN, ES, FR, JP, PL, RU, TW, UA
SAFETY CERTIFICATION
Approvals
CE, UKCA, UL
ENVIRONMENTAL DIRECTIVES
RoHS
WEEE
Triman
