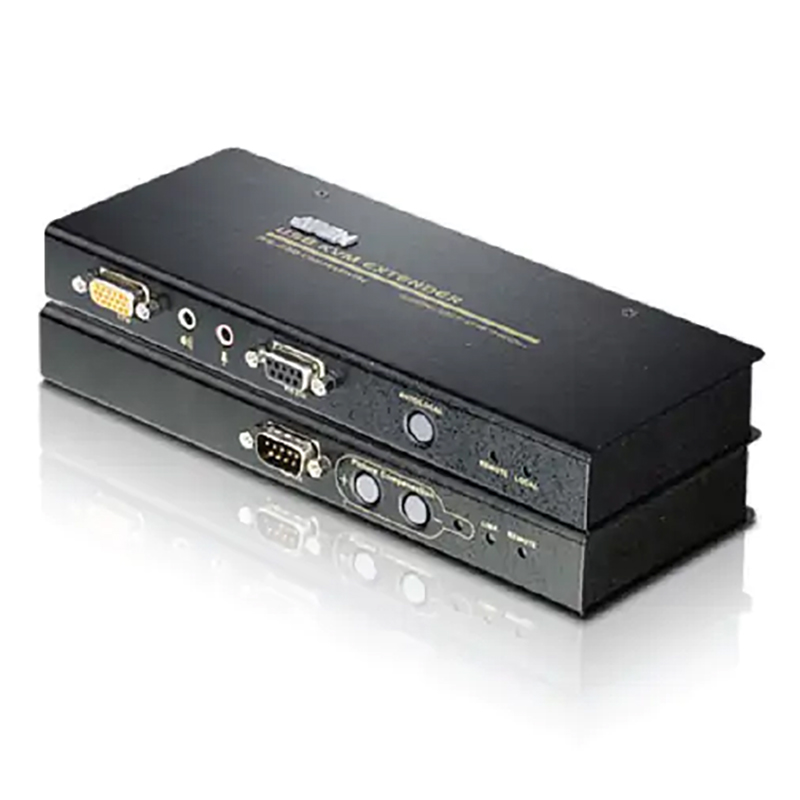

Aten USB Console Extender w/RS-232 port 1600x1200 @ 150m

USB KVM Extender (CE750) reaches 200 m over Cat5e, offers dual local/remote consoles, RS‑232 ports, up to 1920×1200 @ 60 Hz video, automatic/manual gain, USB over‑current protection, hot‑pluggable, rack‑mountable, ESD/surge protection.

Aten USB Console Extender w/RS-232 port 1600x1200 @ 150m
  • 20509
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

- +
Want a stock alert?

Please enter a valid email address

   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post In Stock
    NSW Pickup & Post
    • Post In Stock
    • Villawood Robot Super StoreIcon 3 1-2 Days
    SA Pickup & Post
    • Post In Stock
    • Croydon Robot Super StoreIcon 3 In Stock

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.




CE750
     USB KVM Extender

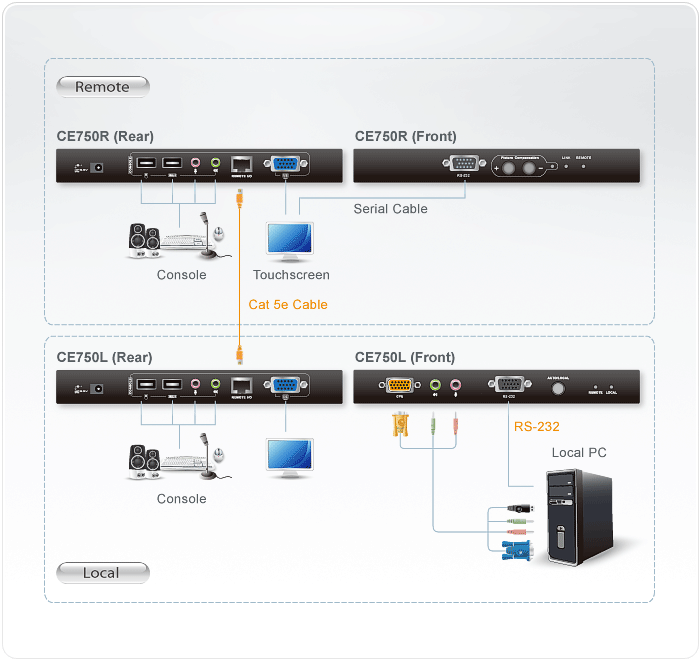

     The CE750 is a USB based KVM Extender with automatic signal compensation and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse).

     Because it allows access to a computer system from a remote console, the CE750 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location ?away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example.

     The CE750 improves on previous designs by the addition of an RS-232 port, on both the Local and Remote Units, that allows you to connect to a serial terminal for configuration (Local Unit), or serial devices such as touchscreens and barcode scanners (Remote Unit)




Package Contents

  • 1x USB KVM Extender (Local Unit)

  • 1x USB KVM Extender (Remote Unit)

  • 1x USB KVM Cable (1.8 m)

  • 2x Power Adapters

  • 1x Mounting Kit

  • 1x User Instructions

Features

  • Local and Remote Units connect at distances up to 200 m using Cat 5e cable

  • Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles

  • Built-in ASIC for greater reliability and compatibility

  • USB Keyboard and USB Mouse Ports

  • RS-232 serial ports - allows you to connect to a serial terminal for configuration (Local Unit), or serial devices such as touchscreens and barcode scanners (Remote Unit)

  • Supports stereo speakers and stereo microphone

  • USB overcurrent detection and prevention

  • Pushbutton operating mode selection (Local Unit only) -select between Local and Auto operating modes.

  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection

  • Adjustable gain control - automatically and manually adjusts signal strength to compensate for distance

  • High resolution video - up to 1920 x 1200 @ 60 Hz (30m),1600 x 1200 @ 60 Hz (150m),1280 x 1024 @ 60 Hz (200m)

  • Supports Wide Screen formats *

  • Supports VGA, SVGA, SXGA (1280 x 1024) and UXGA (1600 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B

  • Hot pluggable

  • Rack mountable

  • Easy to install - no software required - connecting cables to the devices is all it takes

  • Multiplatform support - Windows, Linux, FreeBSD

         * The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator.

Console Ports

Keyboard 1 x USB Type A Female (White)
   Video 1 x HDB-15 Female (Blue)
   Mouse 1 x USB Type A Female (White)
   Speaker 1 x Mini Stereo Jack Female (Green)
   MIC 1 x Mini Stereo Jack Female (Pink)
   Unit to Unit 1 x RJ-45 Female
     Power 1 x DC Jack

RS-232

CE750L: 1 x DB-9
   Female (Black)

CE750R: 1 x DB-9
     Male (Black)

KVM Ports

CE750L

Keyboard/ Video / Mouse 1 x SPHD-15 Female (Yellow)
     Speaker 1 x Mini Stereo Jack Female (Green) N/A
     MIC 1 x Mini Stereo Jack Female (Pink)

LEDs

CE750L

Local 1 (Green)
     Remote 1 (Green)

CE750R

Link 1 (Green)
     Picture Compensation 1 (Orange)

PushbuttonsOperating
   Mode Selection CE750L 1 x Pushbutton
   Picture Compensation CE750R 2 x Pushbuttons
EmulationKeyboard / Mouse USB
Video1920x1200@60Hz at 30m; 1600x1200@60Hz at 150m; 1280x1024@60Hz at 200m
Power Consumption

CE750L DC5.3V/3.0W

CE750R DC5.3V/4.2W

EnvironmentOperating Temp. 0-50C
   Storage Temp. -20-60C
   Humidity 0-80% RH, Non-condensing
Physical PropertiesHousing Metal
   Weight 0.49 kg
   Dimensions
   (L x W x H) 20.00x8.36x2.63cm


* Specifications are subject to change without notice.
* Specifications may vary.
* The product picture(s) is only for your reference, it may differ from the actual product.

Aten USB Console Extender w/RS-232 port 1600x1200 @ 150m

  • Product Name:
    Aten USB Console Extender w/RS-232 port 1600x1200 @ 150m
  • Model Number:
    CE750-AT-U
  • Brand:
    Aten Aten
  • Warranty Period:
    1 Year
