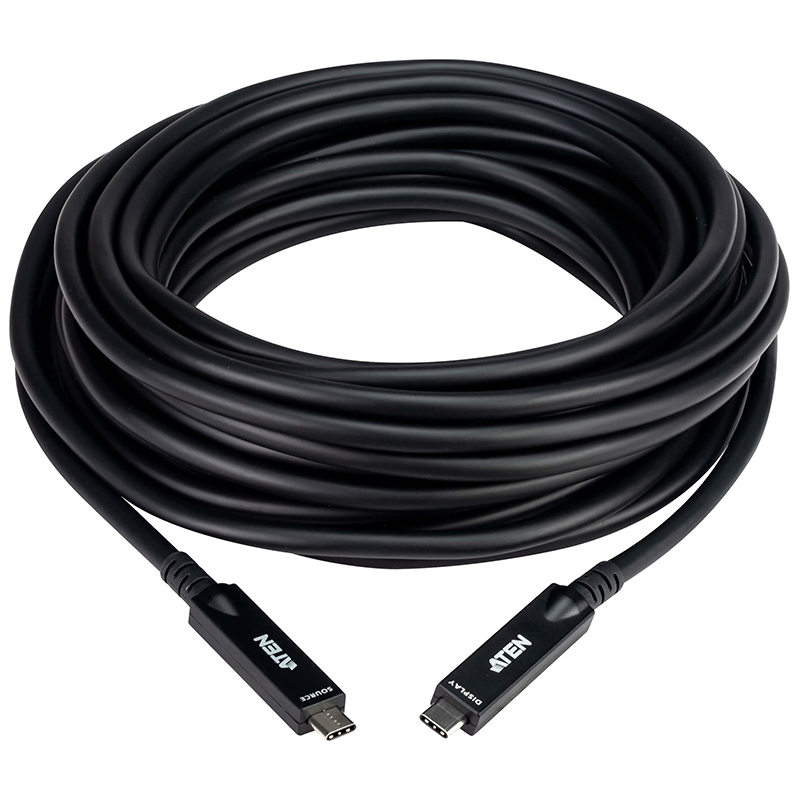

Aten Ultra HD USB-C Active Optical Cable - 10m (UE3410F)

Connectors

USB Port: 1 x USB-C Male

Downstream: 1 x USB-C Male

Cable Type

Hybrid type with optical fiber and copper wire

Cable Length

10 m

Data Rate

Up to 10 Gbps

Power Consumption

DC5V:1.2WBTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

ENVIRONMENTAL

Operating Temperature

0–40°C

Storage Temperature

-20–60°C

Humidity

10-80% RH

JACKETED

Material

PVC

Color

Black

PHYSICAL PROPERTIES

Housing

Connector Case: Zinc-Alloy

Weight

0.77 kg ( 1.7 lb )

OTHERS

Package Contents

1x UE3410F 10 m Ultra HD USB-C Active Optical Cable

1x user instructions

Notes

1. Make sure to plug the SOURCE connector to the output port of a source device and the DISPLAY connector to the input port of a display device.

2. Bending radius of optical cable must exceed 65 mm when the conduit turns direction. Bending or intermediate splicing is absolutely not allowed.

3. Make sure that the two connectors on the cable are not heavily pressed or pressured. They are very fragile. Please handle with care.

4. When laying optical cables, special caution must be taken that the pulling force is within the tolerance range (<50kg). Lay the cable in even speeds to avoid any impact or sudden stop.

5. When laying optical cables, make sure the speed is controlled not to exceed 20m/minute.
