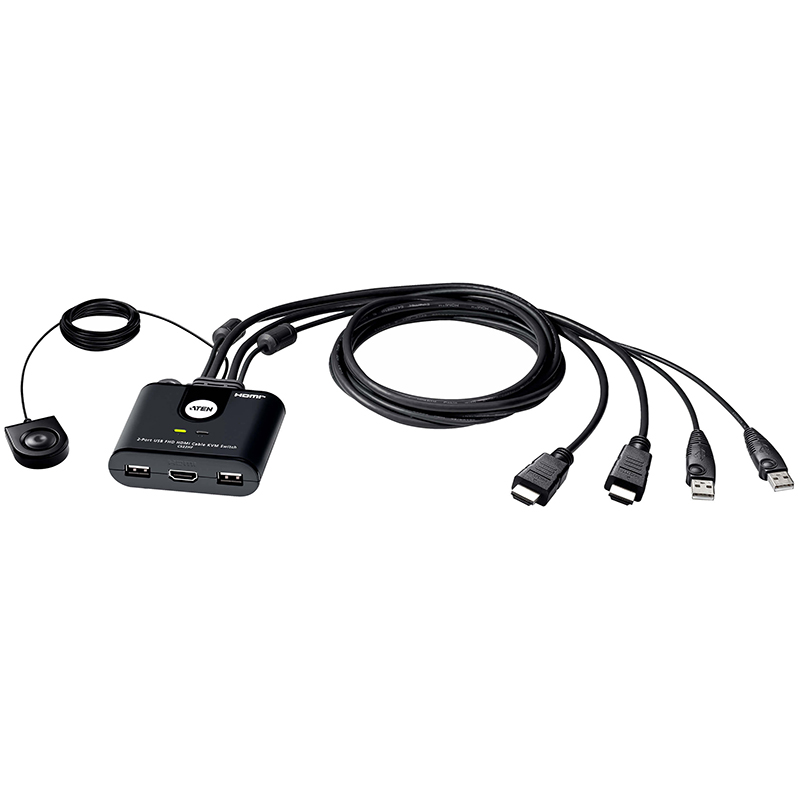

Aten 2-Port USB Full HD HDMI Cable KVM Switch (CS22HF-AT)
Compact HDMI KVM switch with 1 HDMI female console, 2 USB‑A female, 2 HDMI male KVM outputs, 2 USB‑A male. Supports 1920×1080/1200 @ 60 Hz, 2 green LEDs, 1.2 m PC cables, 1.8 m selector cable, DC 5 V 1.5 W.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
CONNECTORS
Console Ports
1 x HDMI Female 2 x USB Type A Female
KVM Ports
2 x HDMI Male 2 x USB Type A Male
LEDS
Selected
2 (Green)
CABLE LENGTH
Computer
2 x 1.2 m
Remote Port Selector
1.8 m
Video
1920 x 1080 @ 60 Hz; 1920 X 1200 @ 60Hz
Power Consumption
DC5V:1.518W:11BTU/h
Note: The measurement in Watts indicates the typical power consumption of the device with no external loading. The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
ENVIRONMENTAL
Operating Temperature
0-50°C
Storage Temperature
-20-60°C
Humidity
0-80% RH, Non-condensing
PHYSICAL PROPERTIES
Housing
Plastic
Weight
0.26 kg ( 0.57 lb )
Dimensions (L x W x H)
8.24 x 6.65 x 2.52 cm (3.24 x 2.62 x 0.99 in.)
Note: For some of products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Product Name:
Aten 2-Port USB Full HD HDMI Cable KVM Switch (CS22HF-AT)
