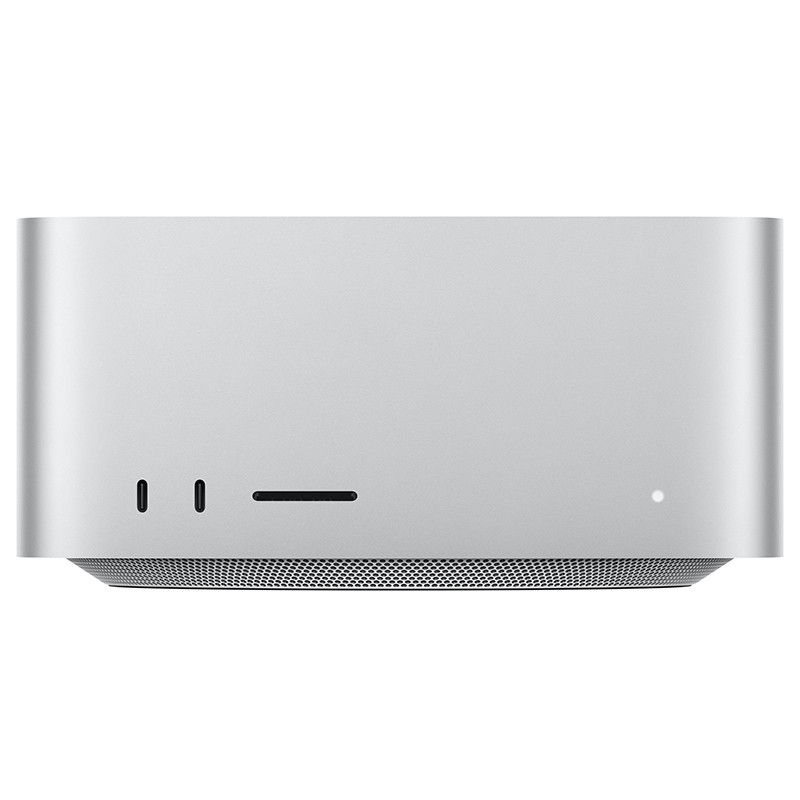

Apple Mac Studio M4 Max Chip 14-Core CPU 32-Core GPU 512GB SSD 36GB RAM macOS (MU963X/A)
Mac Studio powered by Apple M4 Max chip with 14‑core CPU, 32‑core GPU, 16‑core Neural Engine, 36 GB RAM, 512 GB SSD, hardware‑accelerated media engine, supports up to five 6K/8K displays via Thunderbolt 5 and HDMI, Wi‑Fi 6E, 10 Gb Ethernet.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Chip
Apple M4 Max chip
14-core CPU with 10 performance cores and four efficiency cores
32-core GPU
Hardware-accelerated ray tracing
16-core Neural Engine
410GB/s memory bandwidth
Media Engine
Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
Video decode engine
Two video encode engines
Two ProRes encode and decode engines
AV1 decode
Memory
36GB
Storage
512GB SSD
Display Support
M4 Max
Simultaneous support for up to five displays:
Up to four displays with 6K resolution at 60Hz over Thunderbolt and one display with 4K resolution at 144Hz over HDMI
Up to two displays with 6K resolution at 60Hz over Thunderbolt and one display with 8K resolution at 60Hz or 4K resolution at up to 240Hz over HDMI
Thunderbolt 5 digital video output
Support for native DisplayPort 2.1 output over USB‑C
HDMI display video output
Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz
Support for variable refresh rate (VRR), HDR and multichannel audio
Audio
Built-in speaker
3.5-mm headphone jack with advanced support for high-impedance headphones
HDMI port supports multichannel audio output
Communications
Wi-Fi
Wi-Fi 6E (802.11ax)
Bluetooth®
Bluetooth 5.3
Ethernet
10Gb Ethernet (NbaseT Ethernet with support for 1Gb, 2.5Gb, 5Gb and 10Gb Ethernet using RJ‑45 connector)
Size and Weight
Height: 9.5 cm (3.7 inches)
Width: 19.7 cm (7.7 inches)
Depth: 19.7 cm (7.7 inches)
Weight: 2.74 kg (6.1 pounds)
Electrical and Operating Requirements
Line voltage: 100–240V AC
Frequency: 50Hz to 60Hz, single phase
Maximum continuous power: 480W
Operating temperature: 10° to 35° C (50° to 95° F)
Storage temperature: –40° to 47° C (–40° to 116° F)
Relative humidity: 5% to 95% noncondensing
Operating altitude: Tested up to 5,000 metres (16,400 feet)
Operating System
macOS
In the Box
Mac Studio
Power cord
Product Name:
Apple Mac Studio M4 Max Chip 14-Core CPU 32-Core GPU 512GB SSD 36GB RAM macOS (MU963X/A)
