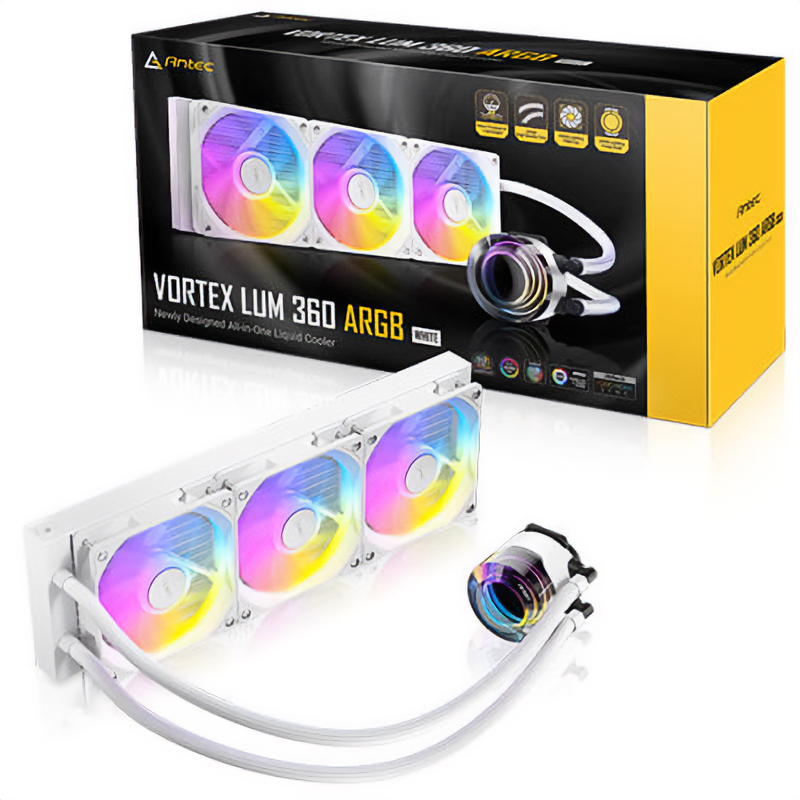

Antec Vortex Lum 360mm ARGB AIO Liquid CPU Cooler - White (Vortex Lum 360 ARGB White)
Compact 397×120×27 mm aluminum radiator with 12 V pump (Φ67 mm) delivering ≥1300 mL/min flow, 2800 RPM fan, 3 W power, ≤28 dB noise. 120 mm PWM hydraulic‑bearing fan with addressable RGB, 71.5 CFM, ≤31 dB. Supports Intel LGA115X‑20XX and AMD AM3‑TR4, up to 280 W TDP.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
RADIATOR
Radiator Dimensions
397 x 120 x 27 mm (L x W x H)
Radiator Material
Aluminum
PUMP
Dimensions
Φ67*48.5 mm
Rating Voltage
DC 12 V
Minimum Startup Voltage
≥5.0V
Fan Speed
2800±10% RPM
Rated Current
0.25±20% A
Consumed Power
3.0 W
Flow rate
≥1300 mL/min
Water Pressure
1.4 m
Operation Temperature
-10°C ~ +60°C
Noise Level
≤28 dB(A)
Lifespan
40,000 hours
Connector
PUMP: 3-pin | LED: 3-pin
FAN
Fan Type
PWM Fan
Dimensions
120*120*25 mm
Bearing Type
Hydraulic Bearing
LED Type
Addressable RGB
Fan Speed
800±200~1800±10% RPM
Airflow
71.5 CFM(max.)
Air Pressure
2.45 mmH₂O(max.)
Fan Noise Level
31 dB(A)
Lifespan
40,000 hours
Connector
PH 2.0 7-pin (PWM+ARGB)
Rated Voltage
FAN: DC 12 V | LED: DC 5 V
Operation Voltage
FAN: DC 10.8-13.2 V | LED: DC 4.5-5.5 V
Rated Current
FAN : 0.20-0.25 A | LED : 0.32 A
Socket Compatibility CPU
Intel: LGA 115X/1200/1700/20XX/1851
AMD: AM3/AM4/AM5/TR4
TDP
≤ 280W
Product Name:
Antec Vortex Lum 360mm ARGB AIO Liquid CPU Cooler - White (Vortex Lum 360 ARGB White)
