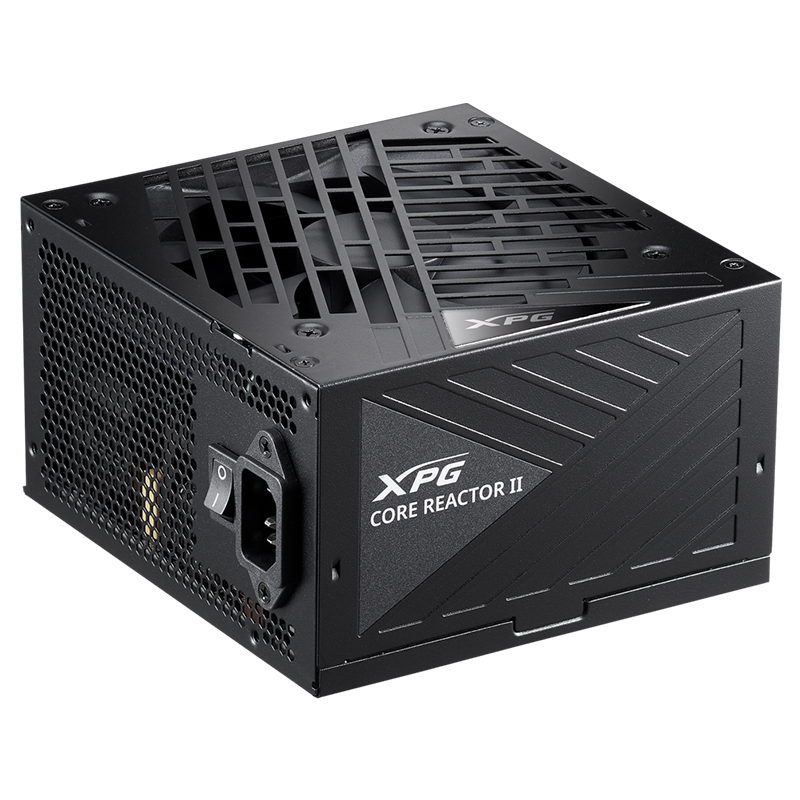

ADATA XPG 750W Core Reactor II 80+ Gold PCIe 5.0 ATX 3.1 Fully Modular Power Supply (COREREACTORII750G-BKCAU)

140×150×86 mm ATX 3.1 PSU, 80 Plus Gold, 1762 W power‑excursion, 22 A @5 V/3.3 V, 62.5 A @12 V, 120 mm FDB fan 2400 RPM, MTBF 100k h, OCP/OVP/OPP/OTP/UVP/SCP/NLO/SIP protections, full CE/FCC/TUV certifications.

or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time : Question Mark

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery: Question Mark

- +

Want a stock alert?

Please enter a valid email address

Your Store

Your store is set to:

Check live stock level

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Product Name:

ADATA XPG 750W Core Reactor II 80+ Gold PCIe 5.0 ATX 3.1 Fully Modular Power Supply (COREREACTORII750G-BKCAU)
Model Number:

COREREACTORII750G-BKCAU
Brand:

ADATA
Warranty Period:

10 Year

SPECIFICATIONS:

Dimensions (L x W x H)	140 x 150 x 86mm
80 Plus Rating	GOLD
ATX Version	ATX 3.1
Protections	OCP \| OVP \| OPP \| OTP \| UVP \| SCP \| NLO \| SIP
Certification	CE \| CB\| FCC(IC) \| TUV \| cTUVus \| TUV S-Mark \| NOM \| BSMI \| UKCA \| EAC \| CCC \| RCM
PFC	> 0.99
Input Voltage	100-240V
Input Current	10A
Input Frequency	47Hz–63Hz
DC Output Voltage	+5V \| +3.3V \| +12V \| -12V \| +5Vsb
Total Output	+5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A
Power Excursion	1762W (*up to 235% of the PSU's rated power for 100μs)
Operating Temperature	50°C
Fan Size	120mm FDB Fan
Fan Bearing	FDB (Fluid Dynamic Bearing)
Fan Speed	2400 RPM
MTBF	100K hours at full load
ATX 24 Pin Connector	1
EPS 8 Pin Connector	2
PCI-E 6+2 Pin Connector	6
Molex 4 Pin Connector	4
12V-2x6 / 12VHPWR (12+4) Connector (600W)	1
SATA Connector	8
Weight	Product+cables：1596g+1254g with Package:3.1kg
