CAMERA |
|
Image Sensor | 1/3” Progressive Scan CMOS Sensor |
Lens | Focal Length: 3.16mm ±5% Aperture: F1.6±5% Field of View: 116.7±3° (Diagonal), 99.7±3° (Horizontal), 53.8±3°(Vertical) |
Night Vision | 2 × 850 nm IR LEDs (32.8 ft / 10 m) Color Night Vision |
Lighting | 2 White Lights Motion Activated, App-Controlled |
Hub Compatibility | Compatible with H200 & H500 |
Interface & Button | 1× POWER Button 1× RESET Button 1× microSD Card Slot (Up to 512 GB) |
VIDEO & AUDIO |
|
Maximum Resolution | 1080P 2MP (1920×1080 px) |
Frame Rate | 15fps |
Video Compression | H.264 |
Live View | Yes |
Image Enhancement | 3D DNR WDR |
Audio Input & Output | Built-in Microphone and Speaker |
Audio Communication | Two-Way Audio |
Siren Volume | 70 dBA (Level measured at 3m distance) |
STORAGE |
|
Local Storage | microSD Card Slot on Camera (Up to 512 GB) * microSD card purchased separately. |
Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
DETECTION AND NOTIFICATIONS |
|
Sensor | Single Motion Sensor (FOV: 120° horizontal) |
AI Detection | Motion Detection Person Detection |
Activity Zones | Yes |
Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
NETWORK |
|
Network Connectivity | Connect via Wi-Fi |
Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
Ethernet Port | No |
RTSP | No |
ONVIF | No |
SECURITY |
|
Security | 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |
POWER |
|
Power Source | Solar Panel Built-in Rechargeable Lithium-ion Battery |
Input Voltage | Camera Input: 5.0 V, 1.0 A, Type-C Power (Adapter Not Included) |
GENERAL |
|
Smart Integration | Google Assistant, Amazon Alexa |
Weather Resistance | IP65 |
System Requirements | Tapo App: iOS 12.0 or higher, Android 7.0 or higher |
Mounting Options | Wall-Mounted |
Operating Temperature | -20℃ ~ 45℃ (-4 ℉ ~ 113 ℉ ) |
Storage Temperature | -40℃ ~ 60℃ (-40 ℉ ~ 140 ℉ ) |
Operating Humidity | 10%~90% RH, Non-condensing |
Storage Humidity | 5%~90% RH, Non-condensing |
Charging Temperature | 0℃ ~ 45℃ (32 ℉ ~ 113 ℉ ) |

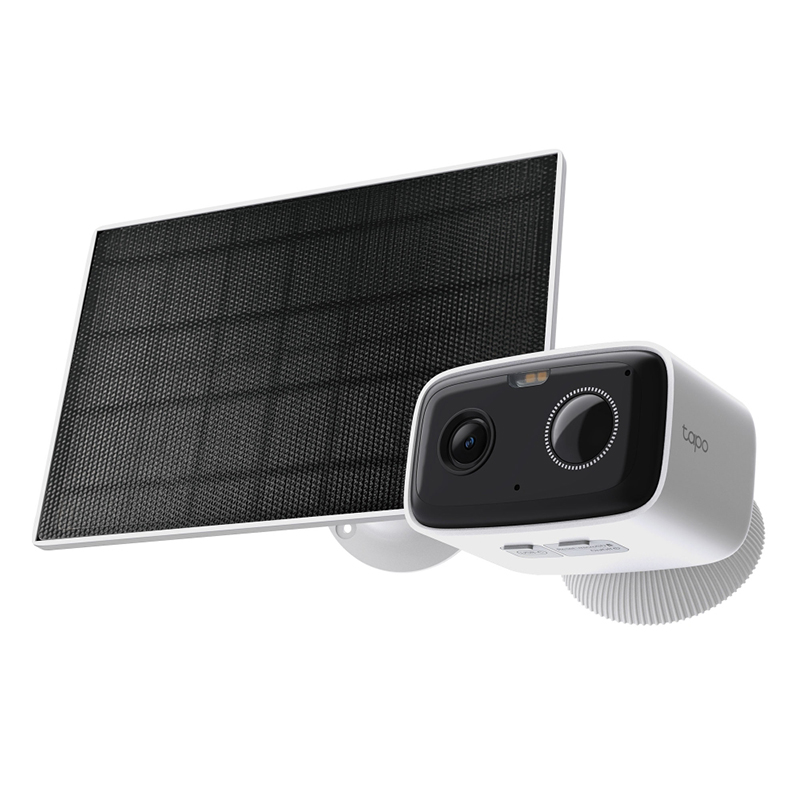

Package Content | TC80 Camera x1 Camera Bracket x1 Solar Panel x1 Solar Panel Bracket x1 USB Adapter Cable x1 Mounting Screws x5 Mounting Anchors x5 Mounting Template Stickers x3 Quick Start Guide |
Dimensions( W X D X H ) | 81 x 48 x 58.32 mm (3.19 x 1.89 x 2.3 in.) |
Certifications | CE, FCC, DOE, CEC, RCM, KC, NCC, BSMI, NTRA, IP65 |
