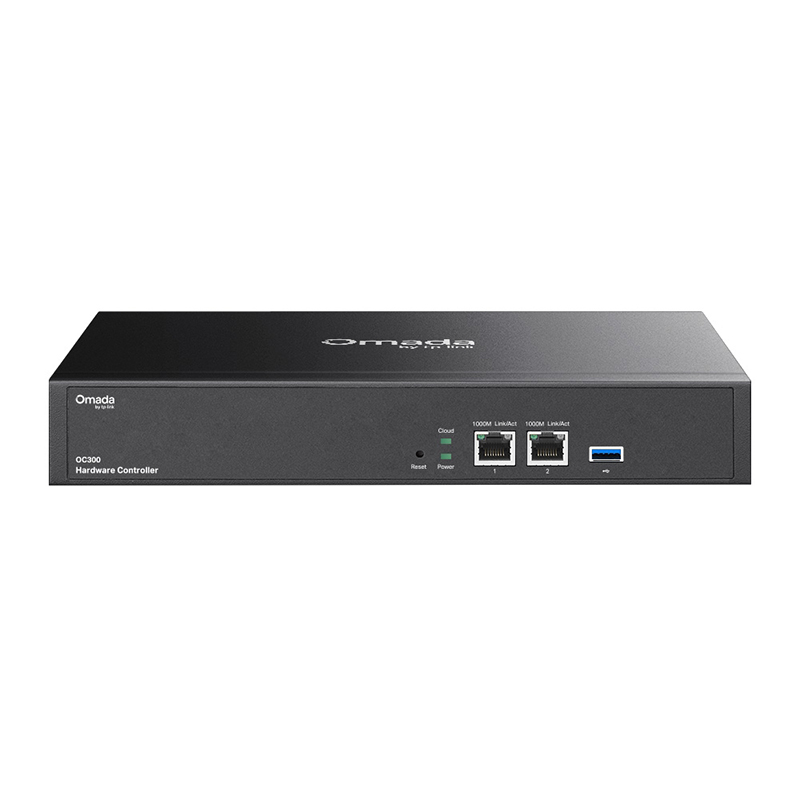

TP-Link Omada Hardware Controller - UN/1.20 (OC300 UN/1.20)

Interface

• 2× 10/100/1000 Mbps Ethernet Ports

• 1× USB 3.0 Port

Power Supply

100–240   V~50/60 Hz, 0.6 A

Dimensions ( W x D x H )

11.6   × 7.1 × 1.7 in (294 × 180 × 44 mm)

MANAGEMENT FEATURES

Omada App

Yes

Centralized Management

• 500 Omada access points

• 100 Omada gateways

• A maximum of 100 Omada switches*

• A maximum of 5 certain DeltaStream GPON OLTs*

Note: Please refer to www.tp-link.com/en/business-networking/all-omada/ to find all the Omada device models supported by OC300

*The number of supported Omada switches decreases by 5 for each DeltaStream GPON OLT added. Refer to https://www.omadanetworks.com/omada-sdn/product-list/#sp-gpon to find all the DeltaStream GPON OLTs that are supported by the controller.

Cloud Access

Yes

L3 Management

Yes

Multi-site Management

Yes

Management Features

• Automatic Device Discovery

• Batch Configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

• Captive Portal Configuration

OTHERS

Certification

CE, FCC, RoHS

Package Content

• Omada Hardware Controller OC300

• Quick Installation Guide

• Ethernet Cable

• Power Cord

• Rackmount Kit

System Requirements

Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux

Environment

• Operating Temperature: 0–50 ℃ (32–122 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
