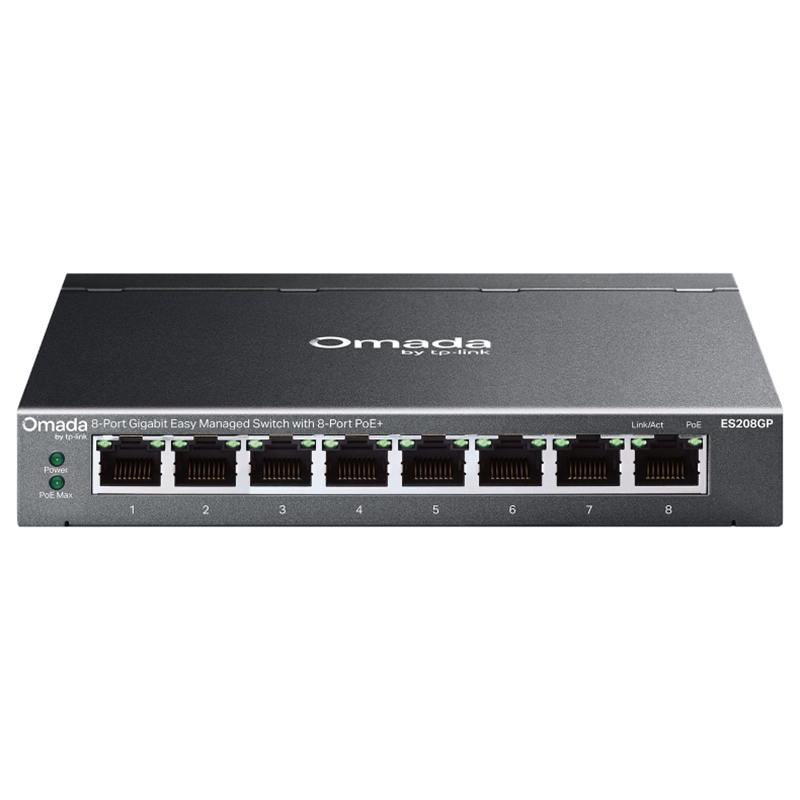

TP-Link Omada 8-Port Gigabit Easy Managed Switch with 8-Port PoE+ (ES208GP)

Interface

8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)

Fan Quantity

Fanless

Installation

• Desktop

• Wall Mount

Physical Security Lock

√

Power Supply

DC Power Adapter (Output: 53.5V DC / 1.31A)

PoE Ports (RJ45)

• Standard: 802.3af PoE and 802.3at PoE+ compliant

• PoE Ports: 8 ports

• PoE Budget: 64W available for all PoE+ ports, 30W max per port

• Remote Camera Reboot*

• Up to 820ft (250m) PoE transmission distance**

* These   functions require the use of the Omada Controller. Zero-Touch Provisioning   requires the use of Omada Central (Omada Central Standard or Omada Central   Essentials). Go to the Omada Central Standard Product List or Omada Central Essentials Product List to find all the supported models.

** When Extend Mode is enabled, the speed of ports that support 820ft (250m) PoE transmission will be downgraded to 10 Mbps. Actual transmission distance may vary depending on the quality of the cables.

Dimensions ( W x D x H )

6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm)

Surge Protection

Service port: ±6 kV

PERFORMANCE

Switching Capacity

16 Gbps

Packet Forwarding Rate

11.904 Mpps

MAC Address Table

8K

Packet Buffer Memory

4 Mbit

Jumbo Frame

15 KB

SOFTWARE FEATURES

Quality of Service

• 802.1p DSCP Priority

• 8 Priority Queues

• Priority Schedule Mode

- WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control

- Port-Based Rating Limit

• Storm Control

- Multiple Control Modes (kbps/pps)

- Broadcast/Multicast/Unknown-Unicast Control

L2 Features

• Link Aggregation

- Static Link Aggregation

- Up to 2 aggregation groups and up to 4 ports per group

• Loopback Detection

• Flow Control

- 802.3x Flow Control

• Mirroring

- Port Mirroring

- One-to-One

- Many-to-One

- Ingress/Egress/Both

• Port Statistics

- Port Mirror Status

- Traffic Statistics

• 802.1ab LLDP

L2 Multicast

• IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

VLAN

• MTU VLAN

• Port-Based VLAN

• 802.1Q Tag VLAN

- Max 32 VLAN Groups

- 4K VID

Transmission Method

Store and Forward

MANAGEMENT FEATURES

Omada App

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

• Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

Yes. Requires the use of Omada Cloud-Based Controller

Management Features

• Web-based GUI

• DHCP Client

• Cable Diagnostics

OTHERS

Certification

FCC, CE, RoHS

Package Content

• ES208GP

• Power Adapter

• Power Cord

• Installation Guide

• Rubber Feet

Environment

• Operating Temperature: 0℃~40℃ (32℉~104℉)

• Storage Temperature: -40℃~70℃ (-40℉~158℉)

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing
