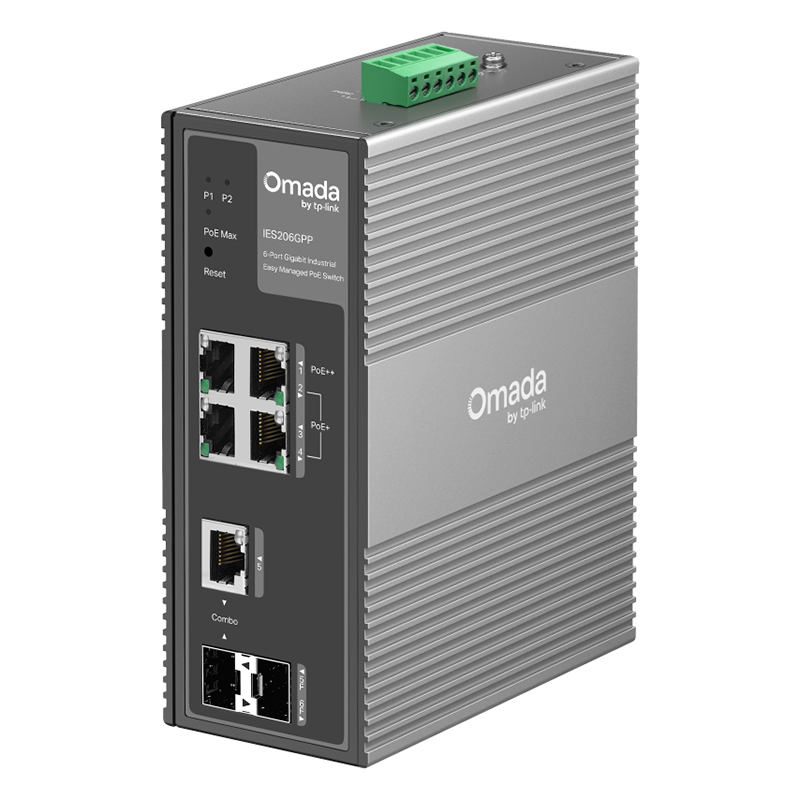

TP-Link Omada 6-Port Gigabit Industrial Easy Managed Switch with 3-Port PoE+ and 1-Port PoE++ (IES206GPP)

Interface

• 1× 10/100/1000 Mbps PoE++ RJ45 Ports

• 3× 10/100/1000 Mbps PoE+ RJ45 Ports

• 1× Gigabit SFP/RJ45 Combo Slot

• 1× Gigabit SFP Slot

• Auto-Negotiation/Auto MDI/MDIX

Fan Quantity

Fanless

Installation

• DIN-rail mounting

• Wall mounting

Physical Security Lock

√

Power Supply

12-57V 1+1 Redundant DC Power Input

PoE Ports (RJ45)

• Standard: 802.3af/at/bt compliant

• PoE++ Ports (802.3af/at/bt PoE): 1 Port, up to 60W per port

• PoE+ Ports (802.3af/at PoE): 3 Ports, up to 30W per port

• PoE Budget:

- 60W (Input: 12V / 7.0A - 21V / 3.5A))

- 120W (Input: 21V / 6.5A - 57V / 2.3A)

Dimensions ( W x D x H )

6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm)

Surge Protection

• ±6 kV in common mode for Ethernet ports

• ±4 kV in common mode for DC power input ports

PERFORMANCE

Switching Capacity

12 Gbps

Packet Forwarding Rate

8.93 Mpps

MAC Address Table

8K

Packet Buffer Memory

4 Mbit

Jumbo Frame

15 KB

SOFTWARE FEATURES

Quality of Service

• 802.1p DSCP Priority

• 8 Priority Queues

• Priority Schedule Mode

- WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control

- Port-Based Rate Limit

• Storm Control

- Multiple Control Modes (kbps/pps)

- Broadcast/Multicast/Unknown-Unicast Control

L2 Features

• Link Aggregation

- Static Link Aggregation

- Up to 2 aggregation groups and up to 4 ports per group

• Loopback Detection

• Flow Control

- 802.3x Flow Control

• Mirroring

- Port Mirroring

- One-to-One

- Many-to-One

- Ingress/Egress/Both

• Port Statistics

- Port Mirror Status

- Traffic Statistics

• 802.1ab LLDP

• Spanning Tree

- STP (802.1d)

- RSTP (802.1w)

L2 Multicast

• IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

VLAN

• MTU VLAN

• Port-Based VLAN

• 802.1Q Tag VLAN

- Max 32 VLAN Groups

- 4K VID

Transmission Method

Store-And-Forward

MANAGEMENT FEATURES

Omada App

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

• Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

Yes. Requires the use of Omada Cloud-Based Controller

Management Features

• Web-based GUI

• DHCP Client

• Cable Diagnostics

• Digital Diagnostic Monitoring (DDM)

• Automatic Device Discovery*

• Batch Configuration*

• Batch Firmware Upgrading*

• Unified Configuration*

* These functions require the use of the Omada Controller. Zero-Touch   Provisioning requires the use of the Omada Cloud-Based Controller (Omada   Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.

OTHERS

Certification

FCC, CE, RoHS

Package Content

• IES206GPP

• DIN-Rail Mounting Bracket

• Wall-Mounting Plates

• Installation Guide

Environment

• Operating Temperature: -40℃~75℃   (-40℉~167℉)

• Storage Temperature: -40℃~85℃   (-40℉~185℉)

• Operating Humidity: 5%~95% non-condensing

• Storage Humidity: 5%~95% non-condensing
