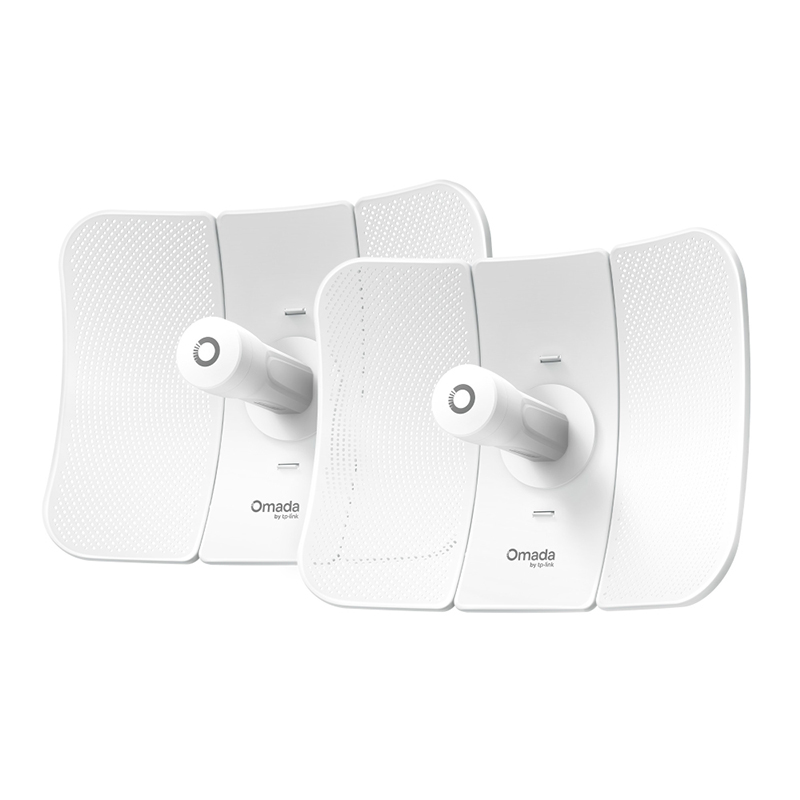

TP-Link Omada 5GHz 867Mbps Ultra-Range Indoor/Outdoor Wireless Bridge (Beam Bridge 5 UR KIT)

Interface

1 x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE In

Button

1 × Reset Button

1 × System Mode Selection Button

DIP Switch

Role Switch

Power Supply

802.3af PoE (1,2pins; 3,6pins)

24V or 48V Passive PoE (+4,5pins; -7,8pins) (Passive PoE Adapter Included)

Max. Power Consumption

15.8W

Dimensions ( W x D x H )

14.4 × 11.0 × 8.1 in (366 × 280 × 207 mm)

Antenna

External 2×2 Dual-Polarized Directional MIMO Antennas

5 GHz: 23 dBi

Antenna Beamwidth

Horizontal: 9°, Vertical: 7°

Weatherproof Enclosure

IP65

Bandwidth

5 GHz: 20 MHz/40 MHz/80 MHz

Mounting

Pole Mounting (Kits Included)

MANAGEMENT FEATURES

Omada App

Yes

Restore & Backup

Yes

Firmware update via Web

Yes

NTP

Yes

Centralized Management

• Omada Central (Cloud-Based)

• Omada Hardware Controller

• Omada Software Controller

Cloud Access

Yes. Require the use of an Omada Controller.

Email Alerts

Yes

LED ON/OFF Control

Yes

SNMP

Yes

SSH

Yes

Web-based Management

Yes

Zero-Touch Provisioning

Yes

WIRELESS FEATURES

PtP

Yes

Transmission Distance

15 km (9.3 mi)

Wireless Standards

IEEE 802.11 a/n/ac

Frequency

5 GHz

Signal Rate

5 GHz: Up to 867 Mbps

Wireless Functions

• MU-MIMO: 5G 2x2 MU-MIMO DL

• Maximum number of associated STAs: 8

• Speed Test

• Channel Optimization

• Antenna Alignment

• ACS (Automatic Channel Selection)

• Rate Limit

• Guest Network

Wireless Security

• VLAN

• Rogue AP Detection

• Maximum number of MAC Filter: 4,000

• Wireless Encryption

Transmission Power

• CE:

<23 dBm (5 GHz, U-NII-1/2A, ERIP)

<30 dBm (5 GHz, U-NII-1/2C, ERIP)

• FCC:

<27 dBm (5 GHz, U-NII-1)

<27 dBm (5 GHz, U-NII-3)

OTHERS

Certification

CE, FCC, RoHS

Package Content

• Beam Bridge 5 UR KIT

• Installation Guide

• Mounting Kit

• Passive PoE Adapter

• Power Cord

* The Beam Bridge 5 UR KIT main unit will be shipped in separate components, and user assembly is required.

Lightning Protection

Ethernet Ports: ±6 kV

Environment

• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Operating Humidity: 10%–90% non-condensing;

• Storage Humidity: 5%–90% non-condensing

Weight

1.1 kg (2.43 lb)
