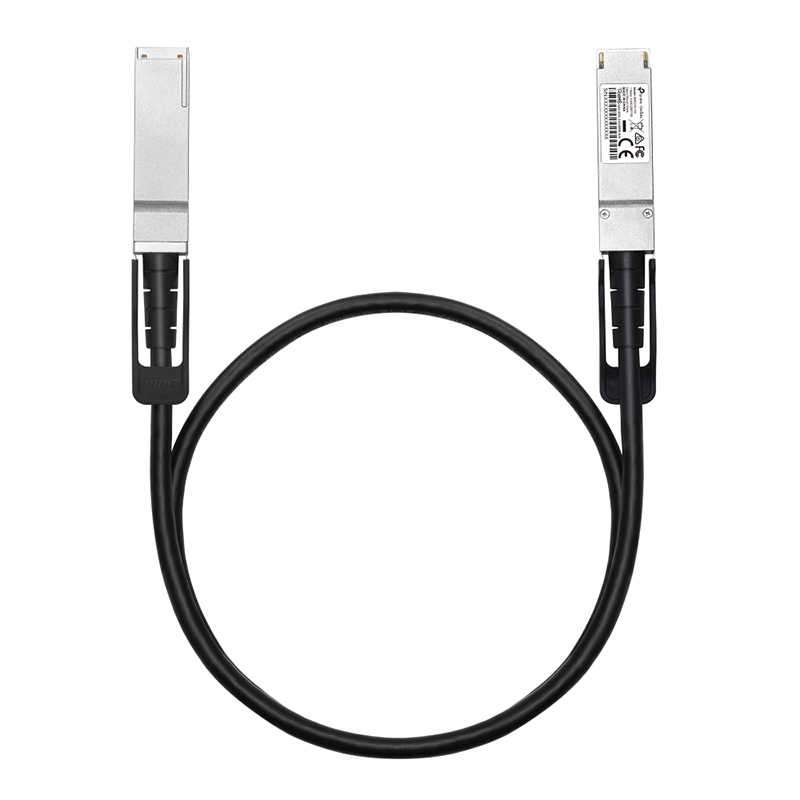

TP-Link Omada 100G QSFP28 Direct Attach Cable - 1m (SM9220-1M)

Passive 1 m QSFP28 Direct Attach Cable delivering 100 Gbps (or 40 Gbps) with silver‑plated copper 30 AWG, 33 mm min bend radius, operating 0‑70 °C, hot‑swappable for rack‑to‑rack connections.

TP-Link Omada 100G QSFP28 Direct Attach Cable - 1m (SM9220-1M)
  • Networking-Accessories-TP-Link-Omada-100G-QSFP28-Direct-Attach-Cable-1m-SM9220-1M-2
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

- +
Want a stock alert?

Please enter a valid email address

   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post In Stock
    NSW Pickup & Post
    • Post In Stock
    • Villawood Robot Super StoreIcon 3 1-2 Days
    SA Pickup & Post
    • Post In Stock
    • Croydon Robot Super StoreIcon 3 In Stock

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

TP-Link Omada 100G QSFP28 Direct Attach Cable - 1m
SM9220-1M is a passive Direct Attach Cable. With a passive Twinax cable assembly of 1 meter and two QSFP28 connectors on each side, SM9220-1M is suitable for short distance transmission of extreme-high speed data (100 Gbps) and offers a cost-effective way to connect within racks and across adjacent racks.

  • 100 Gbps data transmission

  • QSFP28 connector on both sides

  • Up to 1 m transmission distance

  • Wide operating temperature

  • Hot Swappable




SPECIFICATIONS:

GENERAL


Product Dimensions

• Plug: 2.85*0.72*0.53 in (72.45*18.35*13.50 mm);

• Overall length: 39.37 in (1,000 mm)

SFP28 CABLE


Environment

• Operating Temperature: 0–70 ℃ (32–158 ℉)

• Storage Temperature: -40–85 ℃ (-40–185 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Data Rate

100 Gbps / 40 Gbps

Conductor

Silver Plated Copper

Wire Gauge

30AWG

Min. Bend Radius

33 mm

Max. Cable Length

1 m




  • Product Name:
    TP-Link Omada 100G QSFP28 Direct Attach Cable - 1m (SM9220-1M)
  • Model Number:
    SM9220-1M
  • Brand:
    TP-Link TP-Link
  • Warranty Period:
    3 Year
