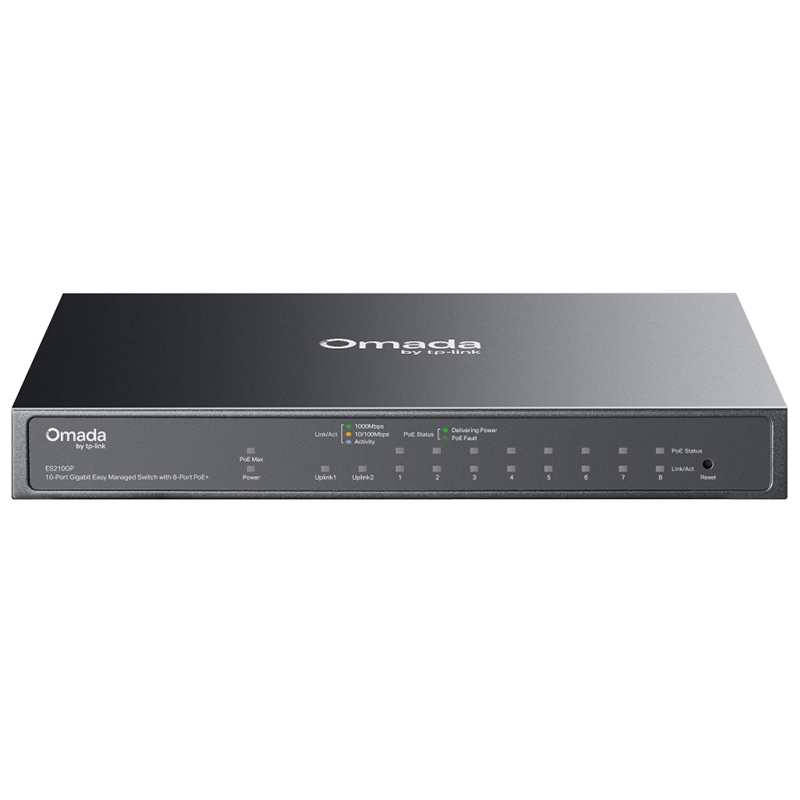

TP-Link Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+ (ES210GP)

Interface

• 8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)

• 1× 10/100/1000 Mbps RJ45 Port

• 1× Gigabit SFP/RJ45 Combo Port

• Auto-Negotiation/Auto MDI/MDIX

Fan Quantity

Fanless

Installation

• Desktop

• Wall Mount

Physical Security Lock

√

Power Supply

DC Power Adapter (Output: 53.5V DC / 1.31A)

PoE Ports (RJ45)

• Standard: 802.3af PoE and 802.3at PoE+ compliant

• PoE Ports: 8 ports

• PoE Budget: 63W available for all PoE+ ports, 30W max per port

• Remote Camera Reboot*

• Up to 820ft (250m) PoE transmission distance**

* These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of Omada Central (Omada Central Standard or Omada Central Essentials). Go to the Omada Central Standard Product List or Omada Central Essentials Product List to find all the supported models.

** When Extend Mode is enabled, the speed of ports that support 820ft (250m) PoE transmission will be downgraded to 10 Mbps. Actual transmission distance may vary depending on the quality of the cables.

Dimensions ( W x D x H )

8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

Surge Protection

±6kV

PERFORMANCE

Switching Capacity

20 Gbps

Packet Forwarding Rate

14.88 Mpps

MAC Address Table

8K

Packet Buffer Memory

4 Mbit

Jumbo Frame

15 KB

SOFTWARE FEATURES

Quality of Service

• Port-based/802.1p/DSCP QoS

• 8 Priority Queues

• Priority Schedule Mode

- WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control

- Port-Based Rating Limit

• Storm Control

- Multiple Control Modes (kbps/pps)

- Broadcast/Multicast/Unknown-Unicast Control*

* Omada Central can manage third-party cameras that support ONVIF Profile S, but they must be connected through a VIGI NVR.

L2 Features

• Static Link Aggregation

• Loop Prevention / Loopback Detection

• Flow Control

- 802.3x Flow Control

• Mirroring

- Port Mirroring

- One-to-One

- Many-to-One

- Ingress/Egress/Both

• Port Statistics

- Port Mirror Status

- Traffic Statistics

• 802.1ab LLDP

L2 Multicast

• IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

VLAN

• MTU VLAN

• Port-Based VLAN

• 802.1Q Tag VLAN

- Max 32 VLAN Groups

- 4K VID

Transmission Method

Store-And-Forward

MANAGEMENT FEATURES

Omada App

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

• Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

Yes. Requires the use of Omada Cloud-Based Controller

Management Features

• Web-based GUI

• DHCP Client

• Cable Diagnostics

• Automatic Device Discovery*

• Batch Configuration*

• Batch Firmware Upgrading*

• Unified Configuration*

* These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of Omada Central (Omada Central Standard or Omada Central Essentials). Go to the Omada Central Standard Product List or Omada Central Essentials Product List to find all the supported models.

OTHERS

Certification

FCC, CE, RoHS

Package Content

• ES210GP

• Power Adapter

• Power Cord

• Installation Guide

• Rubber Feet

Environment

• Operating Temperature: 0℃~40℃ (32℉~104℉)

• Storage Temperature: -40℃~70℃ (-40℉~158℉)

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing
