WIRELESS |
|
Standards and Protocols | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
WiFi Speeds | AX1500 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 300 Mbps (802.11n) |
WiFi Range | 1-2 Bedroom Houses (1-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 2× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
WiFi Capacity | High Dual-Band Distribute devices to different bands for optimal performance 2×2 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients 4 Streams More than enough bandwidth for connected devices |
Working Modes | Router Mode Access Point Mode |
SECURITY |
|
Network Security | SPI Firewall Access Control |
Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
WiFi Encryption | WPA-Personal WPA2-Personal WPA3-Personal |
HARDWARE |
|
Ethernet Ports | 2× Gigabit Ports *Per Deco Unit Supports WAN/LAN auto-sensing |
Buttons Reset | Button |
SOFTWARE |
|
Protocols | IPv4 IPv6 |
Parental Controls | Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service | QoS by Device |
Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding | Port Forwarding UPnP |
IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP | Address Reservation DHCP Client List Server |
DDNS | TP-Link |
Management Features | Deco App |
TEST DATA |
|
WiFi Transmission Power | CE: <20 dBm (2.4 GHz) <30 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) |
PHYSICAL |
|

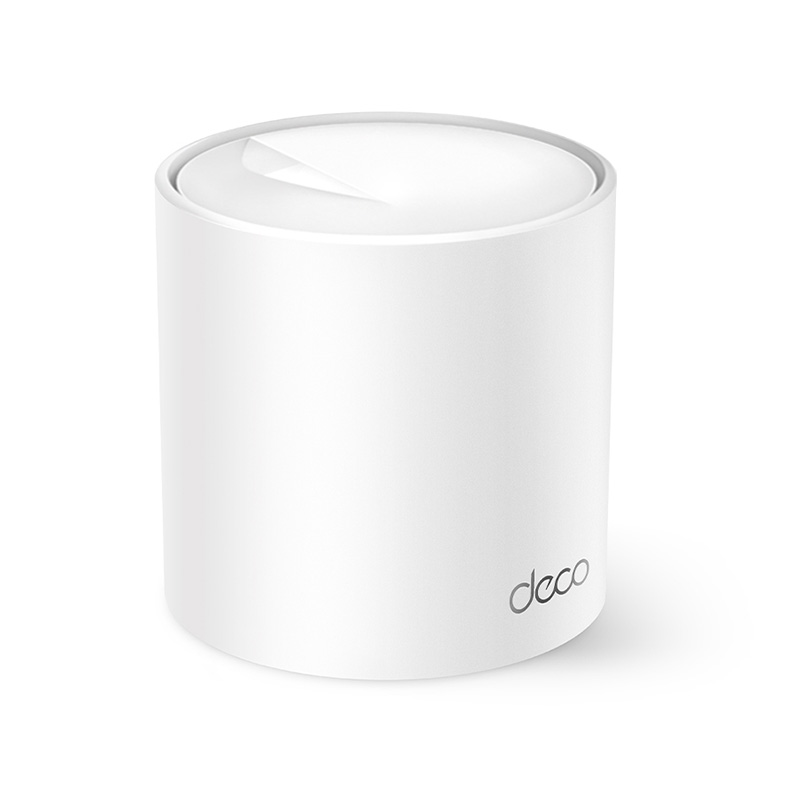

Dimensions (W×D×H) | 4.33 × 4.33 × 4.49 in (110 × 110 × 114 mm) |
Package Content | Deco X1500 (1-pack) 1 Deco X1500 Unit 1 RJ45 Ethernet Cable 1 Power Adapter Quick Installation Guide |
OTHERS |
|
System Requirements | Android 5.0 or later iOS 9.0 or later *Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information. |
Certifications | CE, FCC, RoHS, JPA, JRF, VCCI, NCC, BSMI |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~60℃ (-40℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
