HARDWARE FEATURES |
|
Interface | 1× 10G/2.5G Ethernet Port |
Button | Reset |
Power Supply | 802.3bt/at PoE or 12V/2.5A DC |
Max. Power Consumption | • 26.3 W (For PoE); • 22.4 W (For DC) |
Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.5 in (220 × 220 × 38.8 mm) |
Antenna | • 2.4 GHz: 2× 4.0 dBi • 5 GHz: 4× 5.0 dBi • 6 GHz: 2× 5.0 dBi |
Bluetooth | 1 × 5 dBi (peak gain), Internal antenna module *Firmware update may be required. |
Mounting | Ceiling / Wall/ Junction Box Mounting (Kits Included) |
WIRELESS FEATURES |
|
Coverage | 2050 ft² (190 m²)* *Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors. |
Concurrent Clients | 510+** **The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections. |
Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
Signal Rate | 688 Mbps (2.4 GHz) + 5765 Mbps (5 GHz) + 5765 Mbps (6 GHz)* *Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput and coverage are not guaranteed and will vary. |
Wireless Functions | • 320 MHz Bandwidth* • MLO* • 4K-QAM* • Multi-RUs* • Seamless Roaming(802.11k/v/r) • MU-MIMO* • Mesh** • BSS Coloring* • OFDMA* • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:24(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication *Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 240 MHz Bandwidth, 160 MHz Bandwidth, 6 GHz, 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features. **Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller. |
Wireless Security | • Captive Portal Authentication* • Access Control • Mac Filter • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise *Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller. |
Transmission Power | 6-20 dBm (2.4 GHz, EIRP) 9-23 dBm (5 GHz, U-NII-1 & U-NII-2A, EIRP) 9-30 dBm (5 GHz, U-NII-2C, EIRP) 6-23 dBm (6 GHz, EIRP) |
MANAGEMENT FEATURES |
|
Omada App | Yes |
Centralized Management | • Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller |
Cloud Access | Yes. Require the use of an Omada controller. |
Email Alerts | Yes |
LED ON/OFF Control | Yes |
Management MAC Access Control | Yes |
SNMP | v1, v2c, v3 |
System Logging Local/Remote Syslog | Yes |
Web-based Management | Yes |
OTHERS |
|
Certification | CE, FCC, RoHS, IC |

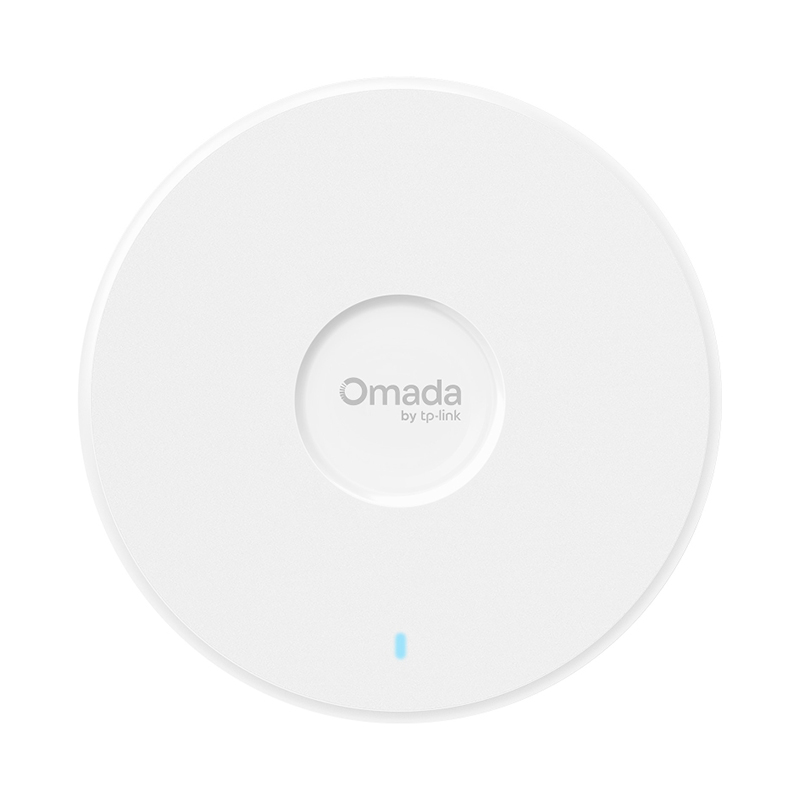

Package Content | • EAP787 • Installation Guide • Ceiling/Wall/Junction Box Mounting Kit
Note: Power Adapter is NOT included.
|
Environment | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing; |
