MANAGEMENT FEATURES |
|
Omada App | Yes |
Centralized Management | • Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller |
Cloud Access | Yes. Require the use of an Omada controller. |
Email Alerts | Yes |
LED ON/OFF Control | Yes |
Management MAC Access Control | Yes |
SNMP | v1, v2c, v3 |
System Logging Local/Remote Syslog | Local/Remote Syslog |
SSH | Yes |
Web-based Management | HTTP/HTTPS |
L3 Management | Yes |
Multi-site Management | Yes |
Management VLAN | Yes |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
HARDWARE FEATURES |
|
Interface | 1× Gigabit Ethernet Port |
Button | Reset |
Power Supply | V4: • 802.3af PoE • 48 V Passive PoE • 12 V/1 A DC (Power Adapter included) |
Max. Power Consumption | 10.9W (For PoE); 9.9W (For DC) |
Dimensions ( W x D x H ) | V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
Antenna | Internal Omni Antenna • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi |
Mounting | • Ceiling/Wall Mounting (Kits included) • Junction Box Mounting |
WIRELESS FEATURES |
|
Coverage | 115㎡(1250 ft²)*** * Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors. |
Concurrent Clients | 250+** ** The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections. |
Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | • 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps |
Wireless Functions | • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Seamless Roaming(802.11k/v/r)§ • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
Wireless Security | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
Transmission Power | • CE: 7-20 dBm(2.4 GHz, EIRP) 7-23 dBm(5 GHz, U-NII-1 & U-NII-2A, EIRP) ; 7-27 dBm (5 GHz U-NII-2C, EIRP) • FCC: 4-24 dBm (2.4 GHz) 4-24 dBm (5 GHz, U-NII-1 & U-NII-3) |
OTHERS |
|
Certification | CE, FCC, RoHS |

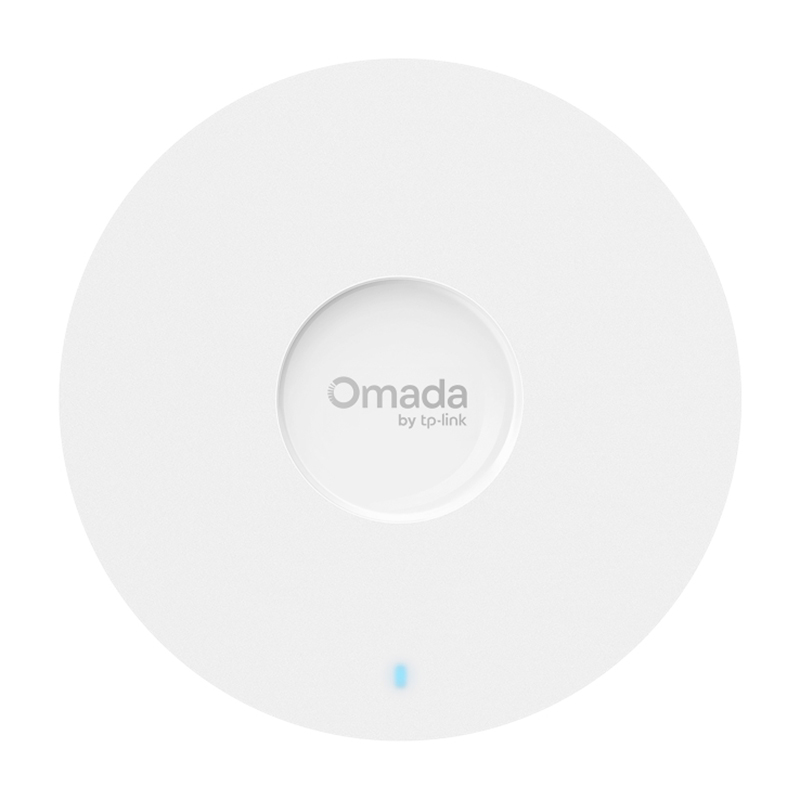

Package Content | • EAP610 • Power Adapter • Ceiling/Wall/Junction Box Mounting Kits • Installation Guide |
System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
