HARDWARE FEATURES |
INTERFACE | 3 10/100Mbps RJ45 LAN Ports
1 10/100/1000 RJ45 LAN/WAN Ports
1 RJ11 Port
1 USB 2.0 Port |
BUTTON | WPS Button
Wireless On/Off Button
Power On/Off Button
Reset Button |
POWER SUPPLY | 12V/1.5A |
IEEE STANDARDS | IEEE 802.3
IEEE 802.3u
802.3ab |
VDSL2 STANDARDS | ITU G.993.2, Up to 17a prole (POTS)
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP) |
ADSL STANDARDS | Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite),
ITU-T G.994.1 (G.hs),
ITU-T G.995.1 |
ADSL2 STANDARDS | ITU-T G.992.3 (G.DMT.bis),
ITU-T G.992.4 (G.lite.bis) |
ADSL2+ STANDARDS | ITU-T G.992.5 |
DIMENSIONS ( W X D X H ) | 243×160.6×32.5mm |
ANTENNA TYPE | 3 fixed external antennas |
COMPATIBILITY | NBN - Fibre to the Node (FTTN) - DSL Modem Router Mode.
NBN - Fibre to the Building (FTTB) - DSL Modem Router Mode.
NBN - Fibre to the Premises (FTTP) - Wireless Router Mode.
NBN - Fibre to the Home (FTTH) - Wireless Router Mode.
For further information on NBN connections please visit: http://www.nbnco.com.au/learn-about-the-nbn/network-technology.html |
WIRELESS FEATURES |
WIRELESS STANDARDS | IEEE 802.11a/n/ac 5GHz,
IEEE 802.11b/g/n 2.4GHz |
WIRELESS SPEEDS | 867Mbps at 5GHz
300Mbps at 2.4GHz |
TRANSMIT POWER | 2.4GHz <20dBm(EIRP)
5GHz <23dBm(EIRP) |
WIRELESS FUNCTIONS | Enable/Disable Wireless Radio, WDS Bridge, WMM,
Wireless Statistics |
WIRELESS SECURITY | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions, Wireless MAC Filtering |
WIRELESS SCHEDULE | Support 2.4GHz and 5GHz Wireless Schedule |
SOFTWARE FEATURES |
QUALITY OF SERVICE | ATM QoS, Bandwidth Control |
SECURITY | NAT Firewall, Access Control, IP and MAC Address Binding |
OPERATING MODES | VDSL/ADSL Modem Router, Wireless Router,3G/4G Router |
MANAGEMENT | Web Based Conguration(HTTP), Remote management,
command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware
Upgrade, Diagnostic Tools |
DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
PORT FORWARDING | Virtual Server, Port Triggering, DMZ, ALG, UPnP |
DYNAMIC DNS | DynDns, NO-IP |
VPN PASS-THROUGH | PPTP, L2TP, IPSec Passthrough |
PROTOCOLS | Supports IPv4 and IPv6 |
ATM/PPP PROTOCOLS | ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483
Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs |
ADVANCED FUNCTIONS | Parental Control, Network Address Translation(NAT),
Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay,
DDNS, IGMP V1/V2/V3 |
USB SHARING | Support Samba(Storage)/FTP Server/Media Server/Printer
Server, 3G/4G Modem |
GUEST NETWORK | 2.4GHz guest network, 5GHz guest network |
IPSEC VPN | Supports up to 10 IPSec VPN tunnels |
BEAMFORMING | 5GHz |
OTHERS |
CERTIFICATION | CE, RoHS |

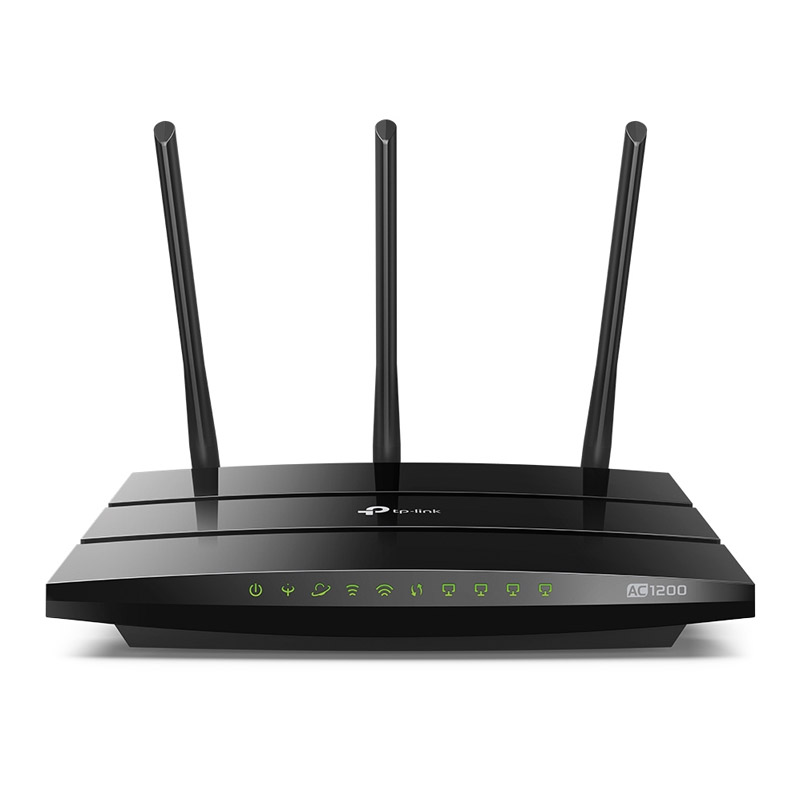

PACKAGE CONTENTS | · AC1200 Wireless VDSL/ADSL Modem Router Archer VR400
· External Splitter
· RJ11 DSL Cable
· RJ45 Ethernet Cable
· Power Adapter
· Quick Installation Guide |
SYSTEM REQUIREMENTS | · Microsoft Windows XP/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
· Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browser
· Subscription with an Internet Service Provider (for Internet access) |
ENVIRONMENT | · Operating Temperature: 0℃~40℃ (32℉ ~104℉)
· Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
· Operating Humidity: 10%~90% non-condensing
· Storage Humidity: 5%~90% non-condensing |
WARRANTY | Limited 3-Year Warranty
For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma |
