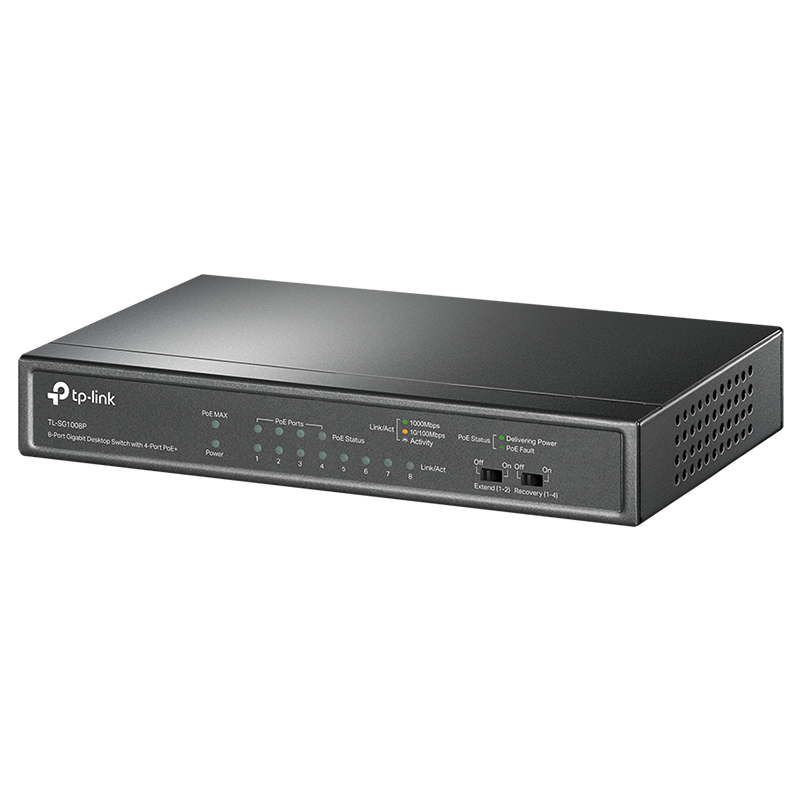

TP-Link 8 Port Gigabit Unmanaged Desktop Switch with 4-Port PoE+ - UN/7.0 (TL-SG1008P)

Interface

• 8× 10/100/1000 Mbps RJ45 Ports

• AUTO Negotiation

• AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

Fanless

Physical Security Lock

Yes

External Power Supply

External Power Adapter(Output: 53.5VDC / 1.31A)

Packet Forwarding Rate

11.904 Mpps

PoE Ports (RJ45)

• Standard: 802.3 af/at compliant

• PoE Ports: Ports 1–4

• Power Supply: 64 W

Mac Address Table

4K

Jumbo Frame

16 KB

Switching Capacity

16 Gbps

Dimensions ( W x D x H )

6.7×3.9×1.1 in (171×98×27 mm)

Max. Power Consumption

• 5.39 W (220/50 Hz no PD connected)

• 75 W (220/50 Hz with 64 W PD connected)

Max. Heat Dissipation

• 18.38 BTU/h (no PD connected)

• 225.75 BTU/h (with 64 W PD connected)

SOFTWARE FEATURES

Advanced Features

• Compatible With IEEE 802.3af/at Compliant PDs

• IGMP Snooping

• Mac Address Auto-Learning And Auto-Aging

• IEEE802.3x Flow Control

• 802.1p/DSCP QoS

Transmission Method

Store-And-Forward

OTHERS

Certification

CE, FCC, RoHS

Package Content

• TL-SG1008P

• Power Adapter

• Installation Guide

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉);

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
