SPECIFICATIONS:
HARDWARE FEATURES
Interface
• 5×10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
Fan Quantity
Fanless
External Power Supply
External Power Adapter(Output: 48VDC / 1.25A)
Packet Forwarding Rate
7.44 Mpps
PoE Ports (RJ45)
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 65 W
Mac Address Table
2K
Jumbo Frame
V5: 16 KB
V6: 9 KB
Switching Capacity
10 Gbps
Dimensions ( W x D x H )
3.9×3.9×1.0 in (99.8×98×25 mm)
Max. Power Consumption
V5:
• 3.44 W (220/50 Hz. no PD connected)
• 74.49 W (220/50 Hz. with 65 W PD connected)
V6:
• 74.88 W (220/50 Hz. with 65 W PD connected)
Max. Heat Dissipation
• 11.73 BTU/h (no PD connected)
• 254.01 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Advanced Features
• Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery (Ports 1-4)
Transmission Method
Store-And-Forward
OTHERS
Certification
FCC, CE, RoHS
Package Content

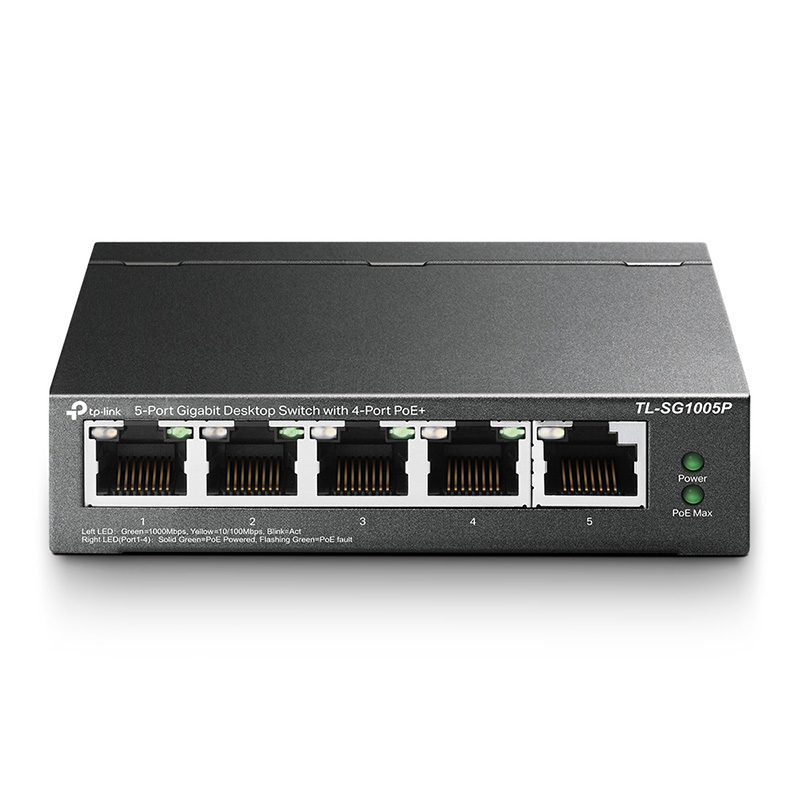

• TL-SG1005P
• Power Adapter
• Installation Guide
• Power Cord
• Rubber Feet
Environment
• Operating Temperature: -5–40 ℃ (23–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
