SPECIFICATIONS:
HARDWARE FEATURES
Interface
1× Fast Ethernet (RJ-45) Port (Support Passive PoE)
Button
Reset
Power Supply
24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included - For Dry Indoor Use Only)
Max. Power Consumption
3.12 W
Dimensions ( W x D x H )
1.8 × 1.1 × 8.5 in (46 × 26.7 × 214.9 mm)
Antenna
2× 3 dBi External Omni waterproof
Weatherproof Enclosure
IP65
Mounting
Pol / Wall Mounting (Kits included)
MANAGEMENT FEATURES
Omada App
Yes
Centralized Management
• Omada Hardware Controller
• Omada Software Controller
Cloud Access
Require the use of an Omada controller via web or app.
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP
v1, v2c
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Web-based Management
HTTP/HTTPS
L3 Management
Multi-site Management
Management VLAN
WIRELESS FEATURES
Concurrent Clients
100+**
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
Wireless Standards
IEEE 802.11n/g/b
Frequency
2.4 GHz
Signal Rate
• 11n: Up to 300 Mbps (dynamic)
• 11g: Up to 54 Mbps (dynamic)
• 11b: Up to 11 Mbps (dynamic)
Wireless Functions
• Multiple SSIDs（Up to 8 SSIDs）
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control （Adjust Transmit Power on dBm）
• Seamless Roaming(802.11r)
• QoS(WMM)
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Transmission Power
• CE: ≤20 dBm (EIRP)
• FCC: ≤22 dBm
OTHERS
Certification
CE, FCC, RoHS
Package Content

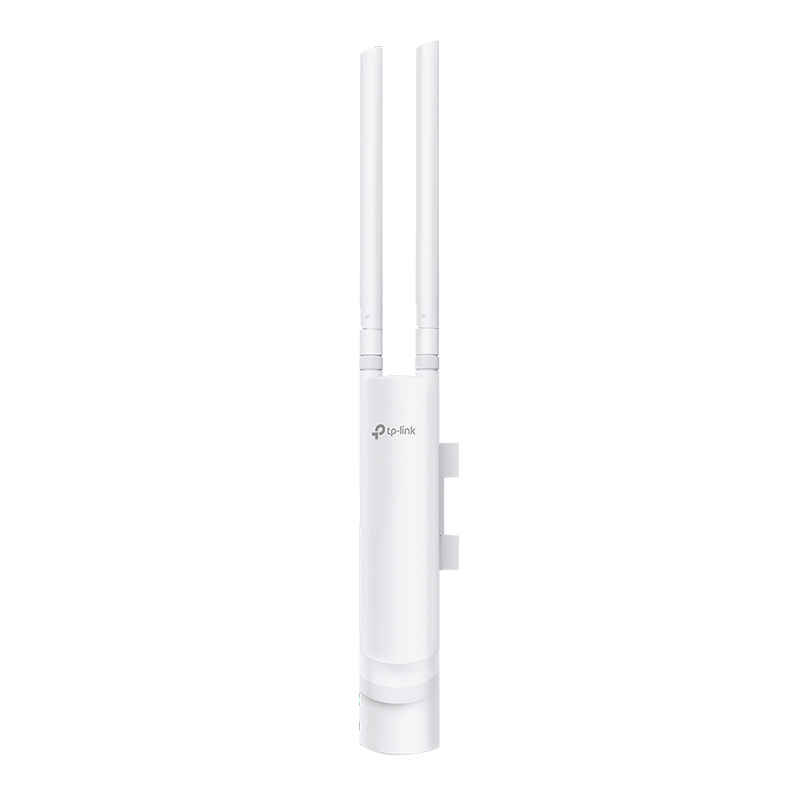

• 300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Waterproof Rubber Insert
• Waterproof Antennas
• Installation Guide
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
Environment
• Operating Temperature: -30–65 ℃ (-22–149 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
